AMM400 Portable Onsite Metallurgical Microscope
Introduction

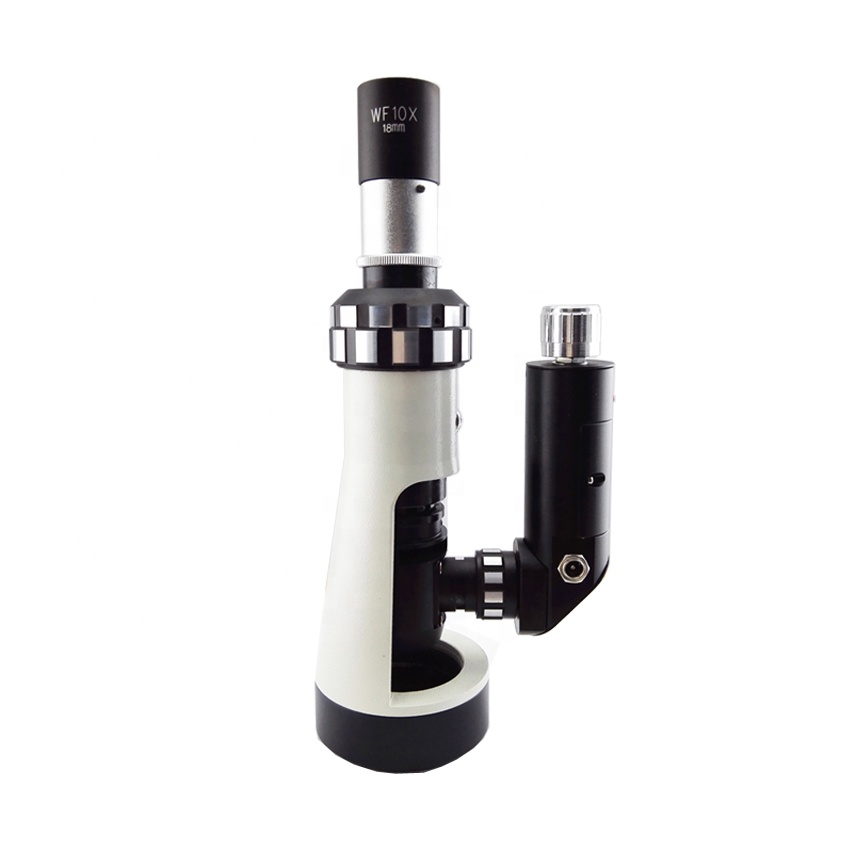

AMM400 is a Portable Handheld Metallurgical Microscope. It has a standard magnification range of 10X-400X. It comes with a handheld metallurgical microscope body, one piece of wide field eyepiece, two long working distance Plan Metallurgical objectives, one set of polarizing kits, built-in rechargeable LED illumination. It is an ideal microscope for viewing opaque or metallurgical specimens or larger specimens that cannot be sampled or inspected on a standard microscope stage.
Features
l Portable handheld design offering much inspection accessibility
l 100x-400x Microscope with Carrying Box
l Built-in rechargeable and adjustable LED illumination
l Magnetic base(Optional) for attaching to pipes, machinery, and other metal surfaces
Specification
|
Total Magnification |
100-400x |
|
Head |
Monocular |
|
Eyepiece |
WF10X |
|
LWD
Plan Objective |
PLL 10X PLL 40X |
|
Mechanical Tube Length |
160mm |
|
Focusing |
Coaxial coarse/fine focus system, range:36mm |
|
Light Source |
Coaxial illumination, build-in LED rechargeable, brightness adjustable |
Standard Delivery
|
No. |
Item |
Quantity |
|
1 |
AMM Microscope Main Unit |
1 |
|
2 |
10X Plan Objective |
1 |
|
3 |
40X Plan Objective |
1 |
|
4 |
WF10X Eyepiece |
1 |
|
5 |
LED Light |
1 |
|
6 |
Charger |
1 |
|
7 |
Manual |
1 |
|
8 |
Certificate |
1 |
|
9 |
Packing List |
1 |
