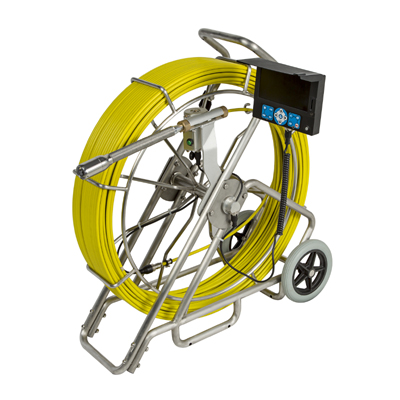

AJR NDT 70060/70080/70100/70120 Model Industrial Videoscope / Endscope / Borescope

Product Infomation
This Fibre Glass Probe Upgrade comes in either a 60m or 120m version and is supplied with its own wheeled reel for easy use. This upgraded probe also has the advantage of a self-levelling camera and metre counter to assist with producing accurate condition reports and surveys.These inspection cameras can reach and explore difficult spots in waste water systems, storm water systems, pipelines of different kind, drains, ducts and other hard-to-see areas.
  • Model:AJR NDT 70060/70080/70100/70120
  • Specifications:7 inch screen, 1/3 inch Sony CCD sensor
  • Color:Yellow
  • Brand:AJR NDT
Details

AJR NDT 70060 / 70080 / 700100 / 700120 Model Industrial Videoscope / Endscope / Borescope


Features

1. 38mm stainless steel robust camera head
2. Sony CCD sensor for high quality image
3. Built-in 512Hz Sonde (optional)
4. Self-leveling camera lens
5. Light weight
6. Two roller skids
7. 7" removeable monitor with DVR
8. Meter counter

Specifications

Camera Head

Sensor:

1/3" Sony CCD

Head Dimension:

38mm (dia.) ×81mm (Main Body)

Camera Material:

304# Stainless Steel

View Angle:

120°

Focal Distance

12-120 cm

Roller Skids

Mini roller skid dia 72mm

Universal roller skid dia 115-250mm

Camera head glass material

Sapphire glass

Leds

12 High Bright White LEDs

Water proof

Max 20m under water

With self-leveling

Cable Reel

Material

Fiberglass rod cable

Wheel

Stainless steel wheel

Cable Length

60, 80, 100m, 120m

Cable diameter

9 mm

LCD Display and DVR

Display

7 inch high definition color LCD monitor

Resolution

800*480 pixels R. G. B

Encoding

H. 264

Monitor Installation

On top or side of wheel by a universal bracket

Storage

SD Card slot to store still images or videos

Audio

Local audio recording

Language:

9 Languages: English, German, French, Spanish, Italian, Chinese, Japanese, Russian, Portuguese

Switch

One push button start

Power Supply

Built-in rechargeable Li-battery

Work Time

4-5 hours

Charge Time

6-7 hours

Date/ Time Display

On screen show

Meter counter

On screen meter and feet display



Packing List

No.

Item

Qty.

1

Camera Head

1

2

Cable and Wheel

1

3

Monitor

1

4

Mini Roller Skid

1

5

Universal Roller Skid

1

6

Wheel Extension Handle

1

7

Screw Driver

1

8

Remote Control

1

9

Power Supply Adapter

1

10

Car Charger

1

11

Hex Wrench

1

12

Tool Bag

1

13

Double Box Wrench

1
