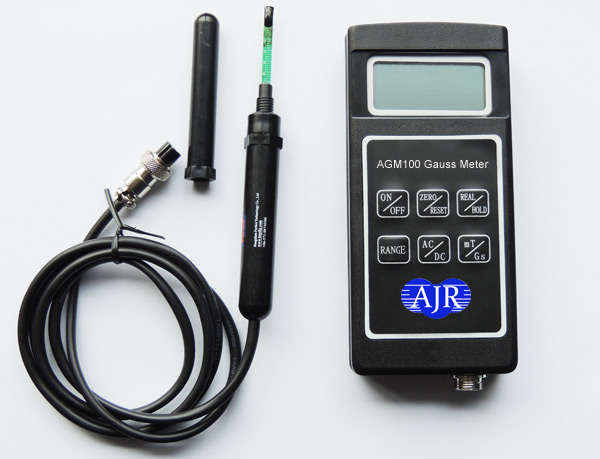

AJR AGM100 Digital Magnetic Field Strength Meter / Gauss Meter

Features

Ø 1 piece 9V dry-cell battery can continuously work for 20 hours.

Application

AGM100 handheld digital Gauss Meter can measure the work magnetic field for the Surface Magnetic Field of Permanent Magnet materials, DC Motors, Speakers, Magnetic Separator and Permanent Magnetic Separators.

High-precision Gauss Meter can be applied to detection of items residual magnetic when after machining, detection of the magnetic pole distribution and products remaining after the magnetic field demagnetization. And control the situation of electroplate with magnetic, detection of Magnetic properties for Motor, detection of Flux Leakage for Electromagnetic field.

Specification

Ø Measurement Range: 0~200mT~2000mT (1mT=10GS)

Ø Sensitivity: 0.01mT, 0.1mT

Ø Resolution: DC*1: 0.00~200.00mT - 0.01mT

                       DC*10: 0.0~2000.0mT - 0.1mT

                       AC*1: 0.00~200.00mT - 0.01mT

                       AC*10: 0.0~2000.0mT - 0.1mT

Ø Measured Magnetic Field: DC Magnetic Field / AC Magnetic Field (Static Magnetic Field / Dynamic Magnetic Field).

Ø Remark: The other function can be optional added on this machine according to customer actual application.

Function Description

Ø Peak Hold Function (Help customers to lock the highest value of magnetic field strength, convenience to record).

Ø GS/mT can automatically switch.

Ø DC measurements have N / S polarity display.

Ø Key-press rapid auto-zero (Function of RESET).

Ø Ambient Temperature: 5 degrees centigrade to 40 degrees centigrade.

Ø Relative Humidity; 20% to 80% (non-congealable dew).

Ø Power supply: One 9V battery Or 9V External Electric Supply.

Ø Overall dimension: 160mm*88mm*36mm.

Ø Instrument weight: 300g.

Ø Display: LED.

Ø Display unit: MT/GS.

Standard Accessories
