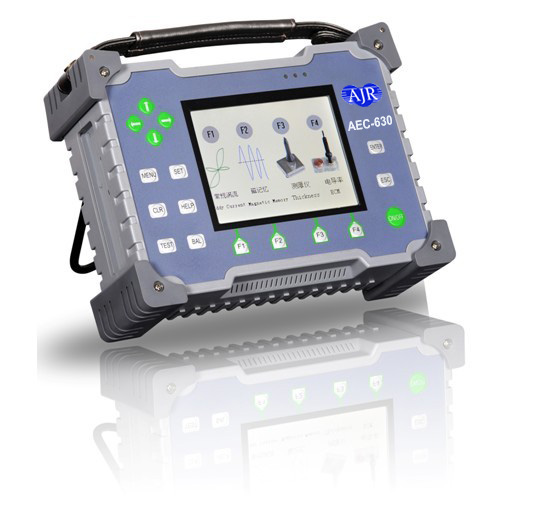

AEC630 Portable Eddy Current Flaw Detector

Product Infomation
AEC630 is AJR NDT electromagnetic product family adds a "forcing", using the world's most advanced DSP and FPGA integration technology greatly improve the signal processing speed, detection accuracy rate is 10 times that of similar products. AEC630 is suitable for almost all eddy current testing applications, but also effectively suppress interference signals, which not only has a conventional digital "dual" eddy current testing, also has a "magnetic memory, conductivity, thickness measurement" measurement functions, products widely used in military vulnerability assessment ( surface inspection blades, wheels, landing gear and other aircraft components); aircraft rivet holes or bolt holes in the surface crack detection hole without dismantling or removing fasteners state, the multilayer structure of the aircraft, and aluminum skin detection wing fuselage joints, the stress of the metal structure has a strong focus on early diagnosis function 。 AEC-620 Fool-style operation available., Without long time special training, we will be able to work posts. Special Note :Four functions required to configure different sensors support.
  • Model:AEC630
  • Specifications:Frequency Range:10 Hz~10 MHz; Gain range: 0~90 dB
  • Color:Blue
  • Brand:AJR NDT
Details

AJR NDT AEC630 Portable Eddy Current Flaw Detector

Product Description

AEC630  is AJR NDT electromagnetic product family adds a "forcing", using the world's most advanced DSP and FPGA integration technology greatly improve the signal processing speed, detection accuracy rate is 10 times that of similar products.

Suitable for almost all eddy current testing applications, but also effectively suppress interference signals, which not only has a conventional digital "dual" eddy current testing, also has a "magnetic memory, conductivity, thickness measurement" measurement functions, products widely used in military vulnerability assessment ( surface inspection blades, wheels, landing gear and other aircraft components); aircraft rivet holes or bolt holes in the surface crack detection hole without dismantling or removing fasteners state, the multilayer structure of the aircraft, and aluminum skin detection wing fuselage joints, the stress of the metal structure has a strong focus on early diagnosis function.

AEC630 Fool-style operation available. Without long time special training, we will be able to work posts.

Special Note: Four functions required to configure different sensors support.

Application

Used in aerospace, aviation, special, higher education, metal parts, pipes, construction, weld, metal parts and other testing.

Technical Parameters

Eddy Current Testing Specifications:

l         Large screen, high brightness 5.7-inch color TFT-LCD, to solve the shortcomings of traditional screen

l         Independent Detection Frequency:2 in total

l         Frequency Range:10 Hz~10 MHz,Step 1 Hz

l         Gain:0 dB~99 dB,Step 0.1 dB

l         Phase:0~359°,Step 1 Deg, flexible phase rotation

l         Intelligent Mixing Unit: 1 in total

l         Lift-off height: 1--3mm, no need to hide the surface layer processing

l         Automatic Balance: Digital Electronic Balance

l         Phase / non-amplitude, box and fan boxes, alarm mode to meet customer testing needs

l         Probe Driver: Vpp=1~8V,meet different probe structures, multi-function

l         Independent X and Y gain adjustment

l         Digital Filtering: HPF(0Hz~2000Hz), LPF(0Hz~2000Hz)

l         Capacity USB 2.0 (Host) output connection

l         Real-time signal preservation, playback, analysis, save and print: 8G/24Hour

l         Center coordinates: X Y adjustable

l         Operating System: liunx 2.6   Operation Language: English/Chinese

l         Display Mode: Impedance, time base, rectangular coordinates, polar coordinates

l         Power Supply: 110V~220V, built-in rechargeable lithium battery 8000MAH

l         Online hotkey graphics, text help

l         Operating Temperature: -20° ~ 60°C

l         Standard system: Cartesian coordinates, polar coordinates

l         L X W X H:250 MMx200 MMx 85 MM

l         Weight: 2.0KG

Magnetic Memory Diagnostic Specifications:

l         Of Principle and a new method of diagnosis (21 century's most important detection method) --- MMM

l         Based on magnetic memory utilization due to the work load caused by stress concentration area of metal

l         This method belongs to the rapid detection method does not require the clean metal surface

l         Be having a stress concentration area of the test object and the most dangerous part of the work, so that "early" diagnosis and early warning, improve work efficiency and safety

l         Show mechanical stress concentration area - the main source of damage arising

l         Determination of stress concentration specific defect exists, and to assess their degree of danger

l         From horizontal metal structure began to measure the position of the future development of cracks, size and direction

l         The actual life assessment device

l         The measurement results using a computer to process information, and made with a special method and its corresponding systematic program to develop preventive measures to ensure the safe operation of the part being inspected

l         Especially suitable for nuclear energy, electric power, petrochemical, aerospace, aviation and other sectors in the testing and stress testing and testing-service ferromagnetic metal parts of various pipelines, analysis and evaluation. Also used in boilers, petrochemical, pipeline pressure vessels, storage equipment testing

l         Measuring range: -500GT---+500GT

l         Detection speed: 0.5-1m/s

l         Lift-off height: 150mm

l         Minimum step: 1mm

l         Gain: 0 dB99 dB, wide gain adjustment, increase the resolution

l         Display: waveforms, numeric, so you at a glance;

l         DSP digital filters: high-pass, low-pass frequency (0Hz ~ 2000Hz)

l         Fast digital electronic balance

l         Automatically clear impact "of the geomagnetic field

l         Alarm settings: Each channel independent non-amplitude size settings

l         Alarm sound: On / Off

l         100 group testing process parameter storage

l         10000 graphics storage, graphics can be saved as the U disk

Coating thickness measurement technical data:

l         Testing method: eddy current method

l         matrix: iron, non-ferrous

l         conductivity test range: 0—1500μm 0—59.04mil

l         display units: um mil convertible

l         resolution 1um

l         accuracy   ±1um

l        data memory: the measurement data can be stored for more than 1000

Conductivity measurement technical data

l         Testing method: eddy current method

l         Conductivity testing range: 0.5%IACS—110.0 % IACS (0.28-64.0Ms/m)

l         Display Unit : %IACS/MS/M both available

l         Resolution: 0.1%IACS

l         List-off effect: Probe comp 0.004”(100um)

l         Accuracy: ±1%IACS

l         Temperature: Built-in probe sensor with auto-compensation function

l         RAM: Above 10000 set of testing data could be saved

l         Result could be auto-corrected to the value of 20°

Additional features

l         Scalable magnetic flux leakage inspection capabilities with eight channels;

l         Scalable Array Eddy Current Testing;

l        Scalable C-scan Eddy Current Testing.

Standard Configuration

No.

Item

Qty.

Mark

1

AEC-630 Main Machine

1



2

Probe

1

customized according to user-specific probes and structures different inspection requirements

College Standard: Print the probe through the probe, conductivity probe, thickness measuring probe, a magnetic memory probe

3

Probe cable

1



4

Charger:

1



5

Battery

1



6

Test block



Optional

7

Instructions

1



8

Warranty Card

1



9

Product List

1
