AFM300 Ferrite Content Meter

Product Infomation
In the chemical industry, the stress-bearing members of containers,pipes,reactor vessels and other plant are usually made of austenitic steel or duplex steel or cladding of austenitic chromium-nickel steel.The residual ferrite content must be within a specific range compatible with the mechanical strength requirements or the item concerned.The AFM-300 was developed to facilitate accurate ferrite content measurement on welded seams and cladding items. It gives results that match for the standards of GB/T1954-2008, ISO 8249 and ANSI/AWS A4.2.
  • Model:AFM300
  • Specifications:0.1~80% Fe , (0.1~110) WRC-number
  • Color:Black
  • Brand:AJR NDT
Details

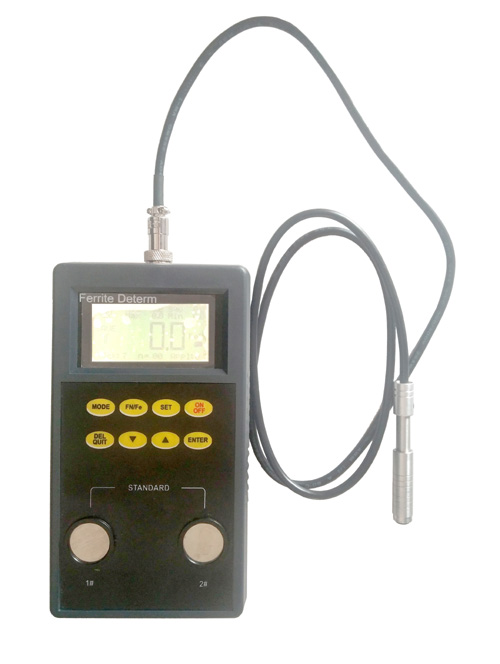

Ferrite Meter / Ferrite Gauge AFM-300

In the chemical industry, the stress-bearing members of containers,pipes,reactor vessels and other plant are usually made of austenitic steel or duplex steel or cladding of austenitic chromium-nickel steel.The residual ferrite content must be within a specific range compatible with the mechanical strength requirements or the item concerned.The AFM-300 was developed to facilitate accurate ferrite content measurement on welded seams and cladding items. It gives results that match for the standards of GB/T1954-2008, ISO 8249 and ANSI/AWS A4.2.

Feature

● LCD-display,

● Two display modes (SAVE and FREE).

● Two units — Fe% and FN (WRC number).

● Statistics display together with measurements.

● Built-in Rs-232 interface for printer(Optional)

Technical data

The meter is mainly used for the determination of the ferrite content of welded austenitic steel or Duplex or cladding of austenitic chromium-nickel steel weld.

Model

AFM-300

Range

0.1~80% Fe ,

(0.1~110) WRC-number

Precision

±2% (range: 0.1~30%Fe),

±3% (range: 30~80% Fe)

Operating Temperature

5 ~40℃

Batteries

9v6F22

Dimension

175X100X38mm

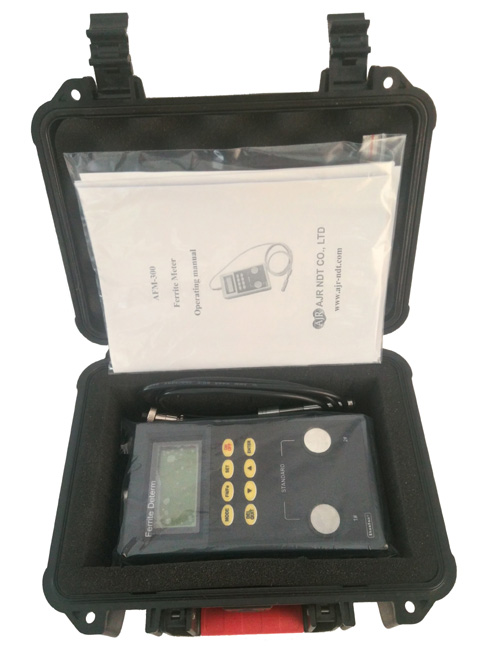

Standard Accessories:

No.

Item

Qty.

1

Main Machine

1

2

Standard Probe

1

3

Test Block

2

4

Carrying Case

1

5

Operation Manual

1

6

Product Certificate

1

7

Warranty Card

1

8

Packing List

1
