​AJD480 Black White Densitometer

Product Infomation
The densitometer developed by our company, is a product of high quality with computer high technology assisted and THE FIRST ADOPTED CALIBRATION FUNCTION DOMESTICALLY. The accurate readings, high stability and easy operation are the main characteristics of our product. It can be widely applied to the fields such as nondestructive testing, publishing industry and medical science etc. Every densitometer is equipped with a density tablet for testing its precision.
  • Model:AJR AJD480
  • Specifications:D=0.00—5.00
  • Color:Silver
  • Brand:AJR
Details

AJR AJD480 Black-White Densitometer

Introduction

The AJD480 portable black-and-white film densitometer adopts the most innovative programmable optical frequency sensor (made in the USA TAOS sensor). High intensity LED film viewer with variable brightness is recommended to measure radiographic density of the film. Instrument's calibration can be performed by end-user. AJD480 portable black-and-white film densitometer is the most advanced, precise and reliable densitometer on the market. It is a robust, easy to use, separate probe type densitometer for measuring the transmission density of x-ray film. AJD480 densitometer can be used in one-site mobile darkrooms, laboratories and offices.

Features

Ø Separate probe type densitometer

Ø Easy to test

Ø Separate probe type densitometer

Ø Easy to test

Ø 4 digit LCD

Ø User can adjust measured value of film density

Ø No warm up time

Ø Zero calibration with probe

Ø Probe temperature compensation

Ø User can look up previous 32 density measurements

Ø Battery volume indicator

Ø Smart power management

Ø Rechargeable lithium battery supply power

Ø Extra optional support can make probe touch film vertically and ensure the test more accurate

Specification

Measuring Range

0.00-5.00 D

Measurement Accuracy

±0.02 D

Resolution

0.01 D

Probe Temperature Compensation

Calibration Scope

Arbitrary value

Visual Display

 4-bit LCD

Optical Frequency Sensor

USA TAOS sensor

Optical Aperture

3mm diameter

Power Supply

Built-in 2000mA lithium battery

Power Interface

MICRO USB interface;

Power Adapter

DC5V / 1000mA (100-240VAC)

Dimension

141 x 76 x 28 mm

Weight

222 g

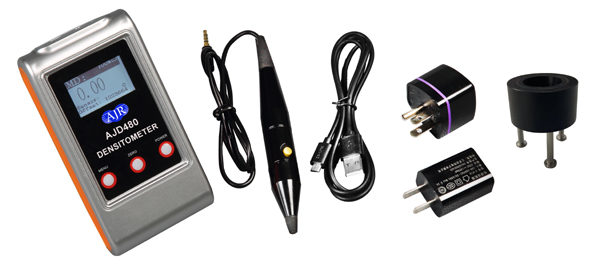

Configuration


No.

Item

Qty.

Standard

1

AJD480 Main Unit

1

2

Probe with Cable

1

3

Power Adapter

1

4

Micro USB Cable

1

5

Packing List

1

6

Calibration Certificate

1

7

Manual

1

8

Carry Box

1

Optional

9

Vertical Support Stand

1

10

Density Strip (with certificate)

1
