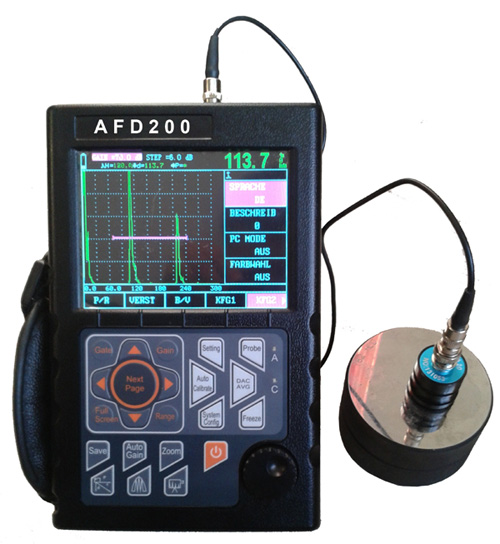

AFD200 Digital Type Ultrasonic Flaw Detector

Features

Automated calibration、Automated gain

DAC、AVG、TCG、B scan、AWS

High-speed capture and very low noise

High contrast viewing of the waveform from bright

Powerful pc software and reports can be export to excel

Function

l          Automated display precise flaw location(Depth d、level p、distance s、amplitude、sz dB、ф)；

l          Automated switch three staff gauge ((Depth d、level  p、distance s)；

l          Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity ；

l          Convenient to make and use DAC\TCG and AVG to evaluate the echo, the curve can be modified and compensated

l          6dB DAC functions;

l          500 independence setup, any criterion can be input freely, we can work in the scene without test block；

l          Big memory of1000 Agraph

l          Automated gain and gain scan;

l          Peak Hold and Peak Memory；

l          B scan;

l          AWS D1.1

l          Automated make video of test process and play; use upan，the length of video is unlimited.

l          Powerful pc software and reports can be export to excel;

l          Li battery, continue working time up to 12 hours;

l          The embeded software can be online updated；

Other assistant function

l          Display freeze;

l          Automated echo degree;

l          Angles and K-value;

l          Lock and unlock function of system parameters;

l          Electronic clock calendar ;

l          Two gates setting and alarm indication;

l          Gate and DAC alarm;

Specifications

Measuring Range (mm):  0 ～  10000

Channels: 500

Frequency Range (MHz)：0.5 ～  15

Material Velocity (m/s): 1000 ～  15000

Vertical Linearity Error: ≤3%

Horizontal Linearity Error: ≤0.1%

Sensitivity Leavings: ≥62dB

Dynamic range: ≥32dB

Resolving Power: ≥36dB

Gain (dB): 0 ～  120

Measurement Mode: Single、Dual、Thru

Reject: 0~80%

Pulse Displacement (μs): -20 ～  +3400

Zero (μs): 0.0 ～  99.99

Port Type: BNC(Q9) or Lemo 01(C9)

Operating Temperature  (℃): -20～50

H×W×D(mm): 240×156×48

Weight (kg)：1.0（with battery）
