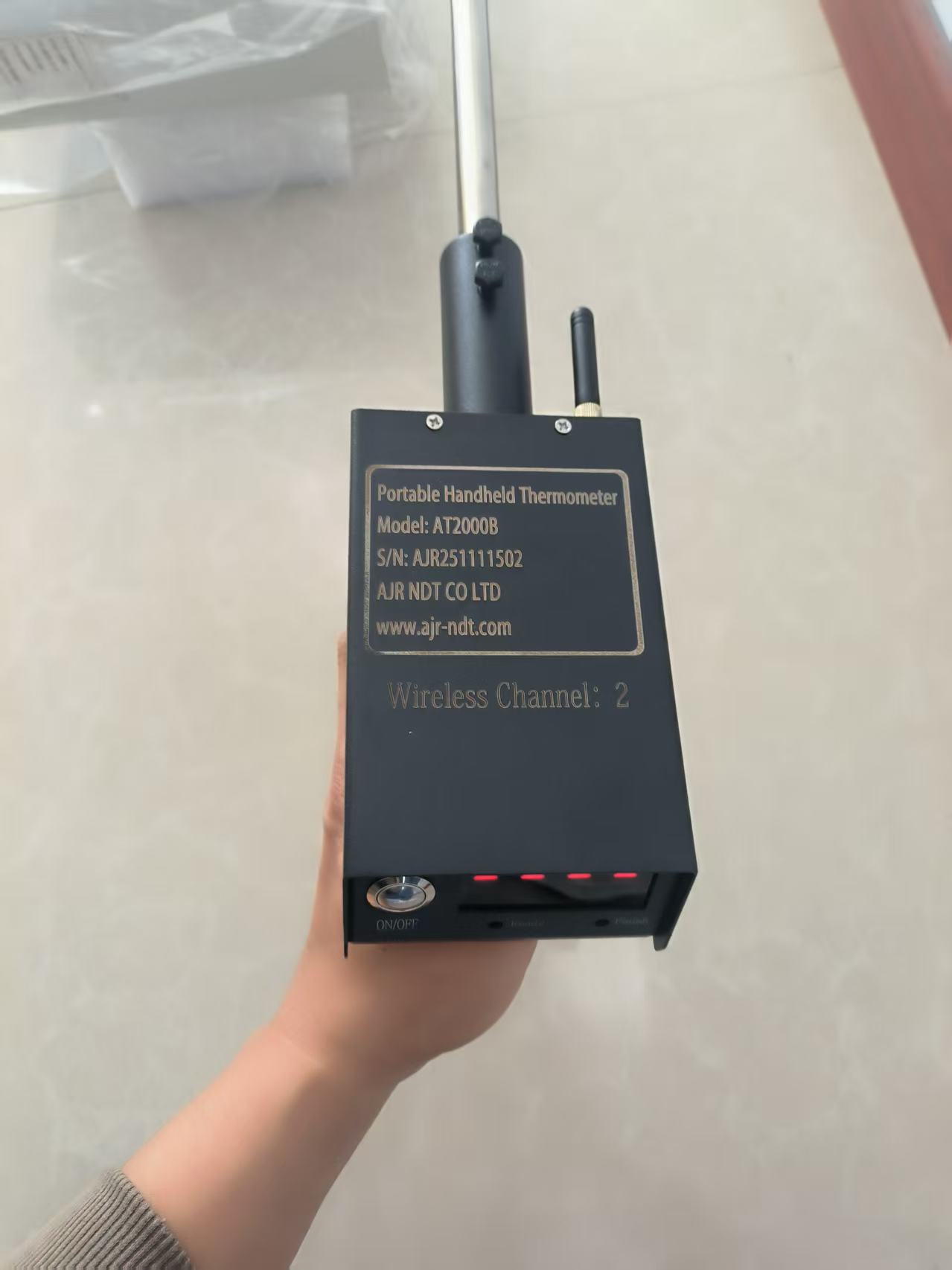

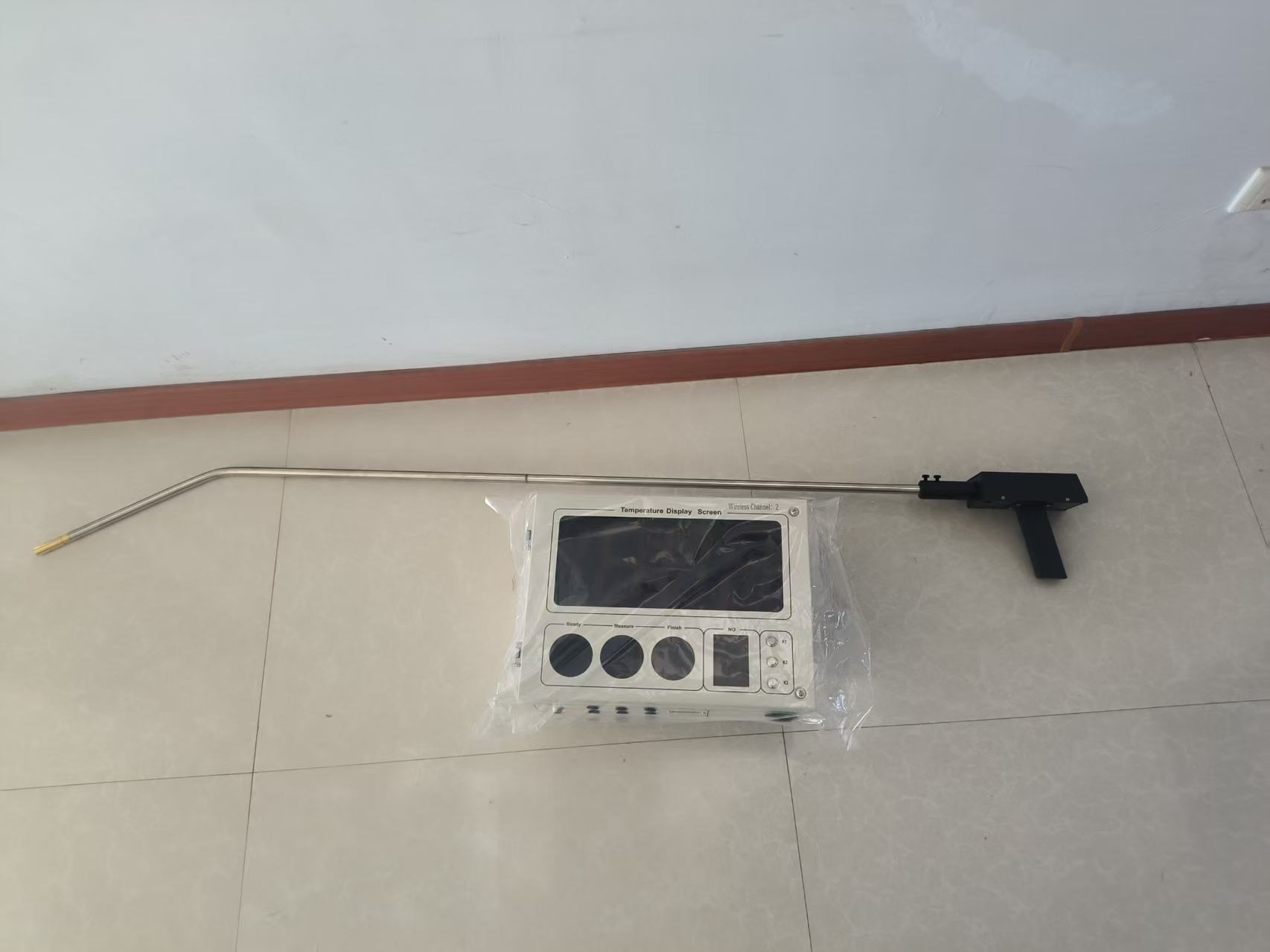

AT2000B WirelessThermometer

Brief introduction

The temperature indicator is based on a high-speed 16-bit embedded microprocessor. An automatic calibration circuit is used to measure the cold junction temperature with a precision temperature sensor and software calibration is possible. High-precision AD conversion chip is used in data acquisition, the sampling period is 20ms, and it has strong anti-interference to the power frequency of space.

The temperature indicator can be applied to the temperature measurement of molten metal in steel-making, aluminum smelting, cast iron and other industries, as well as slag temperature.

Function Description

Ø         DC12V active speaker output interface

Ø         200 historical test data storage(Special instructions for ordering)

Ø         RS485 or 232 serial communication interface with large display screen (Special instructions for ordering)

Ø         RS485 or 232 serial communication  interface with  Modbus RTU standard communication protocol (Special instructions for ordering)

Ø         Micro printer interface (Special instructions for ordering)

Ø         Isolated BCD code output interface (Special instructions for ordering)

Ø         Analog 4~20mA output interface √ (Special instructions for ordering)

Ø         Voice report (Special instructions for ordering)

Ø         K type continuous temperature measurement (Special instructions for ordering)

Technical Parameters
