TOFD / Phased Array Flaw Detector

Product Infomation
PA16/64 Model is a portable 64-CH phased array and TOFD ultrasonic flaw detector originally developed by AJR NDT CO., LTD. It’s water & oil -proof, fan-free and with touch screen. Whole-process data logging, innovative phased array probes and inspection methods being the advantages, this model guarantees superior performance and support, which makes it among the best of its kind for high C/P ratio. Applications include: conventional or special welds such as steel structures, power station boilers, pressure vessels, transmission pipes, nuclear power, ships, oil tanks, storage tanks, and PE pipes; railway welds, vehicles and locomotive wheel axles; aerospace aluminum alloy friction stir welding and composite material bonding structure ; power industry leaf roots, blades, bolts, etc.
  • Model:AJR NDT PA16_64
  • Specifications:16 / 64 pulser / receiver channels
  • Color:Red and Gray
  • Brand:AJR
Details

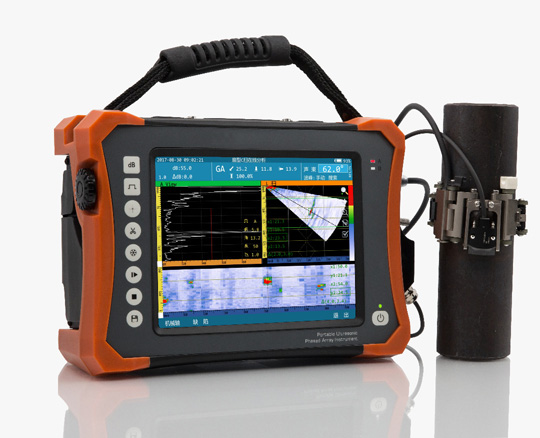

AJR NDT PA16_64 Phased Array & TOFD Ultrasonic Flaw Detector

Introduction

PA16/64 Model is a portable 64-CH phased array ultrasonic flaw detector originally developed by AJR NDT CO., LTD. It’s water & oil -proof, fan-free and with touch screen. Whole-process data logging, innovative phased array probes and inspection methods being the advantages, this model guarantees superior performance and support, which makes it among the best of its kind for high C/P ratio.

Applications include: conventional or special welds such as steel structures, power station boilers, pressure vessels, transmission pipes, nuclear power, ships, oil tanks, storage tanks, and PE pipes; railway welds, vehicles and locomotive wheel axles; aerospace aluminum alloy friction stir welding and composite material bonding structure ; power industry leaf roots, blades, bolts, etc.

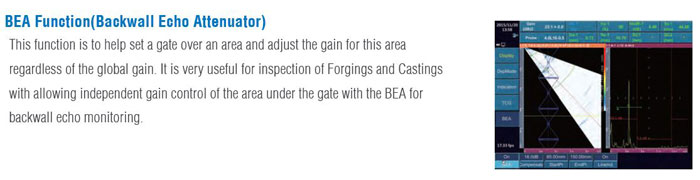

Features

l      File & Entry Management System for Flexible Bridging between Setting(Focal Law & Model), Calibration and Inspection

l      Modular Configuration: L-Scan, S-Scan, L-C-Scan, S-C-Scan

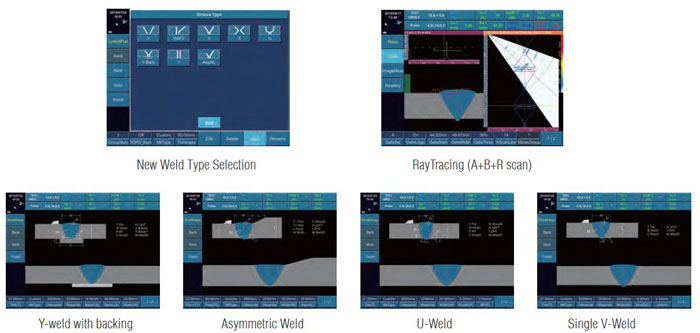

l      Butt-Weld, Crank Shaft, Pipeline,TOFD,UT(Conventional)

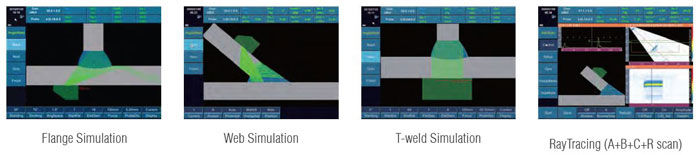

l      3D Simulation Model

l      Dynamic Depth Focusing(DDF)

l      Smooth Filtering

l      Touch Screen

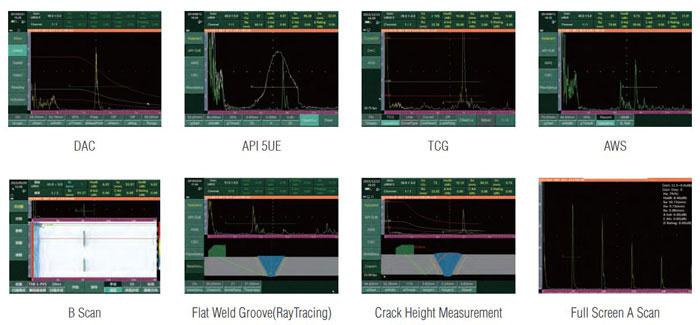

l      ACG Calibration

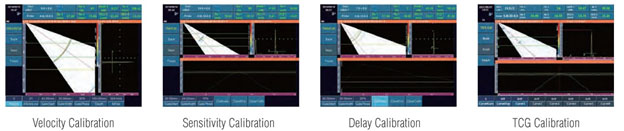

l      TCG Calibration

Specification

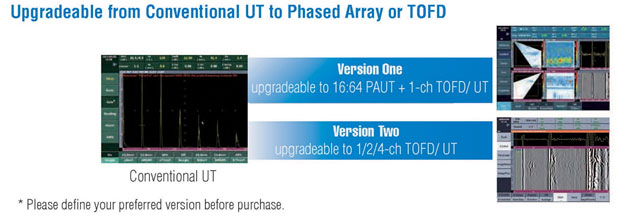

Channel Configuration

Mode

PA

UT

TOFD

Channel

16:64

2

2

Physical Specification

Display

11-inch 800X600 TFT color display

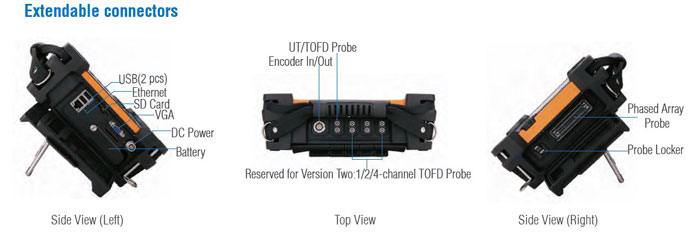

Transducer

Ports

I-PEX 160-pin PA transducer port; Lemo-00 conventional

transducer Port, for either T-R or T&R

I/O Ports

USB2.0 Port: 2(qty)

HDMI; encoder

LAN (Gigabit-NIC);

WIFI

I/O (commissioning)

2D Encoder

Memory

In-Built: 16G RAM+4GB FLASH ;SD card (max to32G);

External: USB drive

Weight

3.5Kg (with 1 battery)

Dimension

284mm×202mm×95mm

Power

Supply

AC: 100240V, 5060Hz; DC: 12V

Charging

(battery) within or individually

Battery Life

6 Hours

Working

Power

24W

Language

English

Temperature

Conditions

Ambiance-2050

Storage-2060

IP

54

Specification

Mode

PA

UT

TOFD

PRF

50Hz10kHz

50Hz5kHz

50Hz5kHz

Voltage

Bipolar,

±45±100V,

with 5V per step

Negative Square

Wave, -75V-250V, with 25V per step

Negative Square

Wave, -75V-250V, with 25V per step

Pulse Width

20ns800ns,

with 5ns per step

20800ns, with 5ns

per step

20800ns, with 5ns

per step

Damping

50Ω

80Ω / 400Ω

80Ω / 400Ω

Sampling

Rate

125MHz

200MHz

200MHz

Delay

Precision

2.5ns

N/A

N/A

Rx Delay

040us

N/A

N/A

Bandwidth

0.5MHz19MHz

0.5MHz15MHz

0.5MHz15MHz

Gain

0.080dB

0.0110.0dB

0.0110.0dB

Filter

0.5-9.6MHz, 2.5-

12.9MHz, 3.8-19MHz

Optional

Broadband, Narrowband

Broadband, Narrowband

Rectification

FW

FW

RF

Reject

0~80%

0~80%

0~80%

Scan Mode

A/L/S/C

A

A/D

Triggering

Encoder

N/A

Encoder

Scan Line

Max 128

N/A

N/A

Skew

L-scan:-89°+89°

S-scan:-89°+89°

N/A

N/A

Smart-Cal

Velocity/Delay/AC

G/TCG/Encoder

DAC/DGS

Delay/X-Value/PCS/

Wave/Encoder

Range

0.01000mm,

min1mm

0.02000mm

0.02000mm

Displaying

Delay

(max)

1000mm

2000mm

2000mm

Pulse Shift

(max)

N/A

2000mm

2000mm

Unit

mm

mm

mm

Gate

A/B

A/B

A/B

Gate Start

Available within the

range

Available within the

range

Available within the

range

Gate Width

Available within the

range

Available within the

range

Available within the

range

Gate

Threshold

0-100%

5-95%

0-100%

Alarm

Signal

Buzzer / LED

Buzzer / LED

Buzzer / LED

Spotting

Crest / Flank

Crest / Flank

Crest / Flank

Readout

Amp/Path/

Horizontal/Depth

Amp/Path

/Horizontal/Depth

Amp/Path

/Horizontal/Depth

Resolution

0.5mm

0.1mm

0.1mm
