AJH600 Portable Hardness Tester

Product Infomation

 Pen type design, self contained (Impact device and display integrated): no cables.  The unique large-screen OLED color display（1.77-inch OLED Screen）integrated hardness tester in the world.  Interchangeable D impact device (standard) /DL impact device (optional) can achieve one unit dual use; can be used in the restricted area measurement.  With standard AAA Lithium battery compartment, battery can be replaced.  Highly accuracy in any impact direction (360°), automatically identify impact direction and gravity compensation  Easy Operation, the four soft keys above the screen achieve the various functions

Model:AJH600
Specifications:HLD(200-960), HRC(19.8-68.5), HB(30-651), HV(80-976), HS(26.4-99.5), HRB(13.5-100), σb(375-2639)
Color:Yellow
Brand:AJR

Details

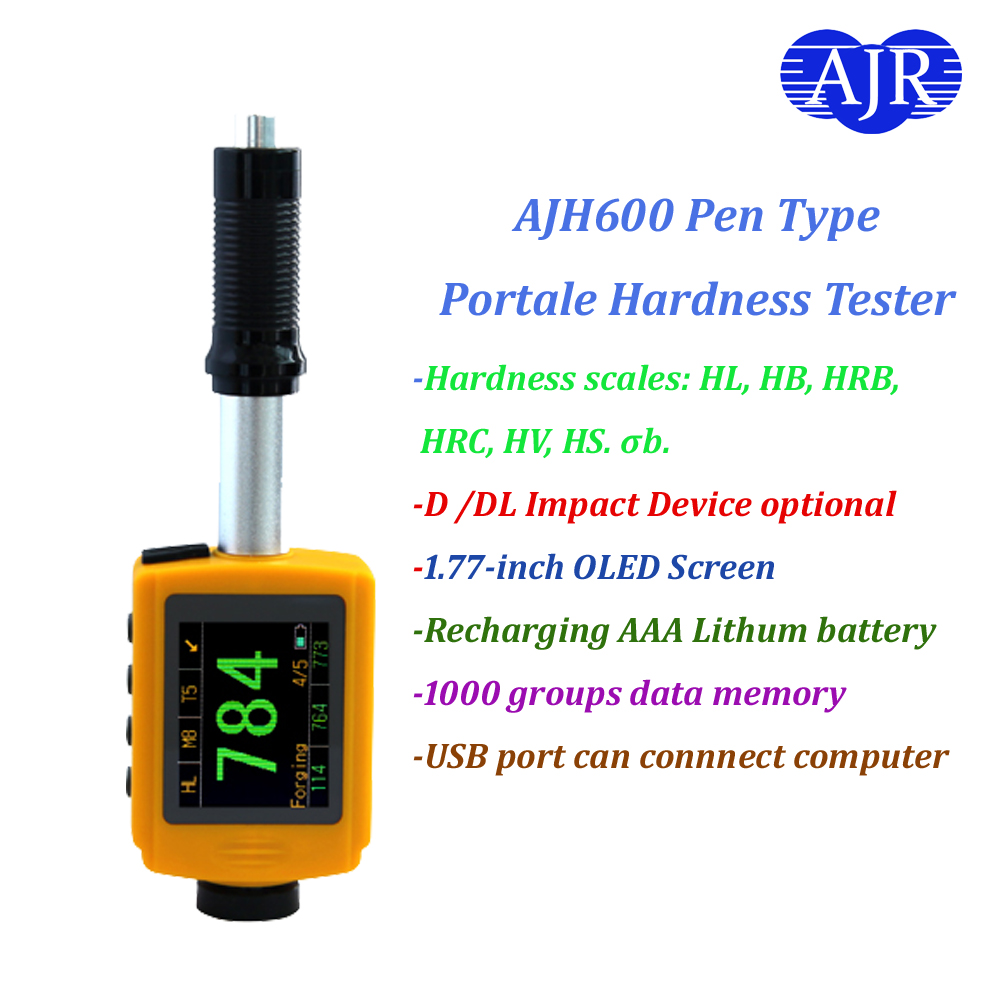

AJH600 Pen Type Portable Hardness Tester

Features

Pen type design, self contained (Impact device and display integrated): no cables.

The unique large-screen OLED color display（1.77-inch OLED Screen）integrated hardness tester in the world.

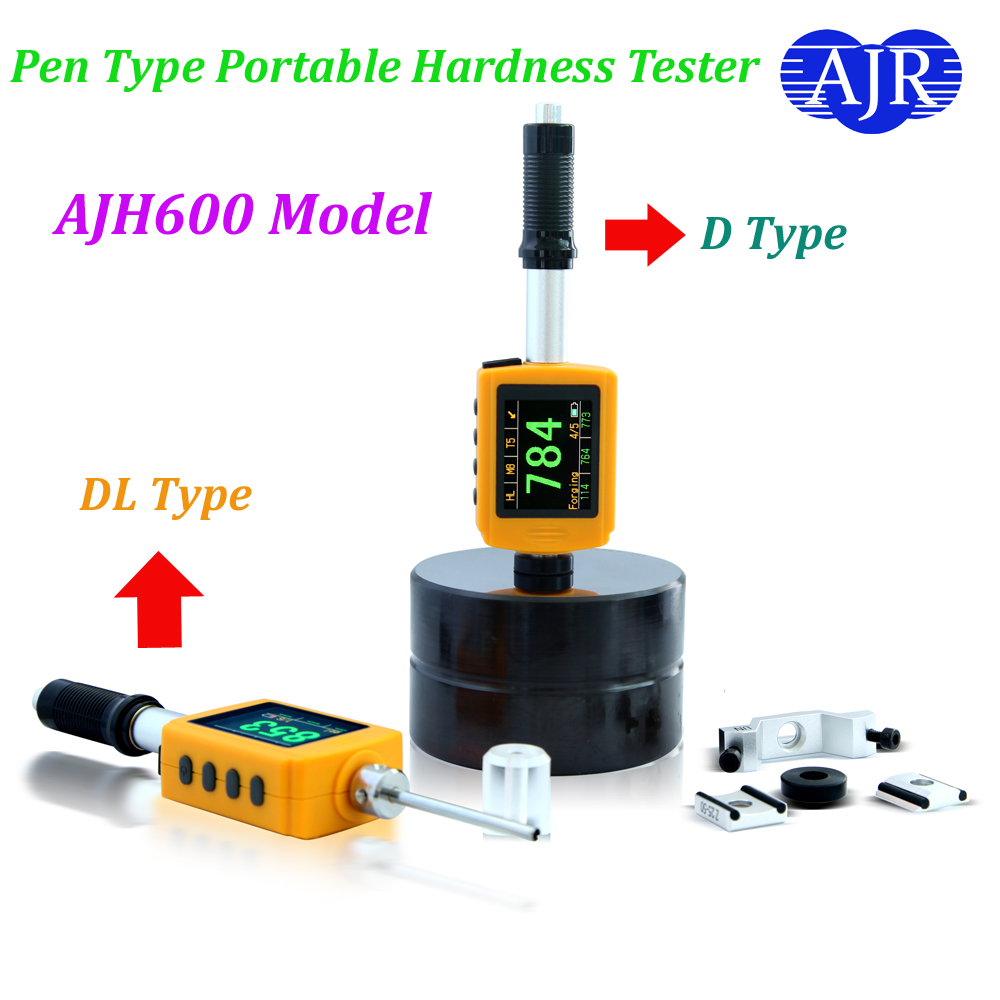

Interchangeable D impact device (standard) /DL impact device (optional) can achieve one unit dual use;

It can be used in the restricted area measurement.

With standard AAA Lithium battery compartment, battery can be replaced.

Highly accuracy in any impact direction (360°), automatically identify impact direction and gravity compensation

Easy Operation, the four soft keys above the screen achieve the various functions.

Operating Principle

The impact body, which is equipped with tungsten carbide, impact velocities are measured at the 1mm point from the work piece in the following way: the integrated permanent magnet will produce directly proportional voltage with the impact velocity. The Leeb hardness values are calculated by the following formula:

Specifications

Display Type	1.77 inch OLED with resolution 160x128 pixels
Hardness Scale	HL, HB, HRB, HRC, HV, HS. σb.
Measuring Range	HLD(200-960), HRC(19.8-68.5), HB(30-651), HV(80-976), HS(26.4-99.5), HRB(13.5-100), σb(375-2639)
Impact Device	D type Impact device(standard); optional DL type impact device
Accuracy	±6HLD (HLD=800), Repeatability ﹤6HLD (HLD=800)
Measuring Direction	360 degree by manual setting
Material	Steel & Cast Steel, Stainless Steel, GC IRON, NC IRON, Cast Aluminum Alloy, Macht Metal, Copper-tin Alloy, Brass, Forged Steel
Resolution	1HL, 1HV, 1HB, 0.1HRB, 0.1HRC, 0.1HS
Calibration	Automatic
Language	English
Memory	1000 groups, each group include 6 testing result and 1 average value
Communication	USB port, used for recharging and data transmission
Software	VIEW Software for transmission, storage, and printing
Power	AAA Polymer lithium battery ,Capacity of 600 MA/H, voltage: 3.7 V, warning under low voltage
Instrument Shut-off	AUTO OFF after 3 minutes of inactivity
Temperature	-10℃~ +50℃
Net Weight	110g with D type impact device,125g with DL type impact device
Size	150mm46mm23mm
Standard	GB/T 17394-1998, ASTM A956

Standard Accessories

	No.	Item	Quantity
Standard Configuration	1	Main body	1
	2	D type impact device	1
	3	Test block with HLD value	1
	4	Data View Software	1
	5	USB Communication Cable	1
	6	Small Supporting Ring	1
	7	Recharger	1
	8	Cleaning brush (I)	1
	9	Instruction manual	1
	10	Warranty card	1
	11	Certificate of conformity	1
	12	Instrument box	1
Optional	13	DL Impact Device
