ART300 Surface Roughness Tester

Product Infomation
AJR NDT: ART300 portable roughness measuring instrument is a new product of AJR NDT Co. Ltd. ART300 is a high accuracy surface roughness measuring instrument. It is applicable to the workshop testing station, laboratory, metrology room environmental detection. ART300 measurement meets international standards of the United States, Germany, Japan and is compatible with Britain and other industrial developed country standards. Measurement results can be shown on digital LCD display. The result can be also output to the printer.
  • Model:ART300
  • Specifications:RX, Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr;
  • Color:Blue, Grey
  • Brand:AJR
Details

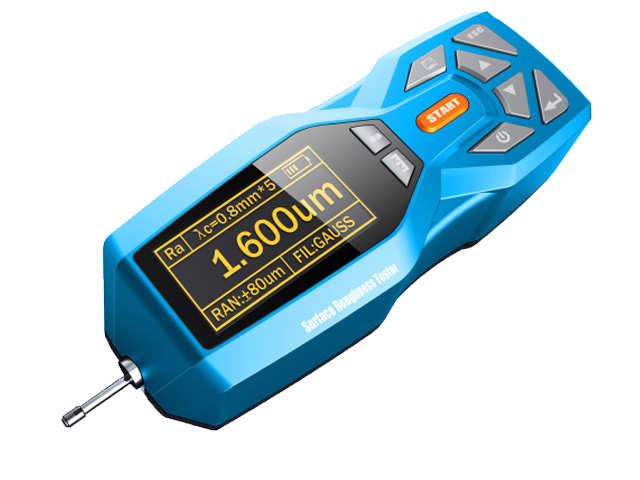

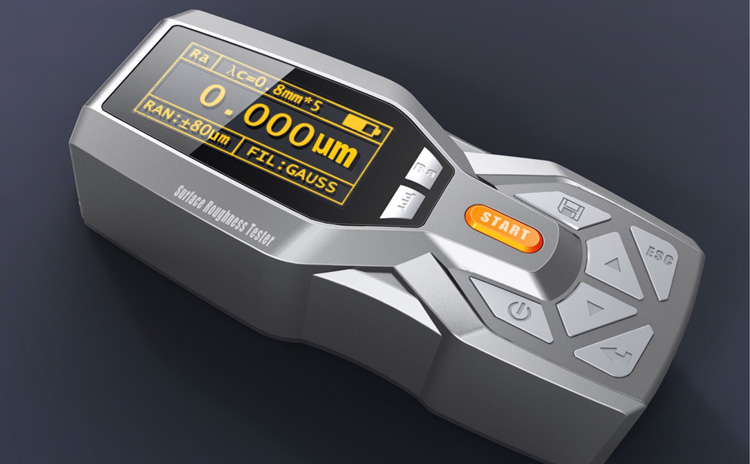

ART300 Surface Roughness Gauge

Introduction:

AJR NDT: ART300 portable roughness measuring instrument is a new product of AJR NDT Co. Ltd. ART300 is a high accuracy surface roughness measuring instrument. It is applicable to the workshop testing station, laboratory, metrology room environmental detection. ART300 measurement meets international standards of the United States, Germany, Japan and is compatible with Britain and other industrial developed country standards. Measurement results can be shown on digital LCD display. The result can be also output to the printer.
Functions and features:

l        Electromechanical integration design, small volume, light weight, easy to use;

l        Using DSP chip to control and data processing, high speed, low power consumption;

l        Large range, parameters RX, Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr;

l        128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;

l        Display information rich, intuitive, can display all the parameters and graphics;

l        Compatible with ISO, DIN, ANSI, JIS national standards;

l        Built-in lithium rechargeable battery and a charging control circuit, high capacity without memory effect;

l        Residual battery quantity indicator icon can reminder user to charge and understand the battery charging degree.

l        Machine can work more than 20 hours continuously

l        Large capacity data memory, can store 100 groups of original data and waveform.

l        Real-time clock settings and display, convenient data recording and storage

l        Low power consumption design.

l        Reliable circuit and software design can avoid system halted.

l        Measurement display, menu prompt information, incorrect information and switch machine information and other tips information;

l        ART300 can be connected to a computer and printer;

l        Various optional transducers, measuring platform, mini printer, extension rod and other accessories.

l        Plastic shell, inspired by “TRANSFORMERS” stylish design, portable, high reliability.

l        Optional bluetooth function.

Technical parameters

Item

Specification

Product Model

ART300

Testing parameters

Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx;

Measuring range (um)

Ra: 0.005-16.000

Rz: 0.02-160.00

Sample length (mm)

0.25, 0.80, 2.50

Evaluation length(mm)

(1-5)L

Maximum drive stroke

17.5mm/0.7inch

Indication accuracy

0.001

Indication error

±(7-10)%

Variability

<6%

Data Storage

100 groups

Power

Rechargeable li-battery

Working temperature

-2040

Relative humidity

<90%

Size

158mmx63.5mmx46mm

Weight of Host

0.3kg

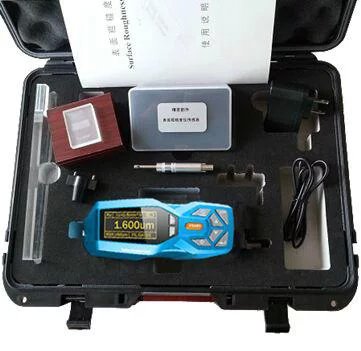

Standard Accessories

No.

ITEM

QTY.

1

ART300 Main Machine

1

2

Standard Transducer

1

3

Calibration Block

1

4

Adjusting Support

1

5

Power Adapter

1

6

USB charging cable

1

7

Carrying Box

1

8

Operation Manual

1

9

Product Certificate

1

10

Packing List

1

11

Warranty Card

1

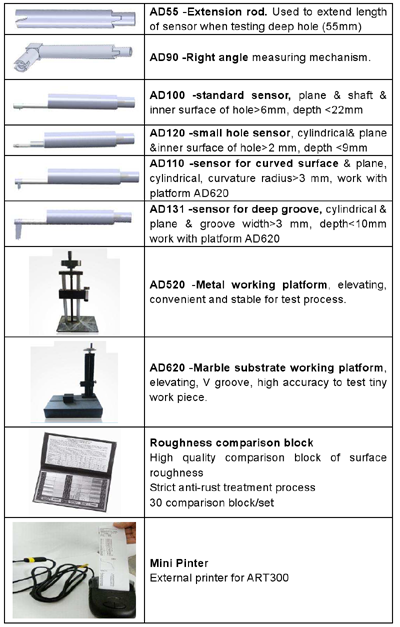

Optional Accessories:
