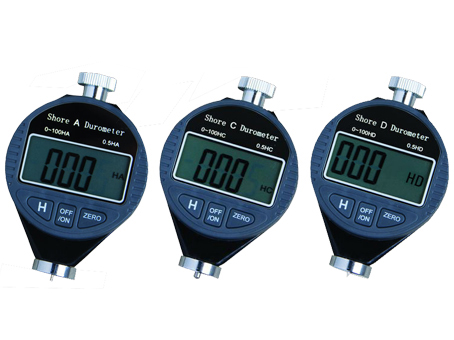

Digital Shore Durometer

Product Infomation
The Shore hardness is measured with an apparatus known as a Durometer and consequently is also known as 'Durometer hardness'. The hardness value is determined by the penetration of the Durometer indenter foot into the sample. Because of the resilience of rubbers and plastics, the indentation reading my change over time - so the indentation time is sometimes reported along with the hardness number. The ASTM test method designation is ASTM D2240 00 and is generally used in North America. Related methods include ISO 7619 and ISO 868; DIN 53505; and JIS K 6301, which was discontinued and superceeded by JIS K 6253.
  • Model:Shore A, Shore C, Shore D
  • Specifications:0-100
  • Color:Black
  • Brand:AJR
Details

Shore Type Durometer

Features
A-type durometer applies to general rubber, synthetic rubber, soft rubber, poly-resin, leather, wax, etc.
C-type durometer applies to rubber and contains the tiny hole material that that the vesicant is made in being used for plastic
D-type durometer applies to general hard rubber, hard resin, acryl, glass, thermoplastics, printing plates, fibres, etc.

Technical specifications

Model

Shore A

Shore C

Shore D

Measurement area

0 - 100 Shore A

0 - 100 Shore C

0 - 100 Shore D

Resolution

0,1

0,1

0,1

Accuracy

±1

± 1

± 1

Depth of indentation

0 -2.5 mm

0 -2.5 mm

0 -2.5 mm

Pressure force

1 kg

1 kg

5 kg

Indenter

35°

Spheric radius2.38mm

30°

Dimensions

90 x 55 x25 mm

90 x 55 x25 mm

90 x 55 x25 mm

Power supply

1 x 1,5 V (SR44)

1 x 1,5 V (SR44)

1 x 1.5 V (SR44)

Weight

approx.150 g

approx.150 g

approx.150 g

Notice:

1).Thickness of test specimen >6mm,no more than 3 layers; Test area >/=feet area(diameter18mm).

2).Test 3 times and calculate the average as test result.

3).Usually,plz use A/D.When the hardness of A >90,plz use D or C.
