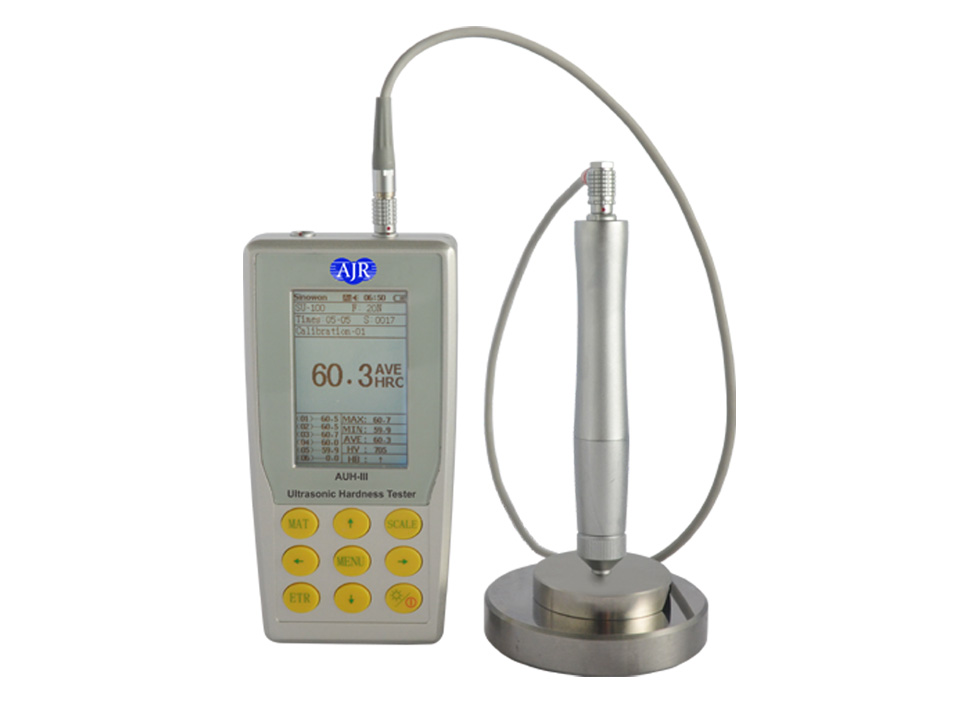

AUH-III Ultrasonic Portable Hardness Tester

Product Infomation
Ultrasonic hardness tester AUH-III apply ultrasonic contact impedance method to do comparative hardness measurement for testing pieces, with advantages of high accuracy, efficiency, portable and easy operation. Ultrasonic hardness tester AUH-III is widely used to measure hardness of small forgings, cast material, weld inspection, heat affected zone, Ion-nitrided stamping dies and molds, forms, presses, thin walled parts, bearings, tooth flanks, etc.
  • Model:AJR AUH-III
  • Specifications:HB: 85-650; HV 80-1599; HRC 20-70; HRB: 41-100; HRA: 61-85.6; HS: 34.2-97.3; Mpa: 255-2180N/mm
  • Color:Grey
  • Brand:AJR
Details

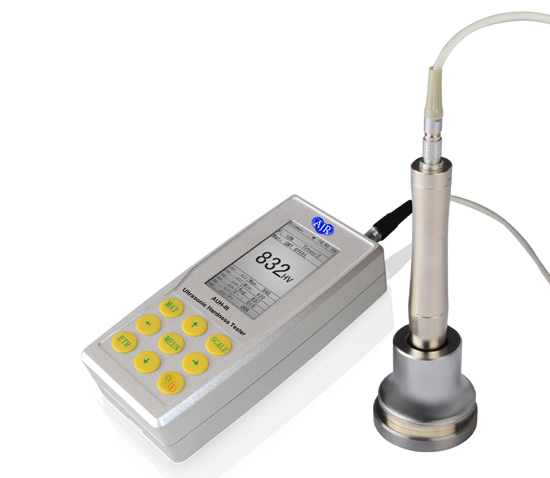

AUH-III Ultrasonic Portable Hardness Tester

Introduction:

At present, there are kinds of methods for hardness measurement, commonly used like Brinell, Rockwell, Vickers, Leeb, etc. while the disadvantages are obvious for the above hardness measurement .Rockwell and Brinell with heavy loading force and big indentation, lead to serious destruction on sample surface.

Vickers apply optical measurement, but only professional technicians can operate smoothly, impossible to measure hardness of heavy work piece, installed machinery and permanently assembled parts.

Leeb hardness tester apply rebound and indirect method to measure hardness, easily lead to big deviation when convert to Brinell, Rockwell and Vickers scales.

Ultrasonic hardness tester AUH-III apply ultrasonic contact impedance method to do comparative hardness measurement for testing pieces, with advantages of high accuracy, efficiency, portable and easy operation.

Ultrasonic hardness tester AUH-III is widely used to measure hardness of small forgings, cast material, weld inspection, heat affected zone, Ion-nitrided stamping dies and molds, forms, presses, thin walled parts, bearings, tooth flanks, etc.

Features:

l        Perfect Accuracy——±3% HV, ±1.5HR, ±3%HB

l        Microscopic Indentation—— Only high-power microscope can observe the indentation

l        Quick Measurement——Result in 2 seconds

l        Large LCD Display——Directly display measurement result, times count, maximum, minimal, average and deviation.

l        Friendly Operation——Operate well after short training

l        Promised Warranty——2-Year warranty for main unit (Excludes Probe)

l        Mass Storage——Save 1000 groups measurement data

l        Simple Calibration——Save 20 groups calibration data for invoking, improve calibration efficiency.

AUH-III Specifications:

Product Name

Ultrasonic Hardness Tester

Model

AUH-III

Loading Force

2Kgf(Optional: 1Kgf, 5Kgf, 10Kgf)

Measuring Range

HB: 85-650; HV 80-1599; HRC 20-70; HRB: 41-100; HRA: 61-85.6; HS: 34.2-97.3; Mpa: 255-2180N/mm

Measuring Accuracy

HV:±3%HV; HRC:±1.5HRC; HB:±3%HB

Indenter

136°Vickers Diamond Indenter

Measuring Direction

Support 360°

Data Storage

To save 1000-groups of measuring data and 20-groups of calibration data

Hardness Scale

HVHBHRCHRAHRBMPa

Data display

Loading force, Testing-times, Testing result, Average, MaximumMinimumDeviation and Conversion scale.

Hardness Indication

LCD display

Operating Environment

Temperature:-10~50; Humidity: 30%~80%R.H

Operating Voltage

DC 4.8V

Instrument Dimensions

160x80x31mm

Net Weight

Approximate 500gWithout probe

Standard Delivery:

No.

Item

Qty.

1

AUH-III Main Unit

1

2

2Kg Manual Probe

1

3

Probe Cable

1

4

Recharger

1

5

Battery

1

6

Screw driver

1

7

Carry Case

1

8

Warranty Card

1

9

Quality Certificate

1

10

Operation Manual

1

11

Calibration Certificate

1
