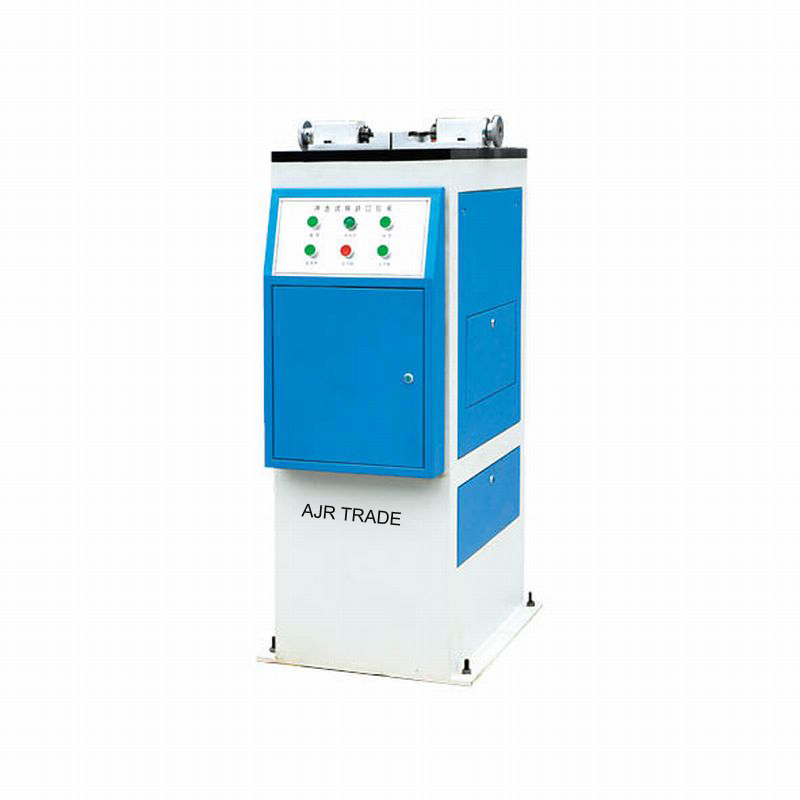

Electric (hydraulic) Impact Specimen Notch Broaching Machine

Product Infomation
Impact specimen notch broaching machine is the sole tool that can process qualified specimen notches other than the optical profile grinder. Due to the principle of one-step forming, notches processed by it have good identity. The products of this series can currently be classified into the following types domestically: manual impact specimen notch broaching machine (single-blade), electric impact specimen notch broaching machine (double-blade) and hydraulic electric impact specimen notch broaching machine (double-blade). This product can meet the requirement specified in GB/T 229-2007 Metallic materials -Charpy pendulum impact test method. If the structural form is changed and important relevant parts are replaced, international standards such as ASTM, E23-02a, EN10045, ISO148 and ISO083 can be met.
  • Model:AJB-W300B
  • Specifications:Dimension of processed specimen: 10 (7.5, 5)×10×55
  • Color:White
  • Brand:AJR
Details

Electric (hydraulic) Impact Specimen Notch Broaching Machine

I. Main Purpose

Impact specimen notch broaching machine is the sole tool that can process qualified specimen notches other than the optical profile grinder. Due to the principle of one-step forming, notches processed by it have good identity. The products of this series can currently be classified into the following types domestically: manual impact specimen notch broaching machine (single-blade), electric impact specimen notch broaching machine (double-blade) and hydraulic electric impact specimen notch broaching machine (double-blade). This product can meet the requirement specified in GB/T 229-2007 Metallic materials -Charpy pendulum impact test method. If the structural form is changed and important relevant parts are replaced, international standards such as ASTM, E23-02a, EN10045, ISO148 and ISO083 can be met.

II. Main Technical Parameters

Shape of specimen notch

V typeU type2mm is standard accessories

35mm are optional accessories

Dimension of processed specimen

10 (7.5, 5)×10×55

Cutting method

Electric

Broach travel

350mm

Broach material

W18Cr4V

Power supply

380V0.37KW

Overall dimension

580×400×1140mm

Weight

180Kg

Note: This parameter list is only for information and is subject to change without notice. The real objects prevail for the products of our company.
