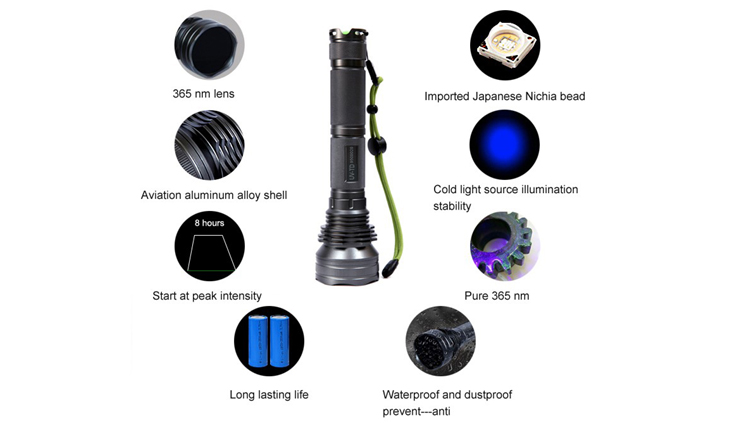

AJR UV-TD Type UV LED LAMP / TORCH
Introduction
AJR UV-TD type pocket lamp type LED Ultraviolet Lamp is professional portable UV Lamp researched and developed by our company. A complete range of specifications of UV Lamp can meet different requirements. The series possesses ultra-high brightness, long working hours and stable quality etc., and it conforms the National Pressure-bearing Equipment NDT Standard (NB/T 47013-2015).
Application
Fluorescence Penetrant Testing
Fluorescence Magnetic Particle Flaw Detection
Fluorescence Leak Detection
Oil Stain, Blot Testing
Special Gas, Oil and Gas Pipeline Testing
Fluorescence Reflection Detection for Special Materials
Criminal Investigation and Legal Medical Expert Survey
Paper Money Authentication, Jewel Appreciation
Technical Specification
|
Model |
UV-TD |
|
|
Maximum Intensity of Ultraviolet Ray at 38cm Distance |
L:8000uW/cm2 |
|
|
H:20000uW/cm2 |
||
|
Irradiated Area at 38cm Distance (≥1200 uW/cm2) |
￠ 55mm |
|
|
Visible0 Light Illumination≈ |
3.5 lux |
|
|
Black Light Filter |
Include |
|
|
Light Source |
||
|
Number of Beads |
1 |
|
|
Battery Model |
ICR 26650 |
|
|
Battery Capacity |
3.7V 4800mAh |
|
|
Number of Battery |
2 |
|
|
Charging Time |
7H |
|
|
Working Hours (Continuous) |
L:18H |
|
|
H:8H |
||
|
Outline Dimension |
Lamp Head Diameter (A) |
62 mm |
|
Diameter of Light Inlet Window (B) |
55 mm |
|
|
Length (L) |
240 mm |
|
|
Weight (including Battery) |
520g |
|
|

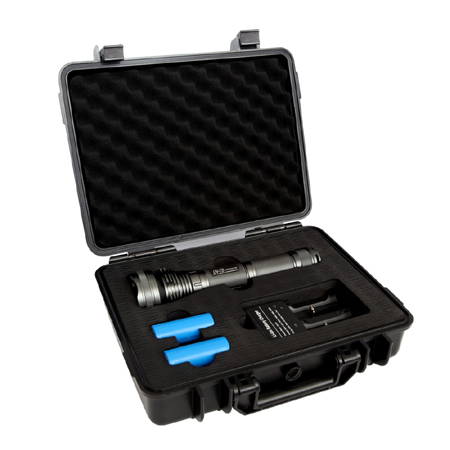

No. |
Item |
Qty. |
|
1 |
Main Device |
1 |
|
2 |
Battery |
2 |
|
3 |
Charger |
1 |
|
4 |
Suit case |
1 |
|
5 |
Operating Manual |
1 |
|
6 |
Certification |
1 |
|
7 |
Warranty Card |
1 |
|
8 |
Packing List |
1 |
