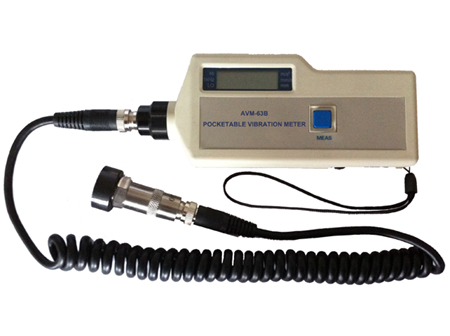

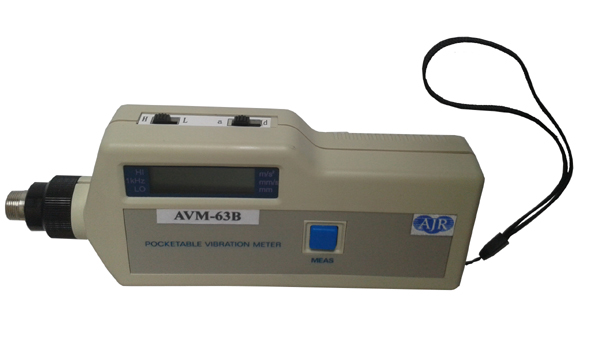

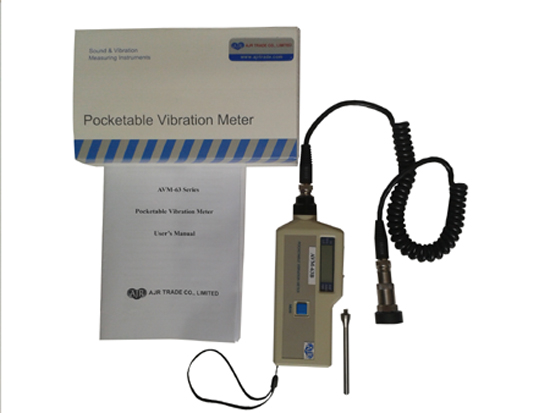

AVM-63B Pocket Vibration Meter

Introduction

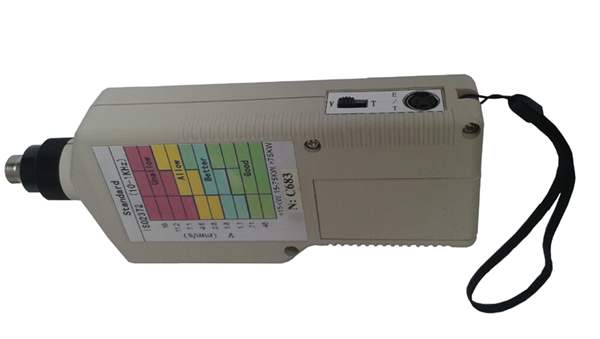

AVM-63B Pocket vibration (temperature) instrument, mainly used in machinery and equipment vibration displacement, velocity (intensity) and the acceleration, temperature parameters of the measurement instrument in the bearing housing using the measured data, the control of international standard ISO2372 , Or the use of enterprises, the standard machine, you can determine the equipment (fans, pumps, compressors, motors, etc.) in which the current state (well, pay attention or dangerous, etc.).

Specifications

AVM-63B: Separate probe

Sensors: one rotary shear accelerometer

              Split charge amplifier built-in shear accelerometer

Range: Acceleration 0.1 ~199.9m/s2 (single peak) (5 or 10 ~ 1KHz; 1K ~15KHz)

                  Speed of 0.1 ~199.9mm/ s (RMS) (5 or 10 ~ 1KHz)
                 Displacement of 0.001 ~1.999mm(peak) (5 or 10 ~ 1KHz)
                 Temperature0 ℃~400 ℃
 Accuracy: 5% ± 2 vibration words
                   Temperature 1% ± 1 word
Display: LCD display three and a half
Maintain Characteristics: measurement value is automatically maintained, automatic shutdown delay
Signal Output: AC 2V peak (full scale and the load is greater than 10K ohms)
Power: 9V laminated battery 1 can be used continuously 25 hours
Dimension:185mm×68mm×30mm
Weight:200g
