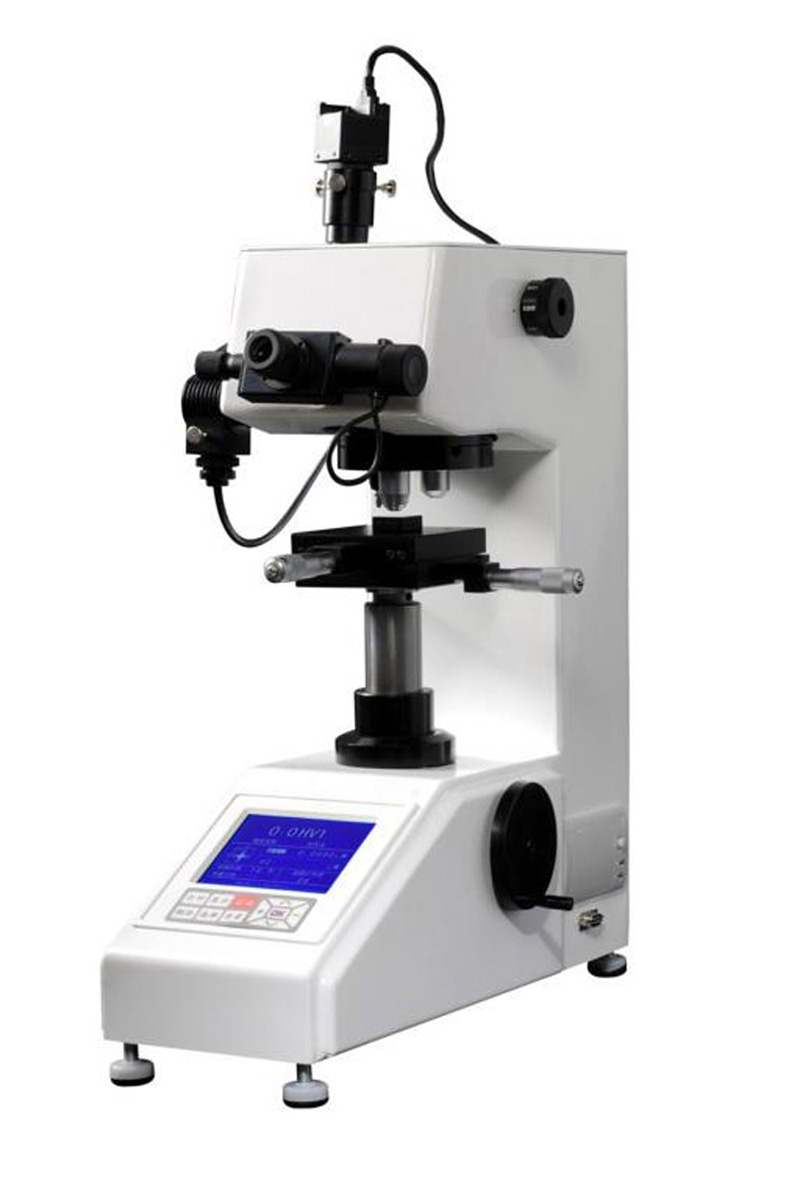

AJR HVS-1000 Digital Micro Vickers Hardness Tester
Introduction
AJR HVS-1000 Micro Vickers Hardness Tester adopts LCD screen to display. By mean of control keys, user can choose HV or HK hardness scales, testing force and duration time. Light brightness can be adjusted without steps. With measuring microscope, it may test out the length values of diagonals D1 and D2, then press the keys to input the length values, and the hardness values will be displayed on the LCD screen. The operation is very easy for a new user.
Usage Range
Heat treated layer, carbonized layer, hardened hard layers, superficial coating, steels, non-ferrous metal, micro and thin shaped components.
Technical Specification
|
Testing Force |
10gf (0.098N）、25gf (0.245N)、50gf (0.49N)、100gf (0.98N )、 200gf (1.96N)、300gf (2.94N)、500gf (4.9N)、1000gf (9.8N) |
|
Exchanging Scales |
Rockwell, Superficial Rockwell, Brinell |
|
Test Range |
HV 8-2900 |
|
Min Measuring Unit |
0.031μm |
|
Display |
LCD |
|
Magnification of Microscope |
100X(For Observation) 400X(For Measurement) |
|
Duration Time |
0~60 sec selectable, In step of 5 sec |
|
Loading Control |
Automatically (load, keep, unload) |
|
X-Y Testing Table |
Dimension: 100x100mm |
|
Max Moving Range: 25x25mm |
|
|
Resolution: 0.01mm |
|
|
Overall Dimension |
405×290×480mm(L×W×H) |
|
Net Weight |
25kg |
|
Max Height of Specimen |
80mm |
|
Distance of Indenter to outer wall |
95mm |
|
Power Supply |
AC220V±5%，50~60Hz |
|
Carried Standard |
GB/T4340(1.2) Chinese Standard, ASTM_E92 |
Standard Accessories:
|
No. |
Item |
Qty. |
|
1 |
AJR HV-1000 Main Machine |
1 |
|
|
Weight Axis |
1 |
|
2 |
Weight |
6 |
|
3 |
Vickers Indenter |
1 |
|
4 |
Vickers Hardness Block |
2 |
|
5 |
Thin shaped Testing Table |
1 |
|
6 |
Forcipate Testing Table |
1 |
|
7 |
Cylinder Testing Table |
1 |
|
8 |
Fuse 2A |
2 |
|
9 |
Objectives 40x |
1 |
|
10 |
Objectives 10x |
1 |
|
11 |
10X Microscope |
1 |
|
12 |
Power Cable |
1 |
|
13 |
Level |
1 |
|
14 |
Plastic Protection Cover |
1 |
|
15 |
English Operation Manual |
1 |
|
16 |
Product Certificate |
1 |
