Weld Gauge HJC-30

Product Infomation

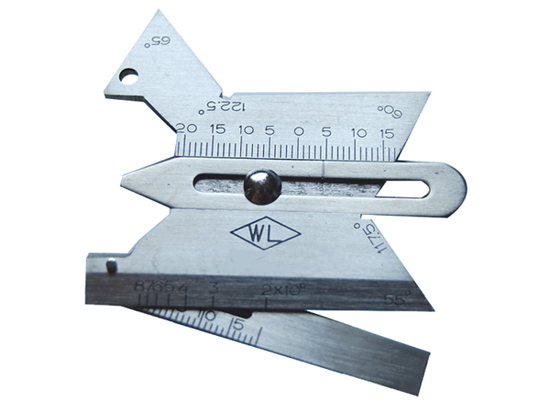

This product is mainly made up by the feet, ruler, oblique feet three parts. It’s used the welder to measure the groove angle and weld width, height, and seam’s special measuring tool. Applicable to weld higher quality products and components, such as boiler, pressure vessel , etc. This product is the necessary welder measuring tool which with stainless steel material, reasonable structure, convenient use, beautiful appearance, and wide serviceability.
  • Model:HJC-30
  • Specifications:Weld Width: 0-20mm
  • Color:White
  • Brand:AJR
Details

HJC30 type welding inspection feet:


Item

Range

Technical parameters

Testing tools

Wide

0—20mm

0.2



0.02 caliper

high

0—12mm

Feeler gauge, secondary  flat

Fillet weld

Weld width feet

0—20mm

Mobile groove Angle

20`,30`,40`,50`,
60`,70`,80`

About 2

About 30` special Angle gauge

Check unilateral groove Angle

117.5—122.5



About 30`

About 10` universal square rule

groove Angle

45`,55`,60`,65`



About 30`

About 10` universal square  rule

Gap size

0.5-3.5mm

0.1

0.02 caliper

This product is mainly made up by the feet, ruler, oblique feet three parts. It’s used the welder to measure the groove angle and weld width, height, and seam’s special measuring tool. Applicable to weld higher quality products and components, such as boiler, pressure vessel , etc. This product is the necessary welder measuring tool which with stainless steel material, reasonable structure, convenient use, beautiful appearance, and wide serviceability.
