HJC60 type welding inspection feet:
Item |
Range |
Value Error |
|
Height |
Flat Height |
0—15 |
0.2 |
Angle seam Height |
0.2 |
||
Angle seam thickness |
0.2 |
||
Width |
0—60 |
0.3 |
|
Seam edge’s depth |
0—5 |
0.1 |
|
Seam bevel Angle |
80`-160` |
30` |
|
Gap dimension |
0.5—6 |
0.1 |

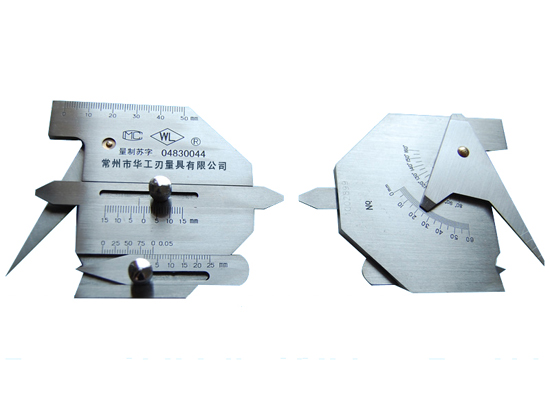

This product is mainly made up by the feet, ruler, oblique feet and Multi-purpose ruler. It’s used to measure the bevel angle and weld width, height, and seam and edge’s depth. Applicable to weld higher quality products and components, such as boiler, pressure vessel, etc.
This product is the necessary welder measuring tool which with stainless steel material, reasonable structure, convenient use, beautiful appearance, and wide serviceability.
