AFV2026 LED Industrial X-Ray Film Viewer

Product Infomation
The LED Industrial X-Ray Film Viewer AFV2026 combines advantages of both domestic and foreign film viewers, overcome various defects of traditional fluorescent lamp film viewers, such as low luminance, poor contrast and short lifetime. It is developed absolutely according to the Norm of ISO 5580 Industrial radiographic illuminators minimum requirements. Thanks to the portable, rugged and smart design, they are extremely suitable for fieldwork. It will come to be your right-hand man of you for sure.
  • Model:AJR-AFV2026
  • Specifications:Luminance:more than 100000 cd/㎡;
  • Color:Grey
  • Brand:AJR
Details

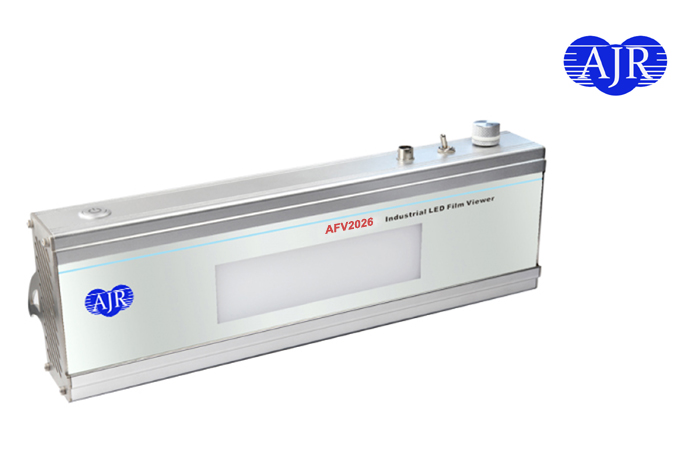

AJR-AFV2026 LED Industrial X Ray Film Viewer


Introduction

The LED Industrial X-Ray Film Viewer AFV2026 combines advantages of both domestic and foreign film viewers, overcome various defects of traditional fluorescent lamp film viewers, such as low luminance, poor contrast and short lifetime. It is developed absolutely according to the Norm of ISO 5580 Industrial radiographic illuminators minimum requirements. Thanks to the portable, rugged and smart design, they are extremely suitable for fieldwork. It will come to be your right-hand man of you for sure.

Features:

1.Ultra-high luminance: The luminance of AFV2026 is more than 100000 cd/㎡;

2.High uniformity: Even if adjust the brightness to the lowest, the lamp surface without any

   bright spot or dark areas;
3.Long life-time: Work time >60000 hours, 1 0 times longer than fluorescent lamps;
   ※Keep light source operating in the range of 7 0 % of the effective power, and further
   prolonging lamp life.
4.Unlimited Dimmer for LED: Adopt PWM to finalize 2%-100% wide range unlimited dimmer;
5.Genuine cold-light source, low heat without damage the negatives, selection of imported high
   luminous efficiency LED, to achieve low-power and high brightness;
6.No warm-up time is required, quick start-up, very suitable for the need to frequently switch, and
   the frequency of start-up will not influence the life-time of LED;
7.Good shock resistance, no longer afraid of wrestling fragile, no longer need to worry about
   for long- distance transport or field work;
8.Innovative wireless foot design, improve operating convenience, get rid of the shackles of the
   wire.
Main Specification:

Max. Light Intensity

100000 cd/

Average Color Temperature

6 5 0 0 K

Size of Viewing Window

2 0 0 * 60 MM

Power Requirement

1 7 0 - 2 5 0 V A C 5 0 / 6 0 H Z

Power Consumption

5 0 W

Dimension

4 5 6 x 1 4 2 x 68 MM

Weight

3 . 2 K G
