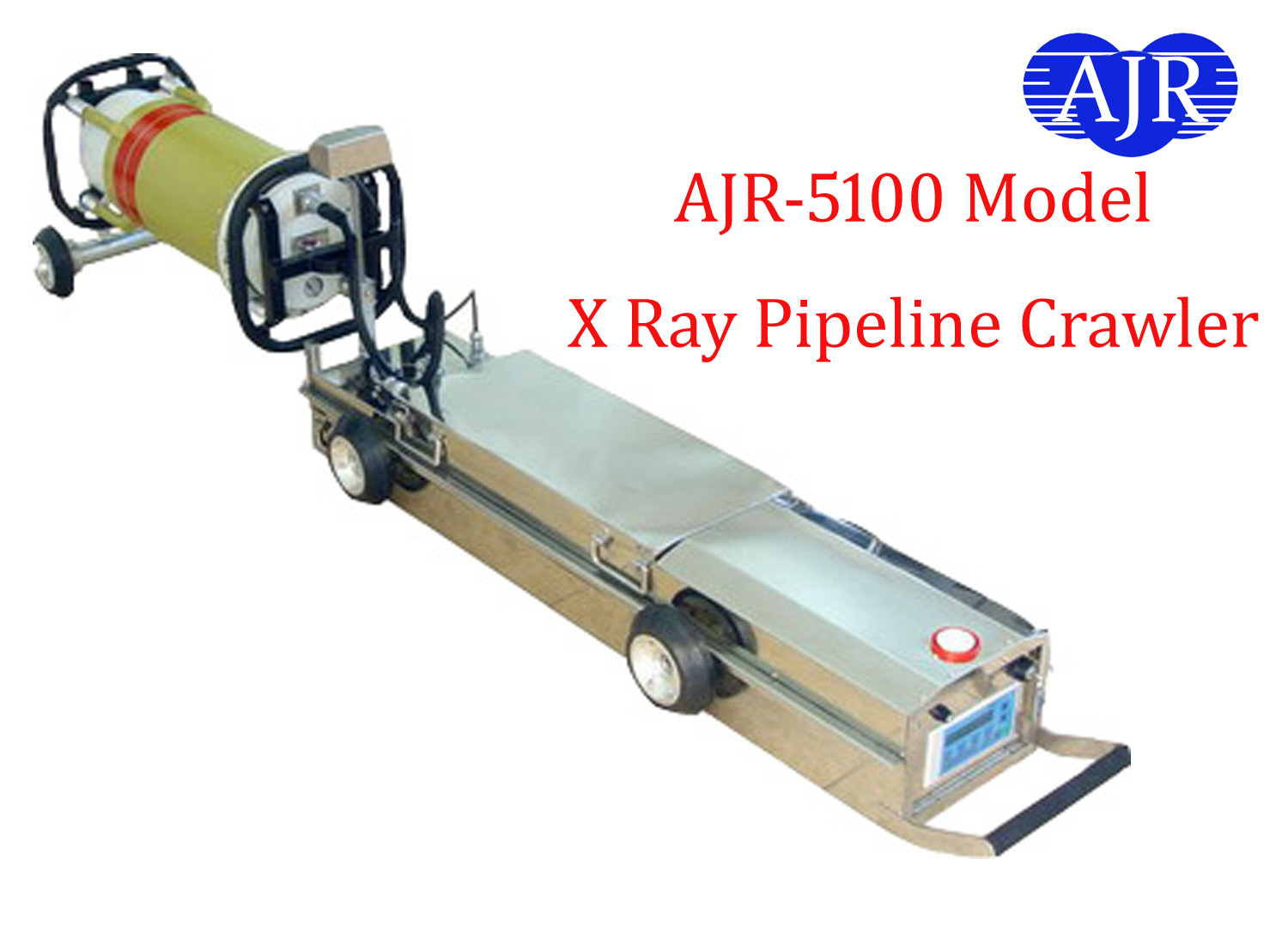

AJR-5100 X Ray Pipeline Crawler
Introduction
According to application of AJR-5000 series pipe crawlers and feedback of various detection companies, we make necessary upgrading and thorough reconstruction for crawlers as well as overturning innovation for original circuits and working circuits of detector. All technical indexes and service performances of crawlers are more reasonable and individual, which fully reflects the philosophy of “People-oriented” of design unit.
This machine is a novel crawler which is entirely different from previous ones in design and operation of circuits. We hope that customers can duly communicate with us in case of any problem occurring during operation. We will make great efforts to reconstruct the equipment on the basis of this to bring more user-friendly and applicable equipment.
AJR-5100 pipeline crawlers are widely used in welds quality detection of long-distance pipes with high efficiency, high radiograph quality and imaging sensitivity, low fault rate as well as safe, reliable and convenient and flexible operation.
Technical Data
|
Model |
AJR-5100 |
|
|
Pipe DiameterRange |
700—1400mm |
|
|
Weight |
Crawler |
50.5Kg |
|
Battery |
67Kg（2PCS） |
|
|
X-ray generator |
34Kg |
|
|
Locator |
2.8Kg |
|
|
Dimensions |
Crawler |
1200*380*190mm |
|
X-ray generator |
320*320*765mm |
|
|
Crawling speed |
15-18m/min. |
|
|
Crawling distance(Round trip) |
≥10Km |
|
|
Locator error |
±5mm |
|
|
Max. output voltage |
300Kv |
|
|
Max. output current |
3mA |
|
|
Max. Permissible Gradient |
40° |
|
|
Radiation angle |
360°×40° |
|
|
Focal Spot size |
1.0×3.5mm |
|
|
Battery |
110V /22Ah |
|
|
Power |
250W |
|
|
Exposure time |
0.1-5min. |
|
|
Exposure delay |
24s |
|
|
Temperature range |
-40°~ 70° |
|
|
Humidity |
90% |
|
|
Locating |
Magnetic |
|
|
Drive |
Four wheel drive |
|
Fuse
Φ6x30
10PCS
Screw
M16x15
54PCS
Plug and Socket
10-Pin
1 Set
