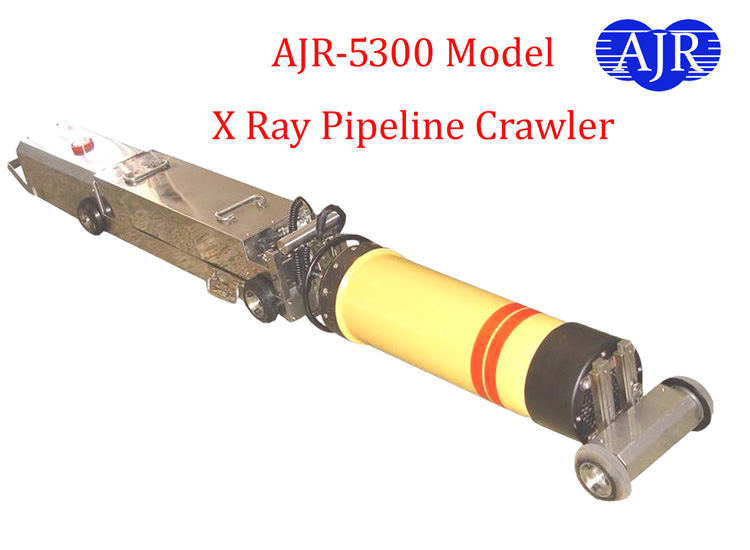

AJR-5300 X Ray Pipeline Crawler
Introduction
According to application of AJR-5000 series pipe crawlers and feedback of various detection companies, we make necessary upgrading and thorough reconstruction for crawlers as well as overturning innovation for original circuits and working circuits of detector. All technical indexes and service performances of crawlers are more reasonable and individual, which fully reflects the philosophy of “People-oriented” of design unit.
This machine is a novel crawler which is entirely different from previous ones in design and operation of circuits. We hope that customers can duly communicate with us in case of any problem occurring during operation. We will make great efforts to reconstruct the equipment on the basis of this to bring more user-friendly and applicable equipment.
AJR-5300 pipeline crawlers are widely used in welds quality detection of long-distance pipes with high efficiency, high radiograph quality and imaging sensitivity, low fault rate as well as safe, reliable and convenient and flexible operation.
Technical Data
Model
AJR-5300
Pipe DiameterRange
273—710mm
Weight
Crawler
24Kg
Battery
32.5Kg（2PCS）
X-ray generator
16Kg
Locator
2.8Kg
Dimensions
Crawler
1180*230*160mm
X-ray generator
205*205*635mm
Crawling speed
15-18m/min.
Crawling distance(Round trip)
≥10Km
Locator error
±5mm
Max. output voltage
200Kv
Max. output current
3mA
Max. Permissible Gradient
27°
Radiation angle
360°×40°
Focal Spot size
1.0×3.5mm
Battery
120V /10Ah
Power
250W
Exposure time
0.1-5min.
Exposure delay
24s
Temperature range
-40°~ 70°
Humidity
90%
Locating
Magnetic
Drive
Four wheel drive
Supplied Accessories
Fuse
Φ6x30
10PCS
Screw
M16x15
54PCS
Plug and Socket
10-Pin
1 Set
