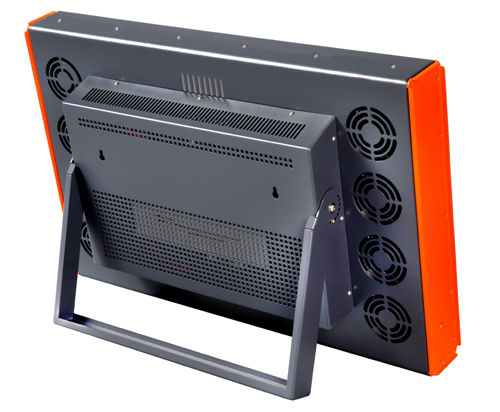

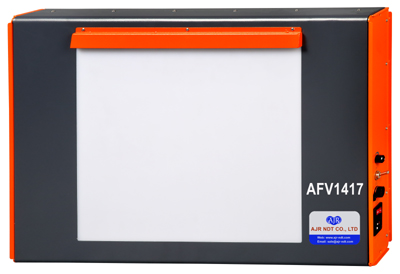

AFV1417 Large Screen LED X Ray Film Viewer
Introduction
The high efficiency LED Industrial X-Ray Film Viewer AFV1417 combines advantages of both domestic and foreign film viewers, overcome various defects of traditional fluorescent lamp film viewers, such as low luminance, poor contrast and short lifetime. The film viewer AFV1417 meets GB/T19802-2005; EN25580:1992 and IS0 5580:1985 standard. Due to the portable, rugged and smart design, they are extremely suitable for fieldwork. It will come to be your right-hand man of you for sure.
Features
lDesign: Modern, Stylish and Simple
lEasy to control: Optimized right-side Panel control design
lMulti channel precise brightness controller
lHigh stability power supply
lBuilt-desktop stand and hanging hole
lMaximum Light Intensity: >100,000cd/㎡
lEasily View: >4.0 density
lPure White LED Light
l50,000 Hours Lamp Life
lLow Power Consumption
lCool Operation
Main Specification
|
Max. Light Intensity |
0-100,000cd/㎡ adjustable |
|
Control Mode: |
Manual / foot-switch |
|
Dimmer Control |
0% to 100% continuous |
|
Film Density: |
> 4.0 density (More than 4.0 D) |
|
Uniform Viewing Area: |
98% full Screen |
|
Cooling Method: |
Air cooling |
|
Surface Temperature Rise: |
< 18° Continuous operation for 24 hours |
|
LED Light Life |
50,000 Hours |
|
Size of Viewing Window |
43cm×36cm (L×W) 17"×14"(L×W) |
|
Power Requirement |
AC: 85~277 VAC / 47~60Hz |
|
Power Consumption |
600W |
|
Dimension |
75cm×43cm×6cm +6cm (L×W×H) |
|
Weight |
20 kg |
