AJR NDT: AUFL-8

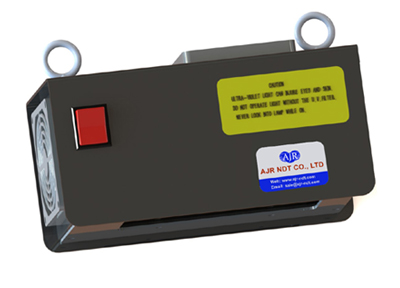

Stationary UV LED Flood Lamp
Characteristics
ØSuper energy saving.
ØLight source average service life reaches 30000 hours.
ØThe content of UV-B / UV-C is 0.
ØUV-A flux 10000uW/cm².
ØWhite light content less than 22 Lux (< 22 Lux ).
ØInstant ON/OFF, no Warm-Up time for full Intensity.
ØContinuous working outside surface temperature＜8K (8℃).
ØIntensive radiation for curing UV reactive coatings, adhesives, compounds and fluorescence testing.

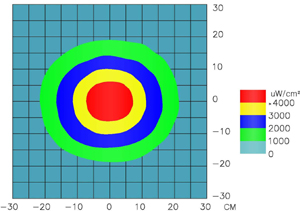

UV Irradiation Distribution Map

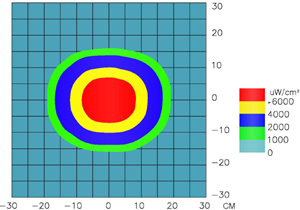

380mm Calibration 600mm Calibration

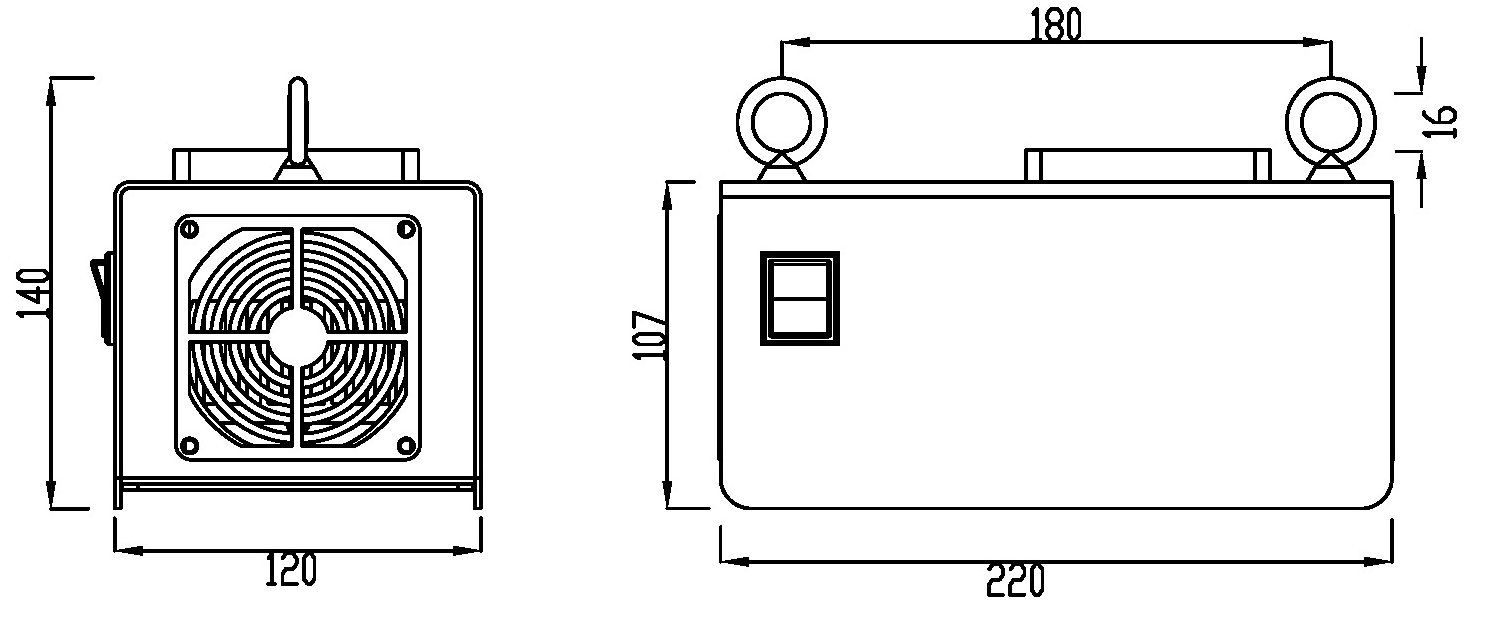

Outline Dimension Drawing
(Unit: mm)
Specification
Item
Parameter
Form
Hang type stationary UV flood
UV(Light)-FLUX
Room
temperature 25℃ at 380mm
>10000uW/cm²
The
effective cover area at 380mm
300 x 350mm
Wavelength
Room temperature 25℃, 365nm±3nm（UV A）
UV B / UV C
0
White light content
<22 Lux
FLUX error
0-40℃: ±10％
Light distribution characteristic
Center light distribution
Power source
AC100-240V, 50/60Hz
Power
UV LED-24VA (8 Pcs x 3W)
Overall dimensions
220mm
(W) x 120mm (D) x 140mm (H)
Weight
3.6kg
