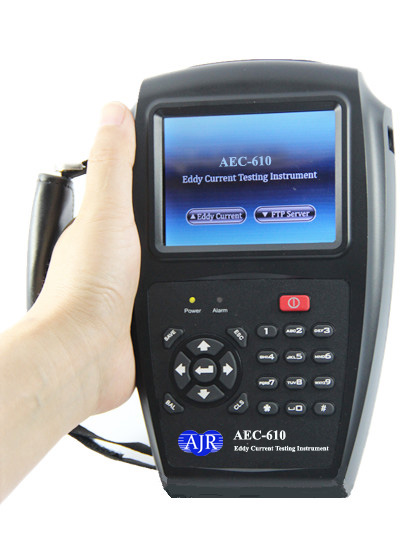

AJR NDT AEC610 Portable Eddy Current Flaw Detector

Introduction

It has been proved by research that, operate smart keyboards with thumb is much easier than with other fingers because it has less joints. AEC610 takes this advantage to realize one-finger operation. Moreover, with the latest digital electronic technology and microcomputer technology, this instrument can offer not only extremely convenient operation, but also reliable and stable high performance.

AEC610 is designed with advantages of impedance display mode and micro power. It can be used for the inspection of various flaws. The instrument case is made from light and wear-resistant material to make it sturdy and durable.

AEC610 has high sensitivity for discontinuities of metal materials, such as cracks on copper pipe surface, puckers and scars of steel pipe, pits, scratches, wear scars, transverse fissures or separation layers etc. The no-directional function is specially designed for weld inspection.

Besides the man-machine dialog and the special digital electronic balance technology, AEC610 has a broad frequency range from 64Hz to 5MHz which is appropriate for inspection requirement of various metal materials. Since designed with full digital technology, parameters for various applications can be saved for future use. The selection of probe completely depends on users testing requirements.

AEC-610 complies with standards: JB/T 10658 and EN1711.

In-built lithium polymar batteries, 5.5hours continuous working time, removable battery can be charged with separate charger.

Features

Fast digital/analogue electronic balance

Automatic/manual amplitude and phase measur

Special unequal amplitude/phase alarm mode

Delay disappear of signal track

Impedance plane and stripe curve displays

Real-time memorize multi-track eddy current signal

Can match with absolute, differential probe, special weld probe etc.

High resolution color LCD screen (visible clearly in the sun)

Automatic display of calendar and time

Menu type man-machine dialog (English)

Communication by USB port(connect with USB and other removable storage devices)or network port(connect with PC)

The equipment can continuously work for more than 5.5 hours with battery powered

Application

Weld inspection with no-directional function

Surface crack detection (blades, wheel hub, gear, bolt hole, auto parts and other components)

Subsurface crack detection and multi-layer structure,corrosion detection

Surface crack detection of weld with anti-corrosion layer (bridges, ships, oil platforms, steel structure, etc.)

Detection of tubes and pipes, bars, wires etc.

Pressure vessel weld inspection

Specifications

Frequency range: 64 Hz~5 MHz (adjustable)

One Independent optional frequencies

Gain range: 0~90 dB, adjustable in step of 0.5 dB

Phase rotation: 0~360 , adjustable in step of 1

Fast digital / analogue electronic balance

Impedance plan display window

Delay disappear of signal track

Menu type man-machine dialog

Communication by USB port (connect with USB and other removable storage devices) or network port (connect with PC)

Digital filter

Optional in absolute probe, differential probe and self- comparing probe

The alarm area is adjustable

Battery: 7.4V lithium battery

Range of operating temperature: -25 ℃ ～ +60 ℃

Boundary dimension: 183x120x44 (mm)

Weight: 600g
