AJR NDT 70020/70030/70040 Industrial Videoscope / Endscope / Borescope
Features

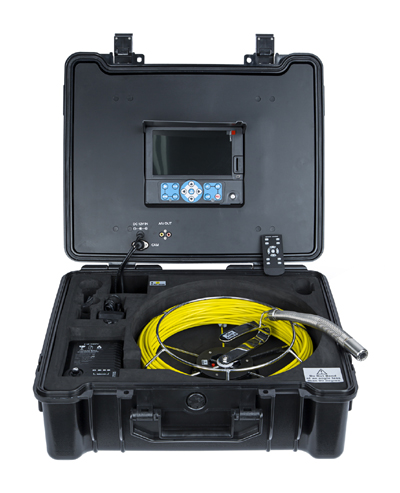

Video pipe inspection camera with 30m fiberglass cable and 7" monitor with DVR feature
1/3 inch Sony CCD camera, 135° wide vision angle
Stainless steel super short camera head, IP 68 water proof level
Sapphire glass lens cover, 12 high light white LEDs
Diameter of camera: 23 mm
Rubber ring and plastic center protectors for camera head
7" LCD color monitor
SD Card slot to store still pictures or videos
One push record button
LED brightness control buttons
Video image rotate button
With microphone for audio recording
Video-Out to connect to TV
Rechargeable battery lasts up to 8 hours
On-Screen date and time
30m fiberglass push rod
Rotable cable reel mounted in case for convenient operation
Ability to go through bend pipes at diameter of 45mm
Waterproof ABS suitcase with all parts included
Specifications
|
Camera Head |
|
|
Sensor: |
1/3" Sony CCD |
|
Head Dimension: |
23mm (dia.) ×65mm (length) |
|
Camera Material: |
304# Stainless Steel |
|
View Angle: |
135° wide angle |
|
Lens Cover: |
Sapphire glass |
|
Leds: |
12 High Bright White LEDs |
|
Water Proof: |
IP68 |
|
Cable Reel |
|
|
Material: |
Fiberglass rod cable |
|
Wheel: |
Stainless steel wheel |
|
Cable Length: |
20, 30 or 40m optional |
|
Connector: |
Gold touch-point connector |
|
Rotation: |
Rotable in the suitcase |
|
Wheel diameter: |
33cm |
|
Cable diameter: |
5.4mm |
|
LCD Display and DVR |
|
|
LCD Resolution: |
800*480 pixels |
|
Video Compress: |
MPEG-4 |
|
Recording: |
Video and audio recording |
|
Picture: |
Picture shot function |
|
LCD Size: |
7 inch |
|
Language: |
9 Languages |
|
Panel Control: |
Any Funtions through buttons |
|
External Memory: |
SD Card (Max. 32GB) |
Packing List
|
No. |
Item |
Qty. |
|
1 |
Inspection camera with 12 LEDs |
1 |
|
2 |
USB digital video recorder with remote control |
1 |
|
3 |
30m fiberglass cable |
1 |
|
4 |
Stainless steel reel |
1 |
|
5 |
12v rechargeable battery |
1 |
|
6 |
18cm (7") TFT LCD screen |
1 |
|
7 |
Car Charger |
1 |
|
8 |
Plastic Guide |
1 |
|
9 |
Screws and Camera Head Waterproof Seal |
1 |
|
10 |
Foam Protector |
2 |
|
11 |
Screw Driver for plastic guide |
1 |
|
12 |
Power Adapter |
1 |
|
13 |
Battery Cable |
1 |
|
14 |
Carrying Box |
1 |
|
15 |
Manual |
1 |
