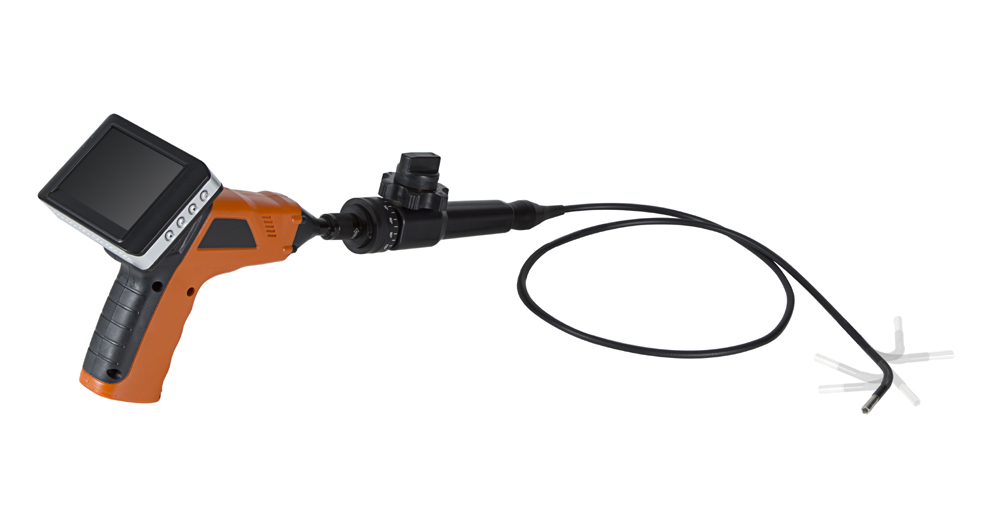

AJR NDT 35045 Model Industrial Videoscope / Endscope / Borescope

Product Infomation

AJR NDT 35045 model is a videoscope / endscope / borescope that designed with a 4.5 mm diameter camera tube (1m length) and a 3.5 inch wireless receiving monitor with DVR. The LCD monitor is detachable and can receive video signal wirelessly from the camera. It’s widely used in visual inspections of various hard to reach places, especially for inspection of automotive, HVAC, plumbing, cable routing, electrical and general contracting, etc.

Model:AJR NDT 35045
Specifications:3.5 inch screen, 4.5mm diameter camera
Color:Orange
Brand:AJR NDT

Details

AJR NDT 35045 Model Industrial Videoscope / Endscope / Borescope

Introduction

Features
2.4GHz wireless inspection camera with recording monitor
CMOS, 380TV lines
3.5" TFT-LCD wireless monitor with rechargeable li-battery and SD card recording (SD card is not included, support Max. 16GB SD card)
Mini Waterproof camera with 1m flexible extendable tube
Night vision range for camera: 1.5m
Waterproof level for camera: IP67
With three useful accessories: hook, mirror and magnet

Applications

Home inspection: Inspect in walls for mold, insect infestation, electrical wire or water pipe location
HVAC: Inspect inside ducts, behind motors and compressors
Automotive: View inside or around engines and transmissions
Government: Safety and security inspections
Industrial: Inspect weld integrity, process equipment, gears, molding machines
Aerospace: Aircraft inspections for contamination, debris, cracks or other damage

Specifications

Camera
Pixels	640 x 480
Transmission Frequency	2.4GHz
Modulation Type	FM
Bandwidth	18MHz
Transmission Range	10m unobstructed view
Viewing Angle	63°
Viewing Distance	15 to 25cm
Shaft Diameter	9mm
Working Length	1m
Camera Dimensions	186 x 145 x 41mm
Weight	530g
Monitor
LCD Screen Type	3.5” TFT
Pixels	320 (R.G.B.) x 240
Video Output Level	0.9 to 1.3V@75Ω
Frame Rate	10, 15, 20, 25, 30FPS
Video Resolution	960 x 240 (Avi format)
Image Resolution	640x 480 (Jpeg format)
Monitor Dimensions	100 x 70 x 25mm
Operating/Charge Time	1.5 hours/3 hours
Weight	140g

Packing List

No.	Item	Qty.
1	Main Machine	1
2	Monitor	1
3	USB Cable	1
4	Extension Tools(Mirror, Hook, Magnet)	1 set
5	Video Output Cable	1
6	AC Adaptor	1
7	Carrying Box	1
8	Manual	1
