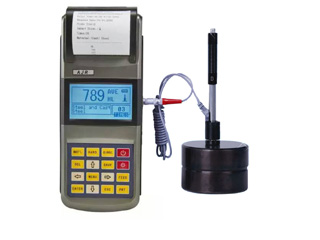

AJH580 Portable Hardness Tester

Product Infomation
The new generation of portable hardness tester AJH580 offer the most affordable but accurate testing solution for on-site testing in workshops and in field operation for quality assurance. Any metal product with a minimum solid mass of 1,5 kg or more can be tested in any hardness scale. Test results appear immediately on screen. With mini thermal printer, user can printe test data on project site. With software, customer also can download testing data to PC from the machine
  • Model:AJH580
  • Specifications:(170-960)HLD,(19-651)HB,(13-100)HRB,(17-68.5)HRC,(59-85)HRA,(80-976)HV、(30~110)HS
  • Color:Grey and Red
  • Brand:AJR
Details

AJH580 Portable Hardness Tester

Advantages

  • Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL and three types of strength values immediately.
  • Large 3 inchi screen LCD, showing all functions and parameters. With EL background light.
  • Seven impact devices are available for special application. Automatically identify the type of impact devices, and with the user calibration function.
  • Test at any angle, even upside down.
  • Large memory could store 500 groups (Relative to average times 32~1 ) information including single measured value, mean value, impact direction, impact times, material and hardness scale etc.
  • Battery information showing the rest capacity of the battery and the charge status.
  • Original imported high speed thermal printer support the immediate printing function.  It can save data permanently.
  • NI-MH rechargeable battery as the power source. Charge circuit integrated inside the instrument. Continuous working period of no less than 150 hours (EL off and no printing).
  •  Auto power off to save energy.
  •  Excellent after-sale service system for high quality productstwo years’ guarantee and all life maintenance. Easy to buy and comfortable to use.

Main Application

  •   Die cavity of molds
  •   Bearings and other parts
  •   Failure analysis of pressure vessel, steam generator and other equipment
  •   Heavy work piece
  •   The installed machinery and permanently assembled parts
  •   Testing surface of a small hollow space
  •   Material identification in the warehouse of metallic materials
  •   Rapid testing in large range and multi-measuring areas for large-scale work piece

Technical Specifications

  •  Error and repeatability of displayed value:

No.

Type of impact device

Hardness value of Leeb standard hardness block

Error of displayed value

Repeatability

1

D

760±30HLD

530±40HLD

±6 HLD

±10 HLD

6 HLD

10 HLD

2

DC

760±30HLDC

530±40HLDC

±6 HLDC

±10 HLDC

6 HLD

10 HLD

3

DL

878±30HLDL

736±40HLDL

±12 HLDL

12 HLDL

4

D+15

766±30HLD+15

544±40HLD+15

±12 HLD+15

12 HLD+15

5

G

590±40HLG

500±40HLG

±12 HLG

12 HLG

6

E

725±30HLE

508±40HLE

±12 HLE

12 HLE

7

C

822±30HLC

590±40HLC

±12 HLC

12 HLC

  • Measuring range:HLD(170~960)HLD
  • Measuring direction:0°~360°
  • Hardness Scale:HL、HB、HRB、HRC、HRA、HV、HS
  • Display:segment LCD
  • Data memory:500 groups max.(relative to impact times 32~1)
  • Printing paper: width is (57.5±0.5)mm, diameter is 30mm.
  • Battery pack: 6V NI-MH
  • Battery charger: 9V/500mA
  • Continuous working period:about 150 hours(With backlight off, no printing)
  • Communication interface:USB2.0
  • Outline dimensions:212mm×80mm×32mm

Configuration

Table 1-2



No.

Item

Quantity

Remarks

Standard Configuration

1

AJH580 Main unit

1



2

D type impact device

1

With cable

3

Standard test block

1



4

Cleaning brush (I)

1



5

Small support ring

1



6

Battery Charger

1



7

Paper for printing

1



8

Manual

1



9

Instrument package case

1



10

DataPro software

1



11

Communication cable

1



12

Calibration Certificate

1



Optional Configuration

13

Cleaning brush (II)

1

For G type impact device

14

Other type of impact devices and support rings



Refer to Table 3 and Table4 inthe appendix.
