Ultrasonic Test Block

DSC TEST BLOCK

Technical Specifications & Documentation >>

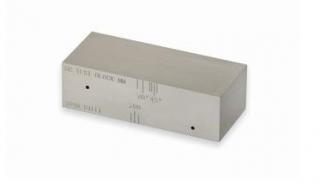

SC TEST BLOCK

AWS-type block used for shear wave sensitivity calibration.

Technical Specifications & Documentation >>

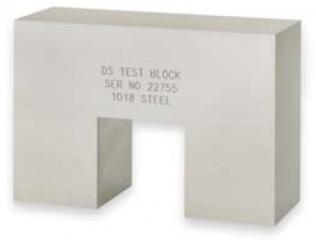

DS TEST BLOCK

Technical Specifications & Documentation >>

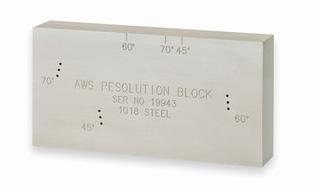

AWS (RC) RESOLUTION BLOCK

AWS (RC) RESOLUTION BLOCK

Technical Specifications & Documentation >>

DC TEST BLOCK

DC block

Technical Specifications & Documentation >>

ASME 19, ASME 38 Test Block

ASME19, ASME38 UT Test Block

Technical Specifications & Documentation >>

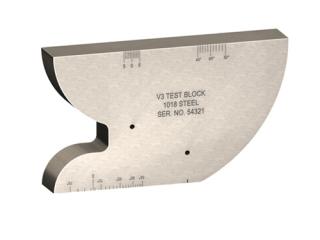

V3 Type Ultrasonic Calibration Test Block

V3 UT test block is used for calibrating ultrasonic flaw detection equipment in both laboratory and on-site conditions. This block is intended to function as a more compact and light-weight alternative to V1 or IIW-Type Test Blocks. Includes 25mm, 50mm, and 100mm radii, (2) 3.0mm diameter through holes, engraved reference mark scales, and a 0.4mm wide x 2.5mm deep slot.

Technical Specifications & Documentation >>

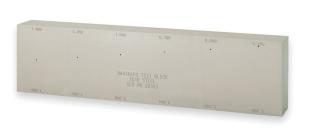

NAVSHIPS Ultrasonic Test Block

NVSHIPS block is used for distance amplitude correction, sensitivity levels and flaw depth information.​Used for distance amplitude correction, sensitivity levels and flaw depth information. Contains six 3/64'' diameter side-drilled through-holes at distances of 0.250'' to 2.750'' in 0.250'' increments, and an additional near-surface hole at 0.125''. MTDs are engraved near both scan edges on one face. In accordance with NAVSEA TECH PUB #T9074-AS-GIB-010/271, Figure 6-7.

Technical Specifications & Documentation >>

Ultrasonic Test Block IOW Type

IOW Ultrasonic Test Block

Technical Specifications & Documentation >>

A Type Phased Array Block

Phased Array Type A Block, PA ultrasonic test block

Technical Specifications & Documentation >>
