ATG140 Ultrasonic Thickness Gauge

Product Infomation
ATG140 is a digital ultrasonic thickenss gauge. The ATG140 design with bright back light which can make the data more clearly in dark plack. And also with the software, customer can connect the machine with computer. Based on the same operatinfg principles as SONAR, the instrument is capable of measuring the thickness of various materials with accuracy as high as 0.01 /0.1mm. It is suitable for a variety of metallice and non-metallic materials.
  • Model:ATG140
  • Specifications:0.1 / 0.01 resolution
  • Color:Blue
  • Brand:AJR
Details

ATG140 Ultrasonic Thickness Gauge

Features:

l        The machine can test on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.

l        Transducer models are available for special application, including for coarse grain material and high temperature applications.

l        10MHz and 7MHz transducer can use for thin material. The transdcuer touch point can reach to minium 10mm.

l        Probe-Zero function: Veloctiy Calibration function.

l        Two-Point Calibration function.

l        The sound velocity of a material can be measured using a test piece with known thickness.

l        Gain adjusting function can easy to test the cast iron material.

l        Low limit and high limit alarm function.

l        LED backlight display, convenient to use in dark environment.

l        No-slip design with good touch feeling.

l        Coupling status indicator shows the coupling status.

l        Battery information indicates the rest capacity of the battery.

l        Auto sleep and auto power off function to conserve battery life.

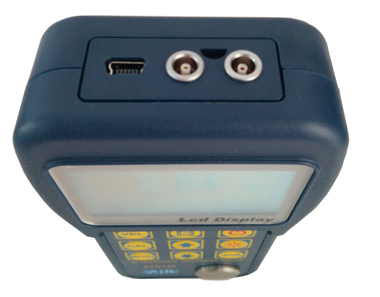

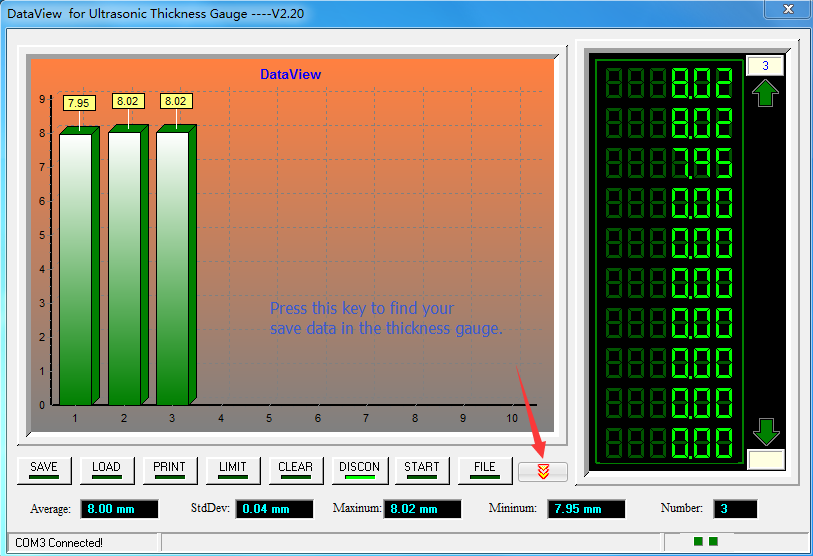

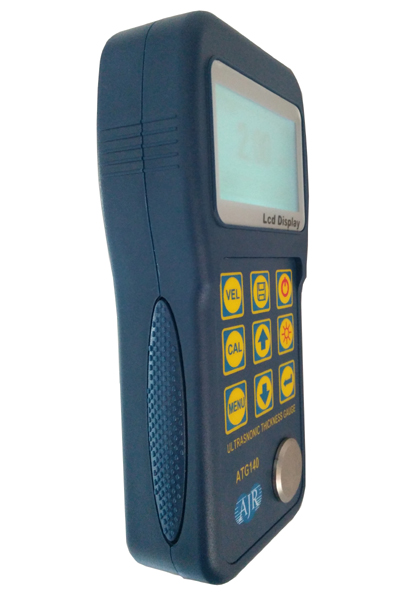

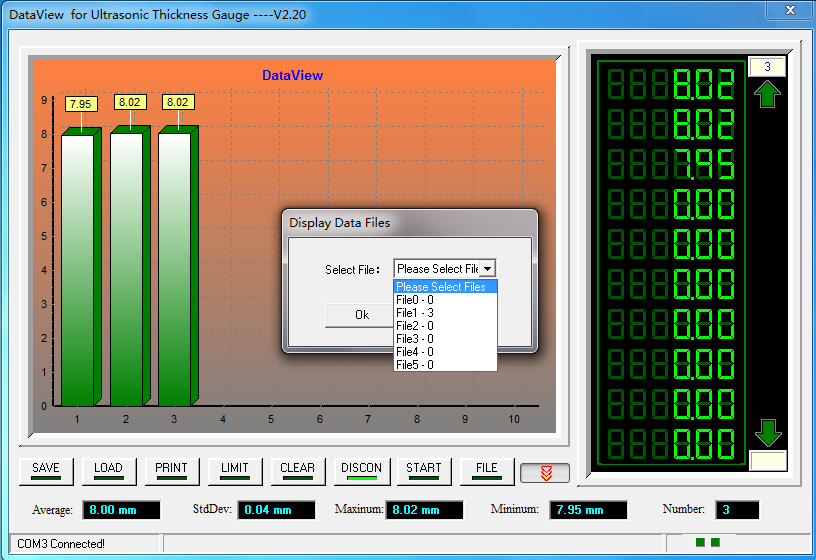

l        Data software for connectting machine to PC and download memory data to PC.

l        Optional thermal mini-printer to print the measured data via USB port.

Technical Parameter:

Measuring Range

0.75mm~300.0mm ( 0.03inch~11.8inch )

Units

Metric / Imperial unit seletable

Sound Velocity Range

1000m/s~9999m/s ( 0.039~0.394 in/μs )

Display Resolution

0.01mm or 0.1mm ( lower than 100.0mm )
0.1mm ( more than 99.99mm )

Accuracy

± (0.5%Thickness+0.04) mm,

depends on materials & conditions

Data Memory

5 files ( up to 100 values for each file ) of stored values 5 Sound Velocity of stored values

Power Source

2pcs 1.5V AA size batteries 250 hours typical operating time ( LED backlight off )

Outline Dimensions

150mm*74mm*32mm

Workpiece Surface Temperature

- 10 ~ 60 ℃

Minimum Thickness Value Capture Capacity

With a minimum thickness value capture capacity

Measurement Cycle

4 times / SEC, scanning of single point measurement mode 20 times per second

Weight

238 g

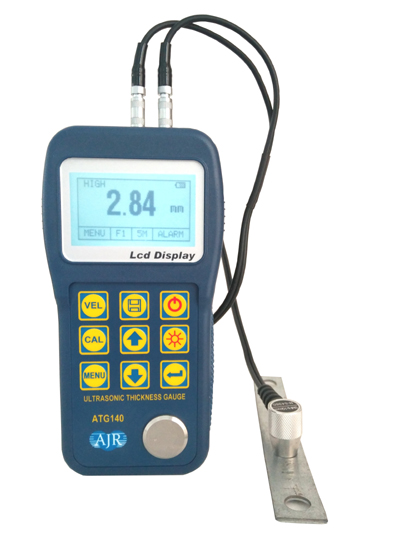

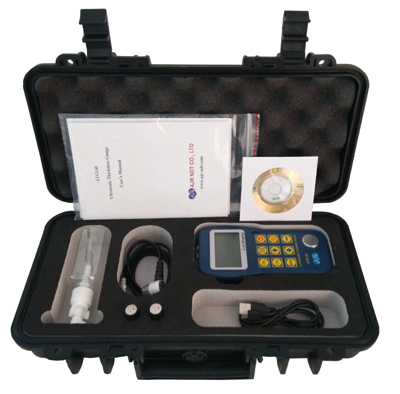

CONFIGURATION



No

Item

Qty.

Standard

1

ATG140 Main body

1

2

Transducer: P05/90°

1

3

Couplant Bottle

1

4

Instrument Case

1

5

Calibration Certificate

1

6

Operating Manual

1

7

Warranty Card

1

8

DataPro for PC

1

9

Communication Cable

1

Optional

10

Transducer: P02

1

11

Transducer: P07

1

12

Transducer: P10

1

13

Transducer: PHT5

1

14

Mini thermal printer

1

15

Print cable

1


TRANSDUCER SELECTION

Probe

Frequency / Diameter

Measuring range

Min. area:

Dia x  Thickness mm

Application

P05

5MHz, 10mm

1.2mm~300.0mm (Steel)

20×3mm

General straight probe

P05/90°

General bent probe

P07

7MHz, 6mm

0.75mm~80.0mm (Steel)

15×2mm

For thin pipe wall or small curvature pipe wall measurement

P10

10MHz, 4mm

0.75mm~12.0mm (Steel)

10×1mm

PHT5

5 MHz, 14mm

3.0mm~200.0mm (Steel)

30x3mm

High temperature 500℃

P02

2 MHz, 12mm

3.0mm~300.0mm(Steel)

5.0mm~40.0mm(Casting steel)

20x5mm

Casting work piece: for thick, highly attenuating, or highly scattering materials
