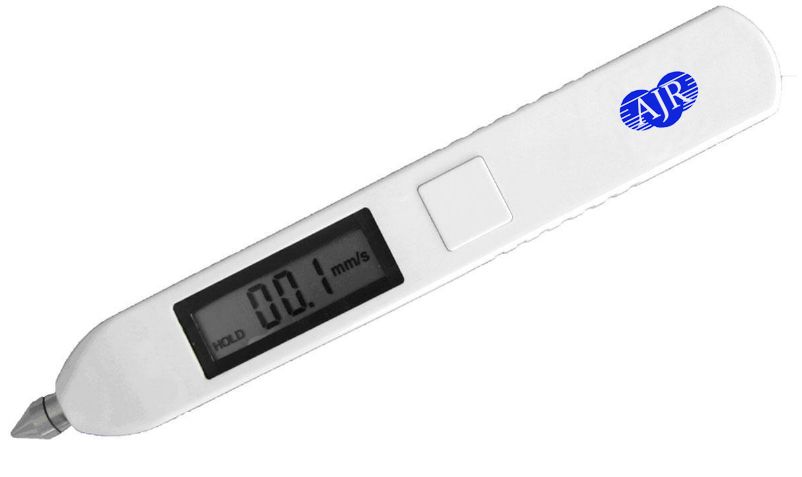

AVM-60 Series Pen Type Vibration Meter

Product Infomation
AVM-60 series rechargeable vibration pen with integrated acceleration sensor, compact and lightweight body, easy to carry, mainly used for motors, fans, pumps, compressors, machine tools and other equipment, a quick check, for the mechanical malfunction of the preventive check; particularly suitable for Inspection personnel.
  • Model:AVM-6010 / AVM-6020 / AVM-6030
  • Specifications:5% ± 2 vibration of words
  • Color:White
  • Brand:AJR
Details

AVM-60 Series Pen-Type Vibration Meter

Introduction

AVM-60 series rechargeable vibration pen with integrated acceleration sensor, compact and lightweight body, easy to carry, mainly used for motors, fans, pumps, compressors, machine tools and other equipment, a quick check, for the mechanical malfunction of the preventive check; particularly suitable for Inspection personnel.

Features

Used for fast failure detecting of motor, electric fan, pump, air compressor, machine tools and so on.

Compact size, small weight, easy handling

Prompt testing of vibration on the workshop machines

For quick checking of unbalance misalignment, bearings and gears

Guard against mechanical malfunction

Holding tested value for 40 seconds

Automatic switch off after 40 seconds

AVM-6010 is used specially for velocity testing

AVM-6020 is used specially for displacement testing

AVM-6030 is used for testing of acceleration

Specification

Model

AVM-6010

AVM-6020

AVM-6030

Parameters

RMS of vibration velocity (mm/s)

Displacement

Acceleration

Testing range

Velocity:
0.1mm/s~ 199.9mm/s

Displacement:
0.01 mm ~ 1.999 mm (peal~peak)

Acceleration:0.01m/S2-199.9m/S2(peak)

Frequency range

Velocity:
10Hz ~ 1kHz

Displacement:
10Hz
500Hz

Acceleration: 10Hz ~ 1kHz

Accuracy

±5%

Display

31/2 digits LCD

Power supply

two button batteries(LR44 or SR44)

Battery capacity

Approx. 4.5 hours working continuously

Operating
Temperature

0℃ ~ 40℃

Humidity

<85%

Dimension

150mm×22mm × 18mm

Dimension
Weight

55g (including batteries)

Standard delivery

Main unit

Battery

Protection pocket

AJR certificate

Instruction manual

Warranty card
