Steel Wire Rope Flaw Detector ART-11S

Product Infomation
ART-11S Steel Wire Rope Flaw Detector is made according to National Metrology Act and Provisions of State Production Safety Law. The machine also meets American ASTM1571 standard and Shanghai Q/NYNAY01 standard (National Third Party Qualification Institute Standard).It is widely used in mining, cable, lifting equipment, elevator, port machinery and rope bridge industry.
  • Model:ART-11S
  • Specifications:Φ1.5-300 mm (required to configure the different series specifications sensors)
  • Color:Silver
  • Brand:AJR
Details

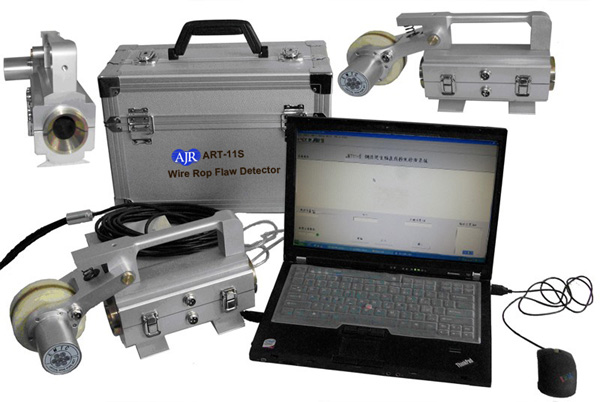

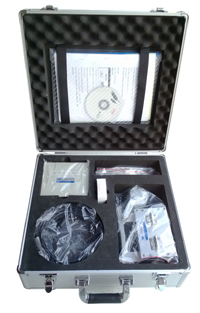

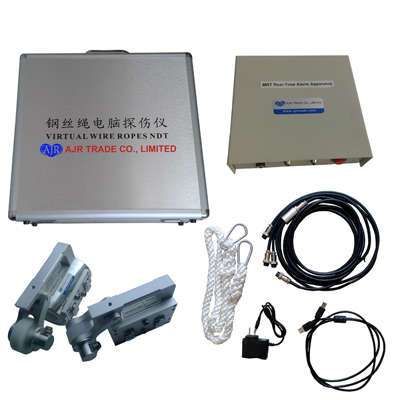

ART-11S series Steel Wire Rope Flaw Detector

Features:

  • This kind machine can test various external broken wires online in the wire rope, corrosion, deformation, loose share jump wire.
  • The test report can meet various industry standards. At the same time, it can also form the root of the broken wires number and the broken wires of the area with total basal area ratio.
  • The machine can test the wire sample and analysis the sample with the computer system.

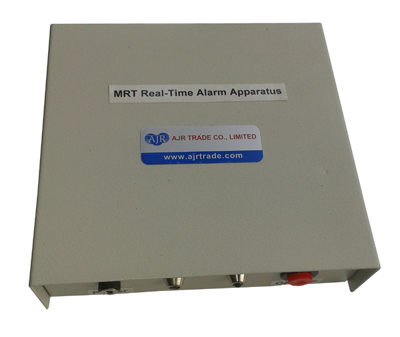

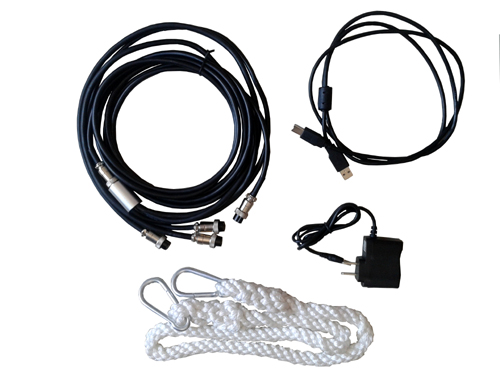

  • The machine design with USB interface which can connect with computer directly. The machine is designed with real- time display online sound and light alarm function.

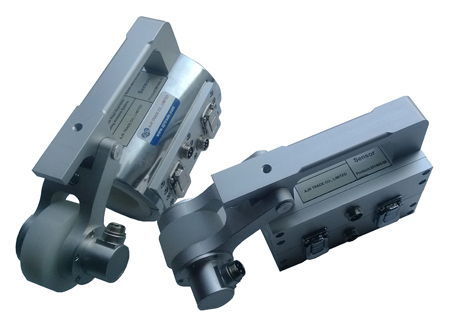

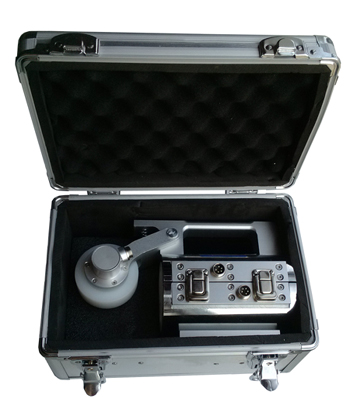

  • The transducer is axially magnetized structure which can magnetize the wire rope enough. Then it can ensure the testing result more accurate.
  • The transducer case is aluminum alloy material. This kind material is water-proof, dust-proof, shock-proof and moisture-proof.
  • Stable and reliable performance can make the testing result more accurate and anti-interference
  • Software can be used with Windows98/2000/xp/Vista various computer operating system.
  • This machine is made according to National Metrology Act and Provisions of State Production Safety Law. The machine also meets American ASTM1571 standard and Shanghai Q/NYNAY01 standard (National Third Party Qualification Institute Standard).
  • This machine is widely used in mining, cable, lifting equipment, elevator, port machinery and rope bridge industry.

Specification:

Detection Range of Rope Diameter:

Φ1.5-300 mm(required to configure the different series specifications sensors)

The Relative Speed of The Sensor With The Wire Rope :

0.0-6 .0m / s :0.3-1 .5m / s

Sensor Guide Sleeve and Wire Rope Gap :

2-6 mm,

Allows Gap :

0-15mm

The Detection Capability of The Defects of The Broken Wire (LF)

Qualitative:

single centralized broken wire qualitative detection accuracy rate of 99.99%

Quantitative:

single centralized broken wire at the root of the number allows, there is an equivalent of root misjudgment

The single centralized broken wires in the number of error-free quantitative detection accuracy rate of more than 100 times

 ≥ 92%

The quantitative variations of the metal cross-sectional area ratio (LMA)

The detection sensitivity repetitive permissible error:

± 0.055%

Indication error of detection accuracy:

± 0.2%

Location (L) detection capabilities:

Detection length indication the percentage of error:

 ± 0.2%

Power supply:

computer battery-powered 5V

Sensor weight:

 Common Specifications <10kg

Ambient temperature:

-10 °C ~40 °C

Atmospheric pressure:

86 ~ 106Kpa

Relative humidity:

≤ 85%


Transducers Type:

Transducer Type

Rope diametermm

1

10

2

15

3

20

4

25

5

30

6

35

7

40

8

45

9

50

10

56

11

60-69 Customized

12

70-79 Customized

13

80-89 Customized

14

90-99 Customized
