AJR NDT: 500 Series 4-Way Articulating Industrial Videoscope / Endscope / Borescope
Introduction

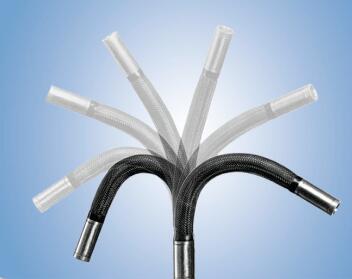

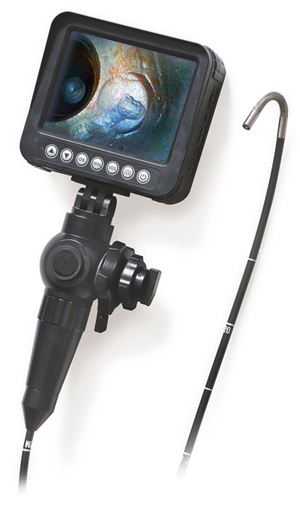

The AJR 500 series handheld industrial videoscope image screen and the operation part adopt the integrated and portable structure design, which is light and convenient to carry. This instrument adopts the latest low illumination digital color photoelectric coupling imaging device and LED lighting. The front end of the camera can be bend in 2 directions: up, down or four directions: up, down, left and right. By adjusting the camera head, clear inspection images can be obtained in different inspection environments. The instrument has8Gmemory TF card, which can magnify, photograph, record, playback, store, delete, set detection time and date in real time on the detection site. After detection, the TF card can be taken out and connected directly with the computer for reading and processing. The instrument is powered by large capacity lithium batteries and can work continuously for up to 8 hours.
Specifications
|
Optical system |
Field of View Angle |
80° |
||
|
Direction of vision |
0°（Direct vision） |
|||
|
Optimum working distance |
10～100 mm |
|||
|
Resolving power |
6.25 LP/mm |
|||
|
Insertion part |
Camera Diameter |
4mm, 6mm, 8mm, 10mm, 13mm |
||
|
Insertion form |
Double-layer stainless steel wire mesh |
|||
|
Effective length |
1M, 2M, 3M, 5M, 6M,10M |
|||
|
Snake bone |
Bending direction |
Upper, down, left and right |
Bending angle |
All of them are larger than 90° |
|
Video system |
Display mode |
Full screen display |
||
|
Horizontal Resolution |
570 line. 1 million pixels |
|||
|
SNR |
50 dB |
|||
|
Minimum illumination |
0.5 LUX |
|||
|
Image display (LCD) |
Screen size |
5-inch LCD true color |
||
|
Pixels |
640×480 |
|||
|
Standard system |
PAL / NTSC Automatic conversion |
|||
|
Power Supply |
Charging Input Power Supply |
220V 50HZ |
||
|
Output Voltage of LithiumBattery |
DC 3.7V |
|||
|
Lithium battery capacity |
4.4 AH |
|||
|
Working hours of lithium batteries |
≥8hour |
|||
|
Image Storage System |
Storage device |
Extrapolated TF Card |
||
|
Storage capacity |
8GB |
|||
|
Video resolution |
640×480, 30 Frame / S |
|||
|
Image resolution |
640×480 |
|||
|
Color System |
PAL / NTSC |
|||
|
Function |
Real-time magnification, real-time photography, video recording, review, storage, menu display, battery capacity display, time display |
|||
Configuration
NO.
Item
Qty.
1
AJR NDT 500 Series Videoscope
Main Unit With Cable
1
2
LCD Monitor
1
3
8G TF Memory Card
1
4
TF Card Reader
1
5
Charger
1
6
Flannelette
1
7
Manual
1
8
Product Qualification
Certificate
1
9
Guarantee Card
1
