AJR NDT 35170 Model Industrial Videoscope / Endscope / Borescope

Product Infomation

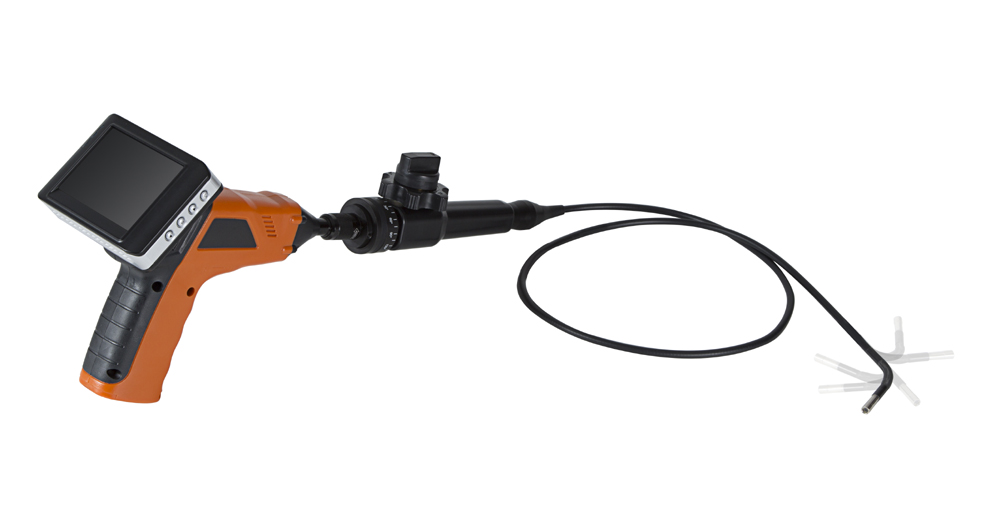

AJR NDT 35170 model is a videoscope / endscope / borescope that designed with a 17mm diameter camera tube (1m length) and a 3.5 inch wireless receiving monitor with DVR. The LCD monitor is detachable and can receive video signal wirelessly from the camera. It’s widely used in visual inspections of various hard to reach places, especially for inspection of automotive, HVAC, plumbing, cable routing, electrical and general contracting, etc.
  • Model:AJR NDT 35170
  • Specifications:3.5 inch screen, 17mm diameter camera
  • Color:Orange
  • Brand:AJR NDT
Details

AJR NDT 35170 Model Industrial Videoscope / Endscope / Borescope


Introduction

AJR NDT 35170 model is a videoscope / endscope / borescope that designed with a 17mm diameter camera tube (1m length) and a 3.5 inch wireless receiving monitor with DVR. The LCD monitor is detachable and can receive video signal wirelessly from the camera. It’s widely used in visual inspections of various hard to reach places, especially for inspection of automotive, HVAC, plumbing, cable routing, electrical and general contracting, etc.

Key Features:

2.4GHz wireless inspection camera with recording monitor

CMOS, 380TV lines

3.5" TFTLCD wireless monitor with rechargeable libattery and

SD card recording (SD card is not included, support Max. 16GB SD card)

Mini Waterproof camera with 1m flexible extendable tube

Night vision range for camera: 1.5m

Waterproof level for camera: IP67

With three useful accessories: hook, mirror and magnet

Specification

Camera

Pixels

704 x 576 (PAL)

712 x 486 (NTSC)

Transmission Frequency

2.4GHz

Modulation Type

FM

Bandwidth

18MHz

Transmission Range

10m unobstructed view

Viewing Direction

Viewing Angle 50°

Viewing Distance

15 to 25cm

Shaft Diameter

17 mm

Working Length

1m

Camera Dimensions

186 x 145 x 41mm

Weight

530g

Monitor

LCD Screen Type

3.5” TFT

Pixels

320 (R.G.B.) x 240

Video Output Level

0.9 to 1.3V@75Ω

Frame Rate

10, 15, 20, 25, 30FPS

Video Resolution

960 x 240 (Avi format)

Image Resolution

640x 480 (Jpeg format)

Monitor Dimensions

100 x 70 x 25mm

Operating/Charge Time

1.5 hours/3 hours

Weight

140g

Packing List

No.

Item

Qty.

1

Main Machine

1

2

Monitor

1

3

USB Cable

1

4

Extension Tools(Mirror, Hook, Magnet)

1 set

5

Video Output Cable

1

6

AC Adaptor

1

7

Carrying Box

1

8

Manual

1
