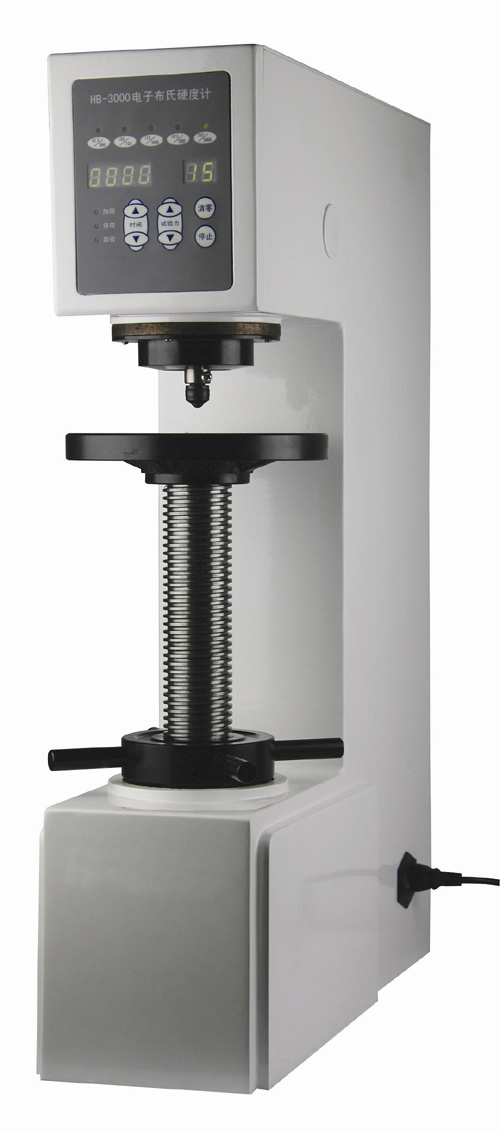

AJR HB-3000 BRINELL HARDNESS TESTER
Introduction
AJR HB-3000 Electronic Brinell Hardness Tester is designed with 10 steps testing force. So AJR HB-3000 is able to measure hardness values with each 10 Brinell hardness scales. Also AJR HB-3000 hardness tester adopts circuit type loading control system. This can ensure the machine test with high precision, high repetition, and reliability and easy operation.
Usage Range
AJR HB-3000 Brinell hardness tester which adopts heavy testing force and large indentation shown function, is apply to measure hardness value for big grain metal materials such as casting parts, nonferrous metals and alloy, various tempered steel, hardening and tempering steel, specially for soft metal such as pure aluminum, lead, tin, etc.
Technical Specifications
|
Brinell Scale |
HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000 |
|
Testing Force |
62.5kgf(612.9N), 100kgf (980.7N), 125kgf1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(9807N), 1500kgf (14710N), 3000kgf (29420N) |
|
Testing Range |
8~650HBW |
|
Min Measuring Unit |
0.005mm |
|
Magnification of Microscope |
20X |
|
Duration Time |
0~60 sec |
|
Readout of Hardness value |
Display Automatically |
|
Net Weight |
125kg |
|
Max Height of Specimen |
230mm |
|
Distance of Indenter to outer wall |
160mm |
|
Overall Dimension |
550×210×750mm(L×W×H) |
|
Power Supply |
AC220V±5%，50~60Hz |
|
Carried Standard |
GB/T231.1, GB/T231.2,JJG150 Inspection Rule |
Standard Accessories
|
No. |
Item |
Qty. |
|
1 |
AJR HB-3000 Main Machine |
1 |
|
2 |
20X Measuring Microscope |
1 |
|
3 |
2.5mm Hard Alloy Ball Indenter |
1 |
|
4 |
5mm Hard Alloy Ball Indenter |
1 |
|
5 |
10mm Hard Alloy Ball Indenter |
1 |
|
6 |
Hardness Tester Block |
3 |
|
7 |
Power Cable |
1 |
|
8 |
Large Testing Table |
1 |
|
9 |
Medium Testing Table |
1 |
|
10 |
V shaped Testing Table |
1 |
|
11 |
Plastic Protection Cover |
1 |
|
12 |
English Operation Manual |
1 |
|
13 |
Product Certificate |
1 |
