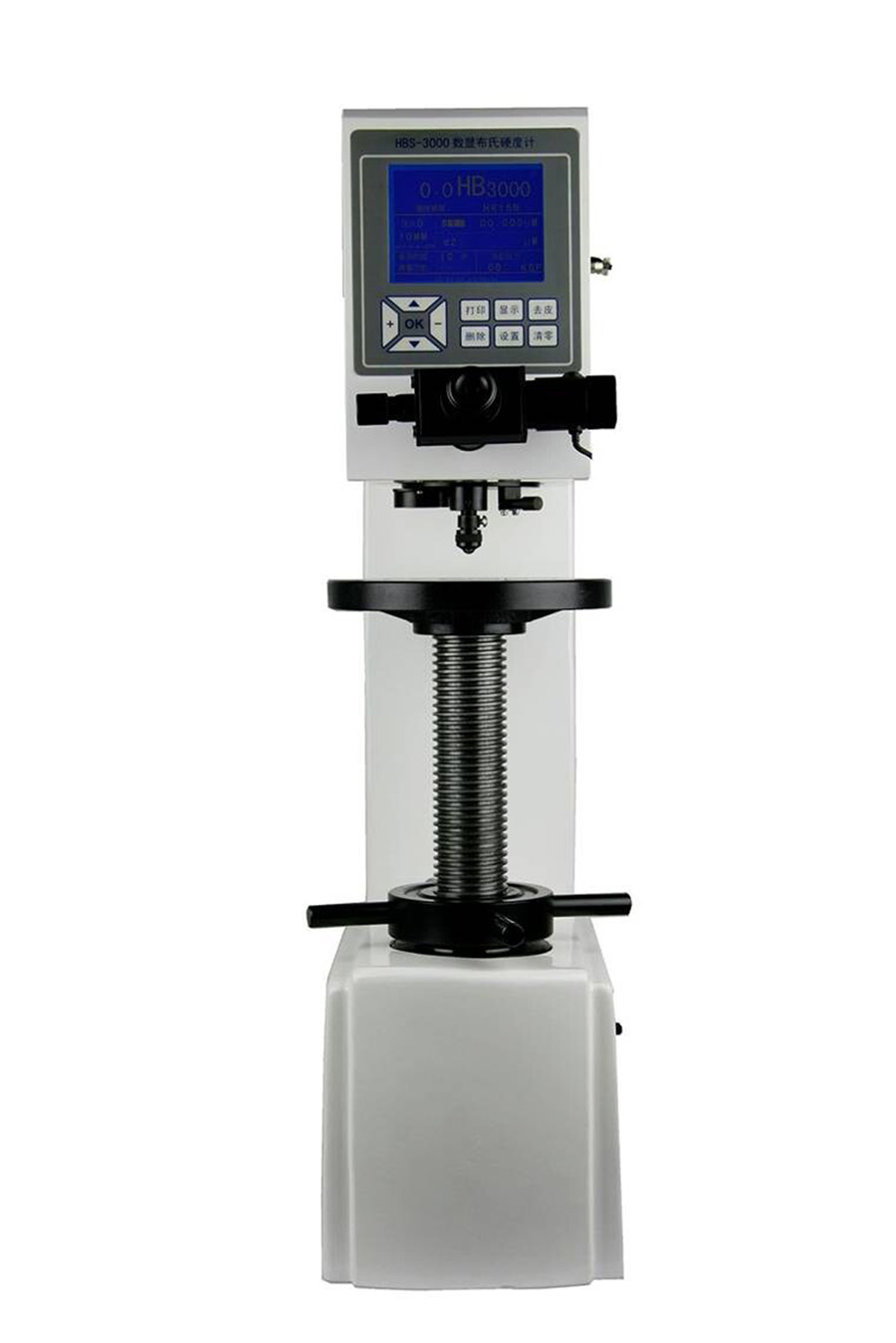

AJR HBS-3000(L) Digital Brinell Hardness Tester

Product Infomation
AJR HBS-3000(L) digital brinell hardness tester is a new generation Brinell Hardness tester. It is designed with auto loading function, computer software processing function, high resolution optical measuring system and photoelectric sensors system. This function can make the testing data shown on LCD screen and out put the test data on the internal printer.
  • Model:AJR HBS-3000(L)
  • Specifications:HBW 8-650
  • Color:Grey
  • Brand:AJR
Details

AJR HBS-3000(L) Digital Brinell Hardness Tester

Introduction

AJR HBS-3000(L) digital brinell hardness tester is a new generation Brinell Hardness tester. It is designed with auto loading function, computer software processing function, high resolution optical measuring system and photoelectric sensors system. This function can make the testing data shown on LCD screen and out put the test data on the internal printer.

Usage Range

Brinell hardness tester adopts heavy testing force and shows large indentation function. It can measure hardness value for big grain metal materials such as casting parts, nonferrous metals and alloy, various tempered steel, hardening and tempering steel, specially for soft metal such as pure aluminum, lead, tin, etc.

Technical Specification

Brinell Scale

HBW2.5/62.5, HBW2.5/187.5, HBW5/125, HBW5/750, HBW10/100, HBW10/1500, HBW10/3000, HBW10/250, HBW10/500, HBW10/1000

Testing Force

62.5kgf(612.9N), 100kgf (980.7N), 125kgf1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(9807N), 1500kgf (14710N), 3000kgf (29420N)

Testing Range

8~650HBW

Min Measuring Unit

0.625mm

Magnification of Microscope

20X

Duration Time

5~60 sec

Readout of Hardness value

LCD display, Printer Output, Inside Printer

Net Weight

90kg

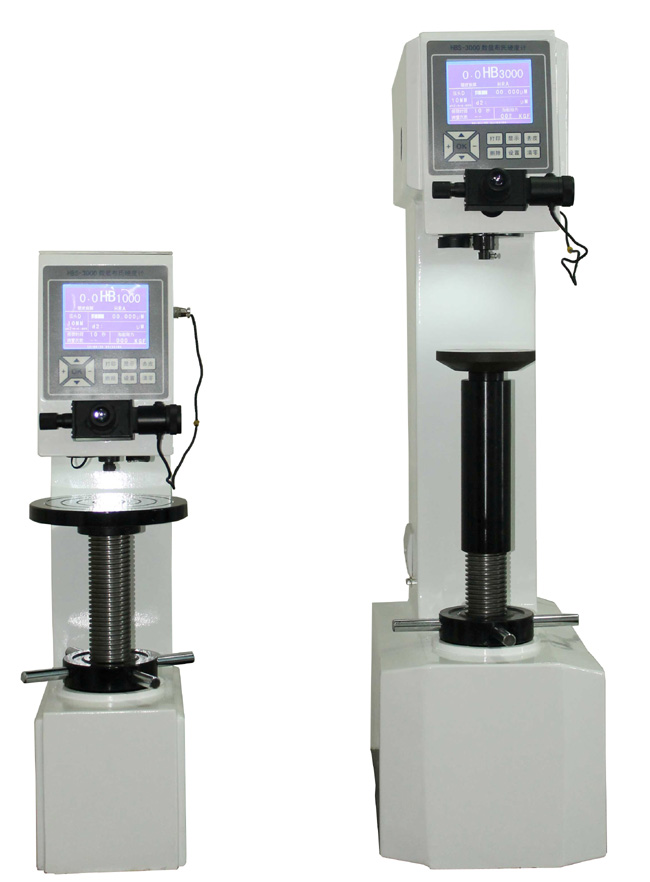

Max Height of Specimen

AJR HBS-3000: 200mm

AJR HBS-3000L: 400mm

Distance of Indenter to outer wall

135mm

Overall Dimension

550×210×750mm(L×W×H)

Power Supply

AC220V±5%50~60Hz

Carried Standard

GB/T231.1, GB/T231.2, JJG150 Inspection Rule

Standard Accessories

No.

Item

Qty.

1

AJR HBS-3000(L) Main Machine

1

2

20X Measuring Microscope

1

3

2.5mm Hard Alloy Ball Indenter

1

4

5mm Hard Alloy Ball Indenter

1

5

10mm Hard Alloy Ball Indenter

1

6

Hardness Tester Block

3

7

Large Testing Table

1

8

Medium Testing Table

1

9

V shaped Testing Table

1

10

RS23 Cable

1

11

Power Cable

1

12

Plastic Protection Cover

1

13

English Operation Manual

1

14

Printer Manual

1

15

Product Certificate

1
