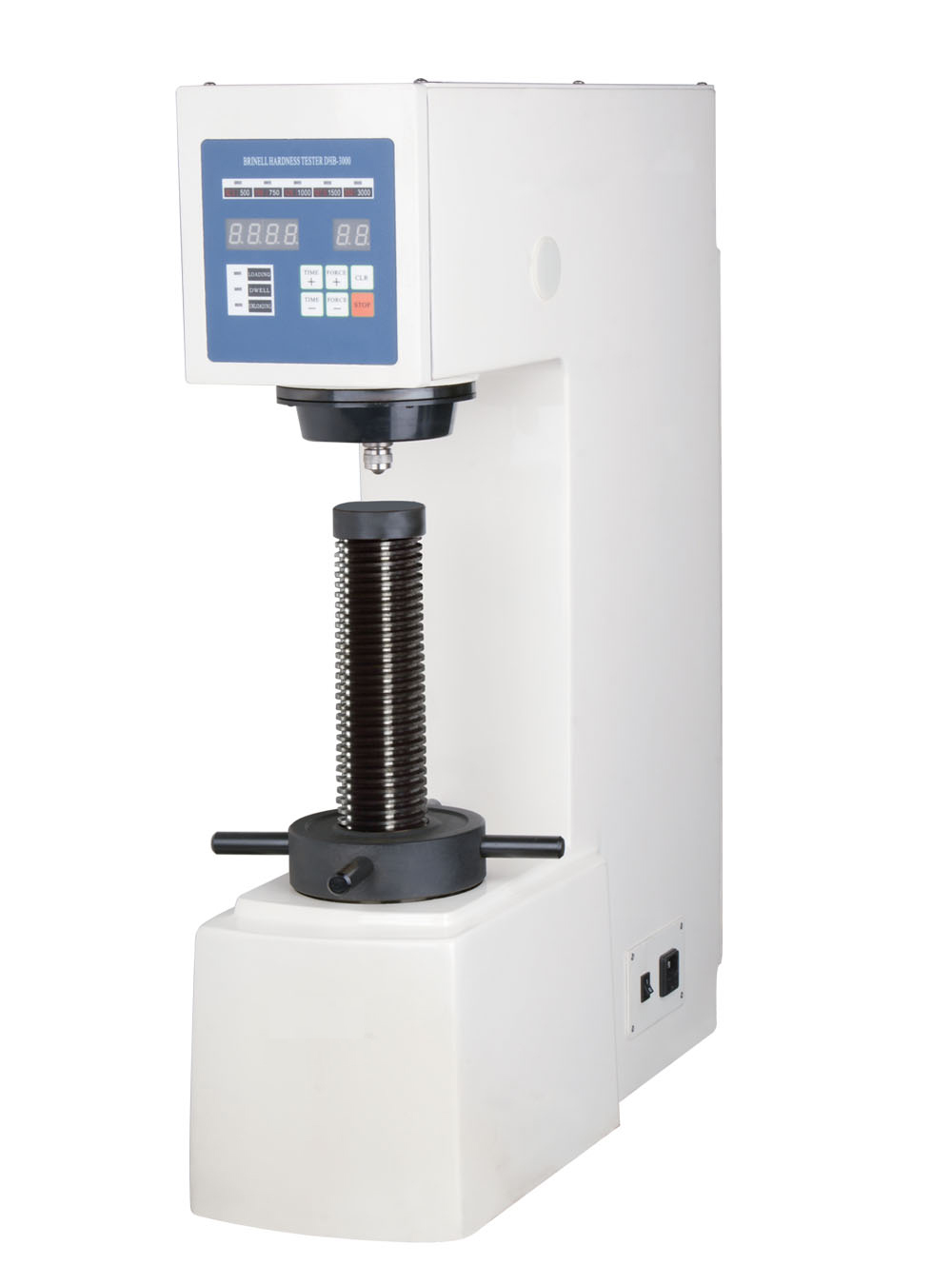

HBE-3000A Electronic Brinell Hardness Tester
HBE-3000A Electronic Brinell Hardness Tester with 10 steps testing force is able to measure hardness values with each 10 Brinell hardness scales. The instrument adopts circuit type sensor added with control system, thus with high precision, high repetition, and reliability and easy operation.
Usage Range:
Brinell hardness test which adopts heavy testing force and shows large indentation is apply to measure hardness value for big grain metal materials such as casting parts, nonferrous metals and alloy, various tempered steel, hardening and tempering steel, specially for soft metal such as pure aluminum, lead, tin, etc.
Technical Specification
|
Brinell Scale |
HBW2.5/62.5、HBW2.5/187.5、HBW5/62.5、HBW5/125、HBW5/250、HBW5/750、 HBW10/100、HBW10/250、HBW10/500、HBW10/1000、HBW10/1500、HBW10/3000 |
|
Testing Force |
62.5kgf(612.9N)、100kgf (980.7N)、125kgf 1226N)、187.5kgf (1839N)、250kgf (2452N)、500kgf (4903N)、750kgf (7355N)、1000kgf (9807N)、1500kgf (14710N)、3000kgf (29420N) |
|
Min Measuring Unit |
0.005mm |
|
Magnification of Microscope |
20X |
|
Dutation Time |
5~60 sec |
|
Overall Dimension |
550×210×750mm(L×W×H) |
|
Net Weight |
125kg |
|
Max Height of Speciment |
230mm |
|
Max depth of speciments |
135mm |
|
Power Supply |
AC220V±5%，50~60Hz |
|
Carried Standard |
GB/T231(1.2) Chinese Standard |
|
Standard Accessories |
A set of Measuring Microscope, Diameter: 2.5, 5 and10mmHard Alloy Ball Indenters, 3 pcs Standard Hardness Blocks, Large Testing Table, Medium Testing Table, “V”-shaped Testing Table, Power Cable |
