ACT4000 Digital Coating Thickness Gauge

Product Infomation

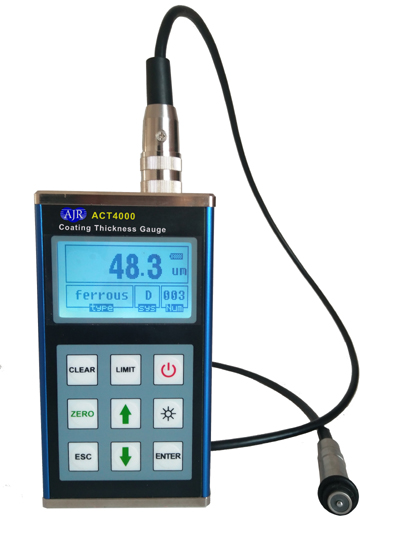

ACT4000 is a compact, handy pocket gauge. It is designed for non-destructive, fast and precise coating thickness measurement. The principal applications lie in the field of corrosion protection. It is ideal for manufactures and their customers, for offices and specialist advisers, for paint shops and electroplaters, for the chemical, automobile, shipbuilding and aircraft industries and for light and heavy engineering. The standard data software can make customer download the test result from machine to PC.
  • Model:ACT4000
  • Specifications: 0-10000um
  • Color:Red, Blue
  • Brand:AJR
Details

ACT4000 Digital Coating Thickness Gauge

Overview

ACT4000 is a compact, handy pocket gauge. It is designed for non-destructive, fast and precise coating thickness measurement. The principal applications lie in the field of corrosion protection. It is ideal for manufactures and their customers, for offices and specialist advisers, for paint shops and electroplaters, for the chemical, automobile, shipbuilding and aircraft industries and for light and heavy engineering. The standard data software can make customer download the test result from machine to PC.

Specifications

Measuring principle

Magnetic induction & Eddy current

Measuring range

(01250)μm, depends on probes. maximum 10mmfor the probe F10. Refer to Appendix.

Memory capacity

Direct mode with 99 storage places and batch mode with 495 locations (5 groups with 99 values each)

Memory mode

Automatically or manually

Measuring unit

Mil or µm

Limits

Minimum and maximum can be preset; with visual and audible alarm when exceeding

Low range resolution

0.1μm

Accuracy

±(3%Thickness+1) μm, depends on probes and conditions

Statistic values

Mean, minimum, maximum, number of measurements, standard deviation

Delete function

Single data or all data in memory

Error warning

Visually or acoustically

Probe recognition

Automatic

Calibration methods

2-point or zero calibration

Data Port

USB

Menu and manual language

English

Buttons beep

Adjustable

Backlight

Adjustable

Shutdown

Manually or automatically

Battery capacity indicator

Available

Display / Screen

2.4 inch

Power supply

2 x 1.5 V alkaline batteries

Size

125 x 65 x 30 mm or 4.7" x 2.6" x 0.9"

Weight

340 g (with batteries) or 11 oz

Working temperature

-10℃~+50℃;

Storage temperature

-30℃~+60℃;

Relative humidity

≤90;

Features

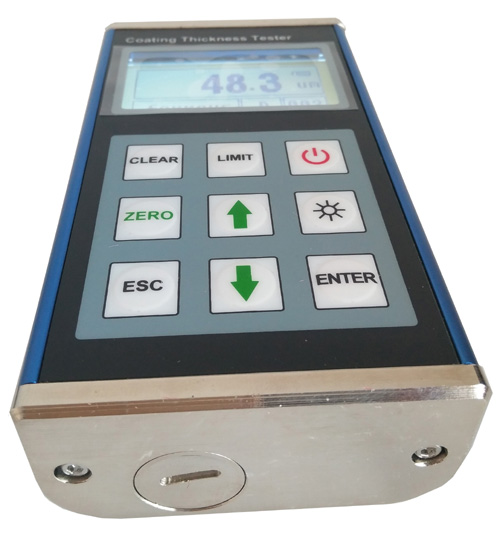

l        With different external probes, the gauge can be applied to measuring thickness of non-magnetic coating on magnetic metal substrate, as well as non-conductive coating on non-magnetic metal substrate.

l        Five types of probes (F400, F1, F10, N1, CN02) are available for different application. F10 probe measures up to10mm.

l        Two measuring modes: single or continuous, changeable.

l        Two calibration methods can be applied to the gauge; And the system error of the probe can be corrected with the basic probe calibration method.

l        Measured values and user information are shown on a large, easy-to-read LCD. A display back light ensures easy reading of screen data in poorly-lit conditions.

l        Measuring status indicator showing the measuring status.

l        The gauges’ user-friendly measuring system permits automatic storage of up to 495 readings in one memory matrix for later statistical evaluation.

l        Battery information indicates the rest capacity of the battery.

l        Auto sleep and auto power off function to conserve battery life.

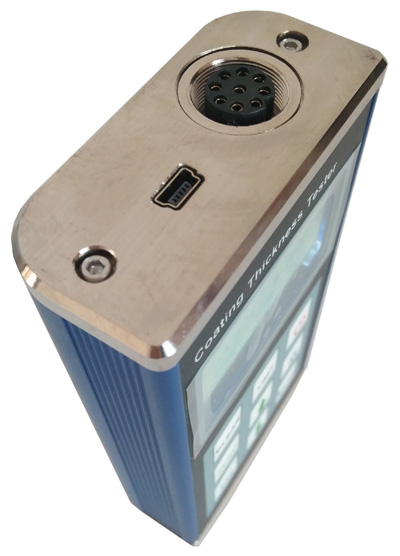

l        USB1.1 communication port. Optional software to process the memory data on the PC.

l        Compact aluminum case,suitable for use under poor working conditions

Probe Selection

Probe model

F400

F1

F1/90°

F10

Function principle

Magnetic induction

Measuring area

0-400 mm

(0-0.4 mm)

0-16 mil

0-1250mm

(0-1.25mm)

0-49mil

0-10000 µm

(0-10 mm)

0-394 mil

Resolution

0.1mm

0.1mm

10mm

Accuracy

(H=nominal value)

One-point calibration

±(3%H+1) mm

±(3%H+10) mm

Two-point calibration

±((1-3)%H+0.7) mm

±((1-3)%H+1) mm

±((1-3)%H+10) mm

Measuring Conditions

Min curvature radius

convex

1 mm

1.5 mm

flat

10 mm

Diameter of the minimum area

Ø 3 mm

Ø 7 mm

Ø 7 mm

Ø 40 mm

Critical thickness of substrate

0.2 mm

0.5 mm

0.5 mm

2 mm

Probe model

N1

CN02

Function principle

Eddy Current

Measuring area

0-1250 µm
(0-1.25 mm)
0-49 mil

10-200 µm
(0.01-0.2 mm)
4-8 mil

Resolution

0.1 µm

1 µm

Accuracy

(H=nominal value)

One-point calibration

±(3%H+1.5) µm

Two-point calibration

±[(1-3)%H +1.5] µm

Measuring Conditions

Min curvature radius

3 mm

only flat

Diameter of the minimum area

Ø 5 mm

Ø 7 mm

Critical thickness of substrate

0.3 mm

no limit

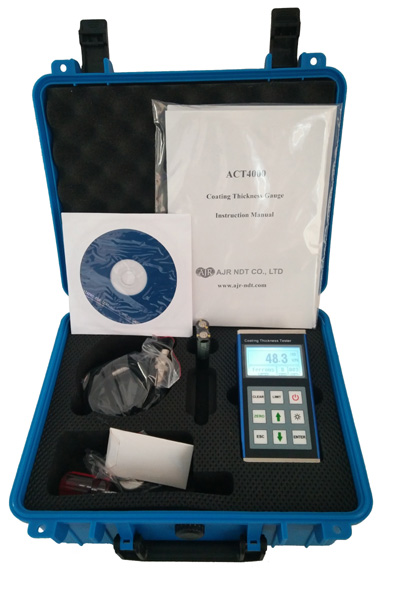

Configuration

No.

Item

Qty.

Remarks

1

ACT4000 Main Unit

1

2

Probe

2

F1 and N1

3

Calibration Foils

5 PCS

4

Zero Plate

2

Iron and Aluminum

5

USB Cable

1

6

Data Software

1

7

Instrument Case

1

8

Manual

1

9

Calibration Certificate

1

10

Packing List

1

11

Warranty Card

1
