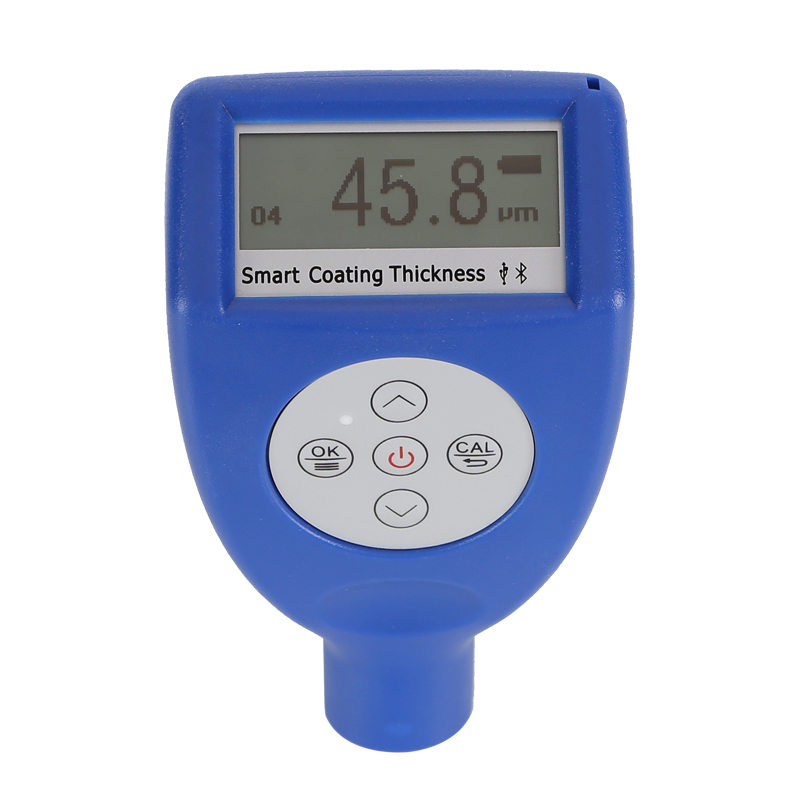

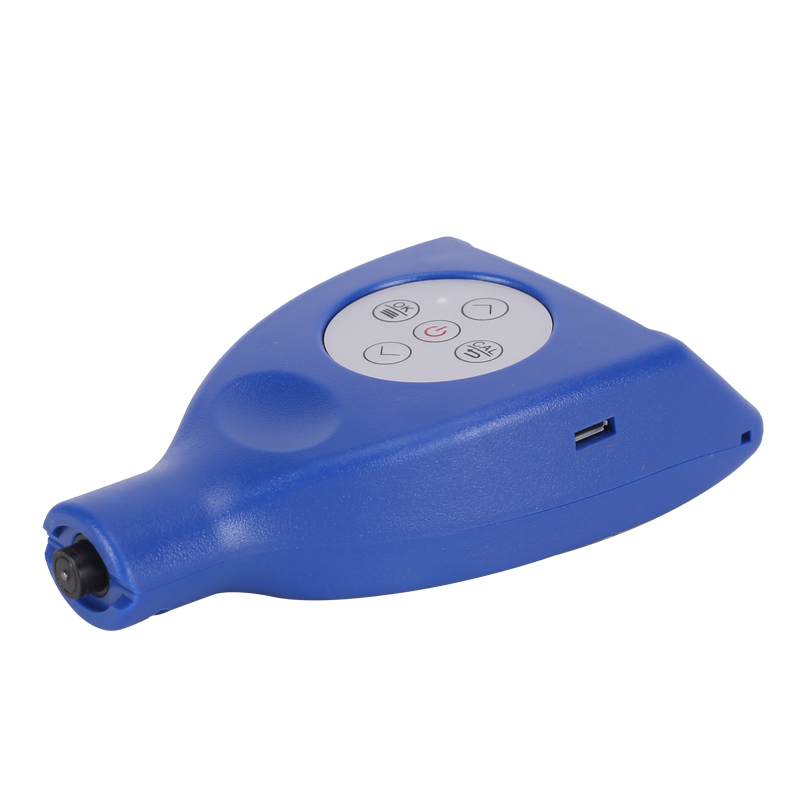

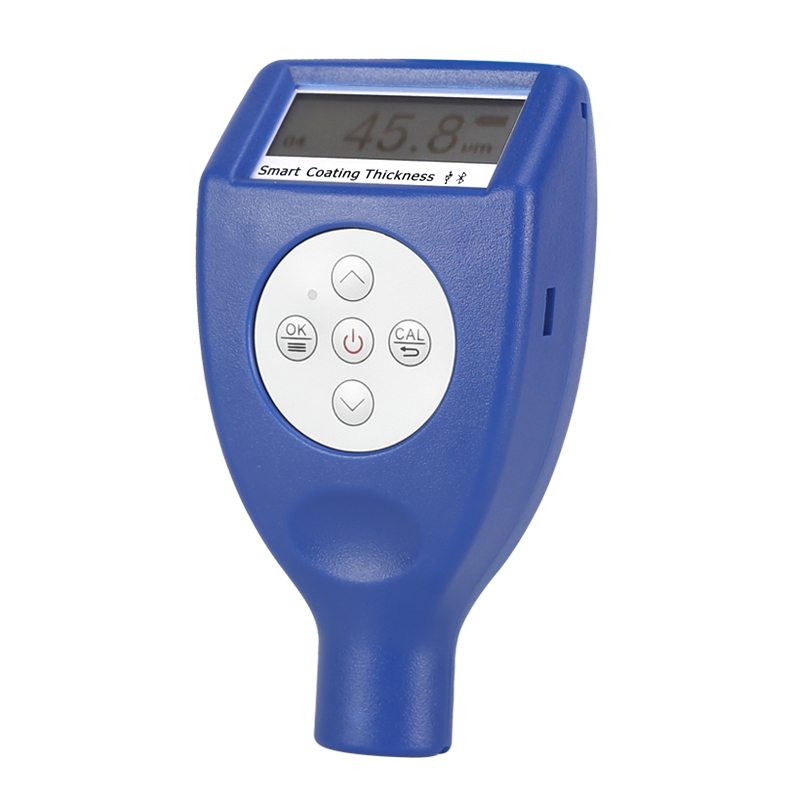

Bluetooth Coating Thickness Gauge ACT2300

Product Infomation
ACT2300 bluetooth coating thickness gauge meets the standards of ISO2178, ISO-2361, DIN, ASTM and BS. It is suitable for laboratory. It is a best choice for harsh field conditions application. The gauge can measure the thickness of non-magnetic coating layers on magnetic substrate. Such as: (aluminum, chrome, copper, enamel, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel). The gauge can measure the thickness of non-metals coatings layers covered on non-magnetic metals substrate. Such as: (enamel, rubber, paint, vanish, plastic anodic-oxide layer) covered on non-magnetic metals substrate (aluminum, brass, zinc and nonmagnetic stainless steel).
  • Model:ACT2300
  • Specifications:0-1500um
  • Color:Blue
  • Brand:AJR
Details

Bluetooth Coating Thickness Gauge ACT2300 model

Brief Introduction

  • ACT2300 coating thickness gauge meets the standards of ISO2178, ISO-2361, DIN, ASTM and BS. It is suitable for laboratory. It is a best choice for harsh field conditions application.
  • The gauge can measure the thickness of non-magnetic coating layers on magnetic substrate. Such as: (aluminum, chrome, copper, enamel, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel).
  • The gauge can measure the thickness of non-metals coatings layers covered on non-magnetic metals substrate. Such as: (enamel, rubber, paint, vanish, plastic anodic-oxide layer) covered on non-magnetic metals substrate (aluminum, brass, zinc and nonmagnetic stainless steel).

Characteristic

  • Small design, easy to carry
  • Complete intelligentized design, easy operate
  • Rapid measurement, excellent repeated performance
  • Zero adjustment, one point / two points / multi-point calibration
  • LCD digital display
  • Metric / English system unit
  • Bee Sound remind during operation
  • FE or NFE substrate automatic recognition
  • Manual or automatic power off

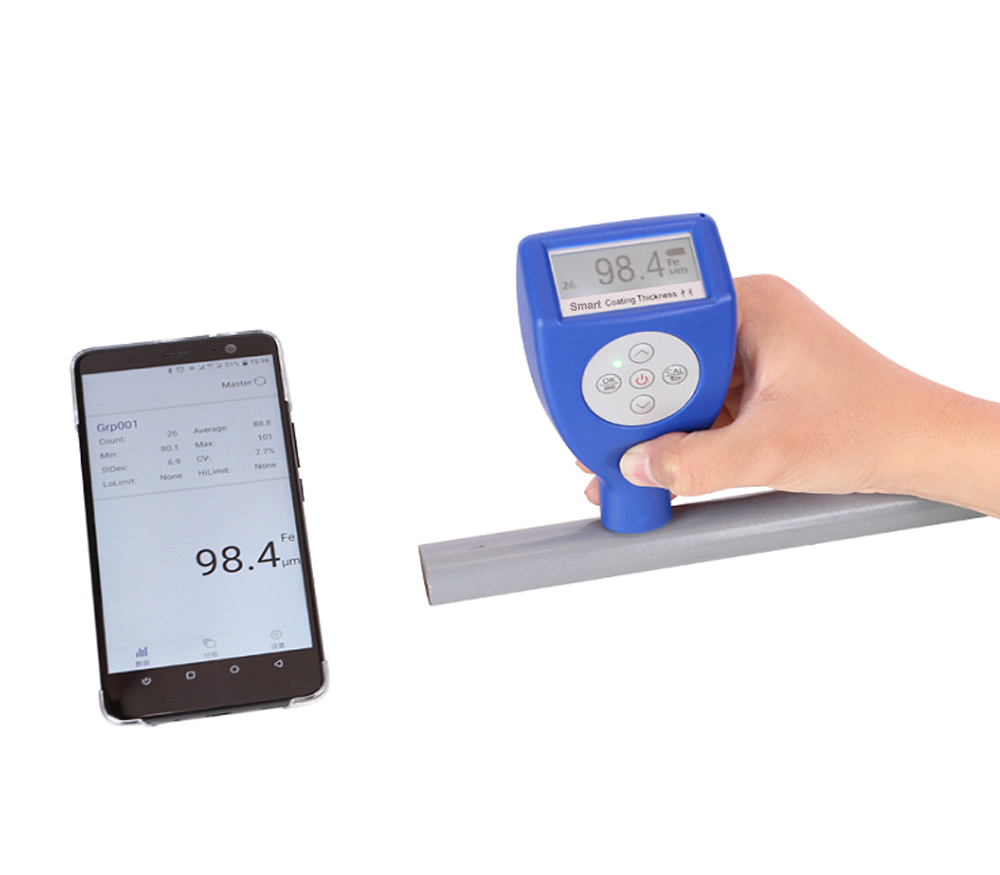

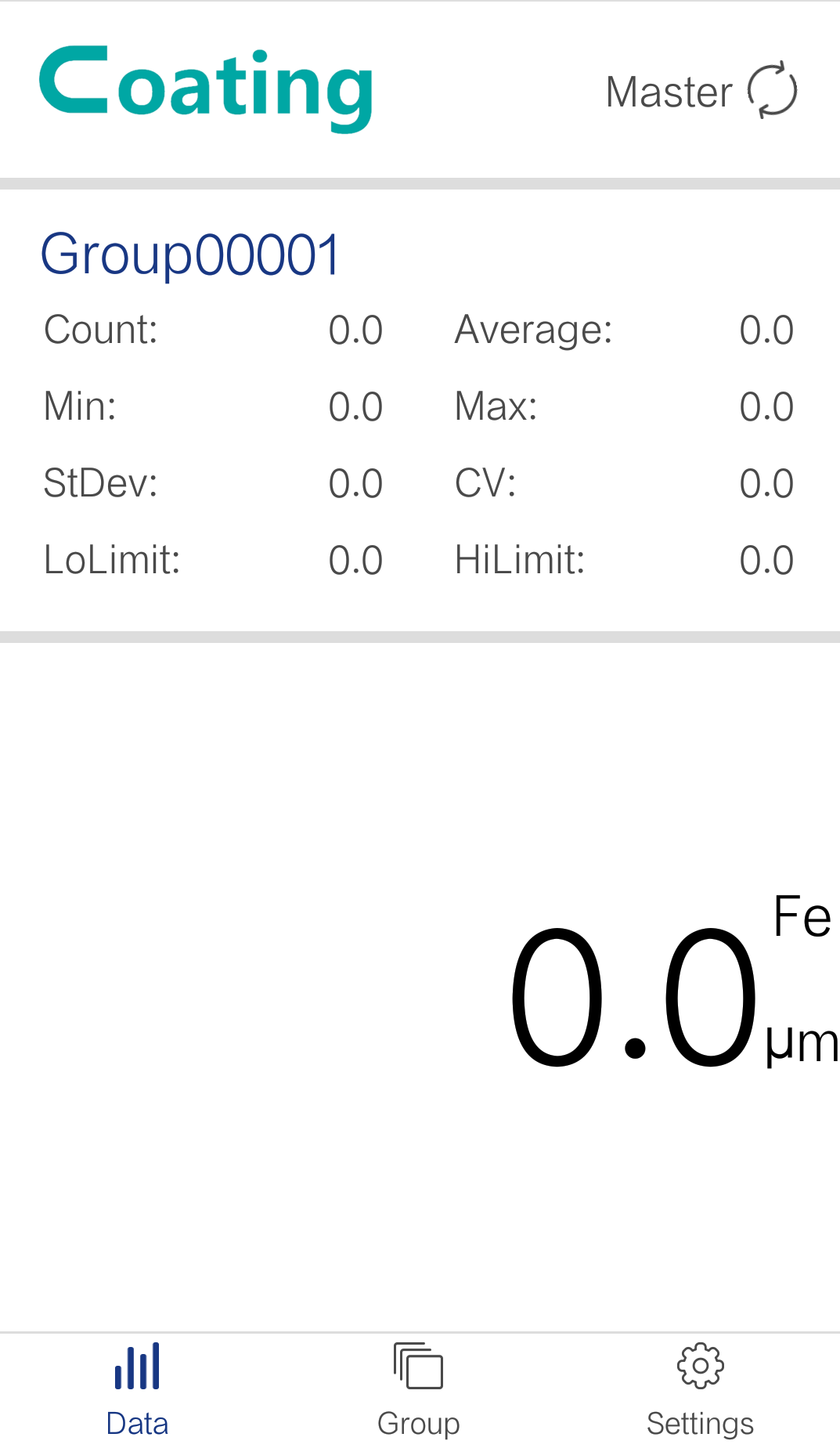

  • User can install mobile bluetooth APP in mobile with scanning QR code.

Display Instruction

  • Test result data
  • Substrate measure state
  • Testing times
  • Battery volume

Specification

  • Range: 0-1500um
  • Accuracy: ±[(1%~3%)]H ±1.5um
  • Resolution:0.1um (0~99.9um), 1um (over 100um)
  • Minimum curvature: convex 5mm / concave 5mm
  • Minimum substrate: 10×10mm
  • Thinnest substrate: 0.4mm
  • Environment temperature: 0-40℃
  • Relative humidity: ≤85%
  • Power supply: 1.5V×2
  • Weight: 150g

Standard Accessories

NO.

Item

Qty

Remark

1

ACT2300 Main Machine

1

Standard

2

Calibration Foils

5

Standard

3

Zero Plate

2

Standard

4

Belt

1

Standard

5

Instrument Case

1

Standard

6

Manual

1

Standard

7

Calibration Certificate

1

Standard

8

Packing List

1

Standard
