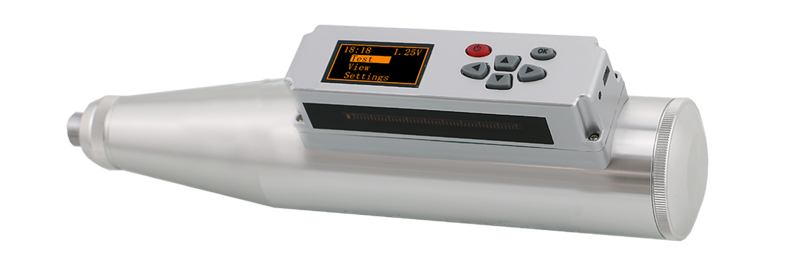

ATH200 Digital Concrete Stength Test Hammer
Introduction
ATH200 digital concrete hammer is an advanced test equipment which is designed for concrete compressive strength test (also called concrete hardness test). It is applied to NDT test for concrete compressive strength components in construction projects.
The instrument is suitable for the engineering quality inspection organized by the metrology department, the on-site quality inspection of various engineering quality supervision agencies and supervision units, and the test results of the sampled concrete structure's compressive strength are obtained on the spot, and the engineering quality inspection by each testing agency.
Features
lSubmit to “Technical Specification of Inspecting Concrete Compressive Strength by Rebound Method” (JGJ/T23-2001). And ASTM C805, EN 12504
lUnique automatic recording function improves the efficiency of measurement
lNon-contact grating sensor with high precision
lLarge storage capacity
lAdopting USB interface, as U flash disk, no need special driver

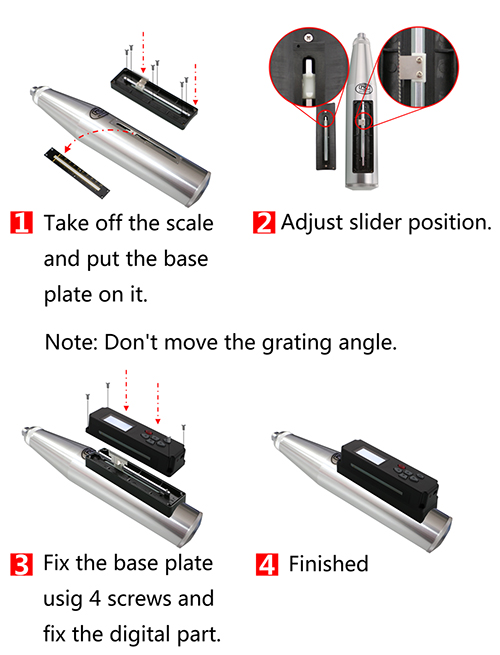

lDigital part is suitable for all mechanical hammers of our company easily installed and serviced
Specification
Measuring
Range
10-60MPa
Impact
Energy
2.207±0.1J(0.225Kgf.m)
Length
of Spring Stretch
75±0.3mm
Tension
of Spring Stiffness
785±30N/m
Static
Friction of Pointer Slider
0.65N±0.15N
Radius
of Spherical Tip
25mm±1mm
Average Rebound
Value on Steel Anvil
80±2
Data
Memory
500
channels
Power
Supply
Ni-MH
rechargeable battery
Dimensions
Φ54×280mm
Weight
About
1kg
Configuration
No. |
Item |
Qty. |
1 |
ATH200 Main Unit |
1 |
2 |
Data Software |
1 |
3 |
USB Connecting Cable |
1 |
4 |
Power Charger |
1 |
5 |
Carborundum Stone |
1 |
6 |
Manual |
1 |
7 |
Packing List |
1 |
8 |
Warranty Card |
1 |
9 |
Calibration Certificate |
1 |
10 |
NiMH Rechargeable Battery |
2 |
