Crack Width Gauge CWG540

Product Infomation

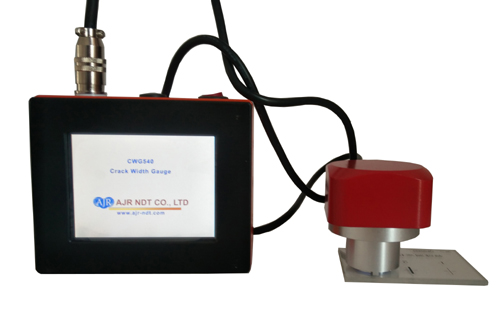

CWG540 gauge is an intelligent crack width testing equipment. It can be widely used for quantitative detection of crack width of bridges, tunnels, walls, concrete pavements, and metal surfaces. The device is mainly composed of a handheld color display main machine and a color microscopic magnifying camera probe (with 1 meter connecting cable). The machine can automatically scan, capture cracks and displays the crack width value in real time during measurement, and the user can directly see the crack width value from the display screen. The machine can also save the testing crack image with crack width value to memory card inside the machine for further image analysis or print archiving. With USB data cable, user can connect the machine to PC and download crack image to PC.
  • Model: CWG-540
  • Specifications:0.01—8mm
  • Color:Orange
  • Brand:AJR
Details

AJR CWG540 Crack Width Gauge

I. Introduction

CWG540 gauge is an intelligent crack width testing equipment. It can be widely used for quantitative detection of crack width of bridges, tunnels, walls, concrete pavements, and metal surfaces. The device is mainly composed of a handheld color display main machine and a color microscopic magnifying camera probe (with 1 meter connecting cable). The machine can automatically scan, capture cracks and displays the crack width value in real time during measurement, and the user can directly see the crack width value from the display screen. The machine can also save the testing crack image with crack width value to memory card inside the machine for further image analysis or print archiving. With USB data cable, user can connect the machine to PC and download crack image to PC.

II. Technical Specification

l        Maximum detection range of 0-8 mm;

l        Accuracy: better than 0.02 mm;

l        Magnification: 30 times;

l        Operating Temperature: -20 ~ 60 ° C

l        Host Interface: standard USB;

l        Storage: More than 3000 photos;

l        Image storage format: BMP format, 24 bit color / 320 * 240;

l        Power supply: lithium battery, standby time: 18 hours;

l        Size: Host 113x70x16.5mm;

l        Probe: 48x56x58mm;

l        Weight: host 100 grams, 100 grams of the probe.

III Features

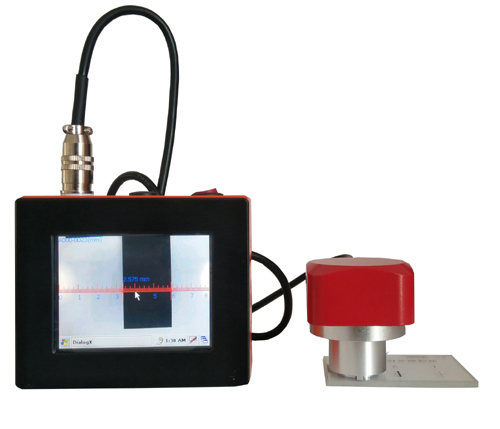

l        Automatically read the crack width and directly display the crack width value on the screen;

l        Automatically take crack photos when user touches the screen during testing and display images in real time;

l        Store photos and crack width value data can be downloaded to PC;

l        The test range is 0-8mm;

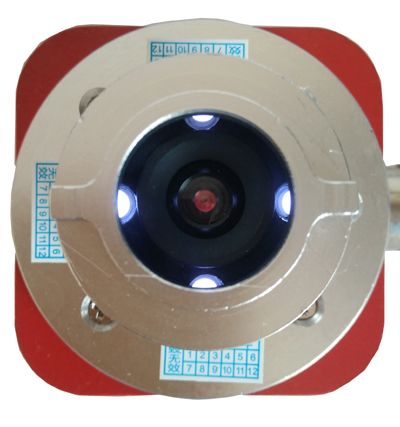

l        The probe (camera) is designed with lighting device that can work in dark environment and it is not affected by light changes;

l        The hand-held mainframe is made of metal case, which is light and beautiful, and durable;

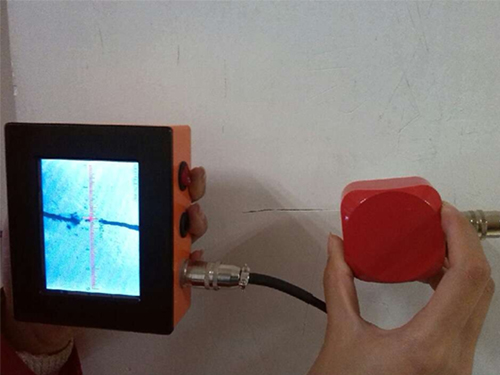

l        Easy operation: put camera on the crack. The machine can read the crack width value automatically. There is no need to make any set for machine;

l        The crack photo is BMP format which can be saved to memory card directly;

l         Main unit and the probe share one lithium battery together.

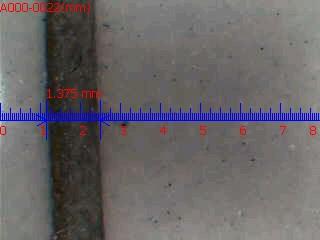

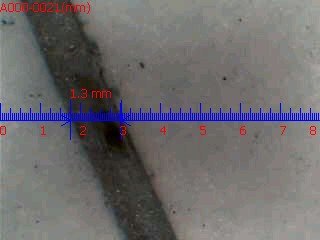

l        The images will show the width of the data, scales, zoom factor and the crack number (see below);

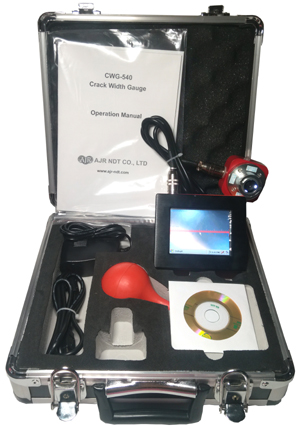

IV Configuration

No

Item

Qty.

1

CWG540 Main Unit

1

2

Camera

1

3

Camera Connecting Cable

1

4

Charger

1

5

Rubber Bag

1

6

Data Software

1

7

USB Cable

1

8

Carrying Box

1

9

Instruction Manual

1

10

Certificate

1

11

Warranty Card

1

12

Packing List
