AFD1000 Concrete Ultrasonic Flaw Detector

Product Infomation

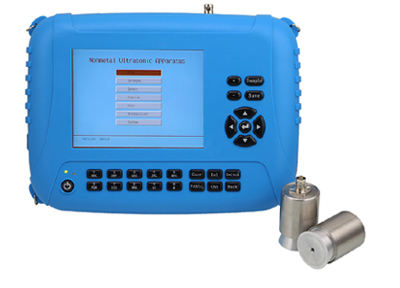

AJR NDT: AFD1000 Concrete Ultrasonic Flaw Detector: Quick detection of the integrity of basic pile continuous wall with Ultrasonic Penetration Method Testing of building foundation piles by cross-hole sonic logging; Inspection of concrete defects by ultrasonic method, such as uncompacted, cellular, hole area. Detecting defects of one hole by one trigger two receive. Dynamic testing of geotechnical investigation, rock, concrete etc.
  • Model:AFD1000
  • Specifications:5KHz~500 kHz
  • Color:Blue
  • Brand:AJR NDT
Details

AJR NDT: AFD1000 Concrete Ultrasonic Flaw Detector

Application

ØQuick detection of the integrity of basic pile continuous wall with Ultrasonic Penetration Method Testing of building foundation piles by cross-hole sonic logging.

ØInspection of concrete defects by ultrasonic method, such as uncompacted, cellular, hole area.

ØDetecting defects of one hole by one trigger two receive.

ØDynamic testing of geotechnical investigation, rock, concrete etc.

Standard

ØTechnology code for testing of building foundation piles JGJ 106 —2003.

ØTechnical Specification of Dynamic Pile Tests for Highway Engineering JTG/TF81-01-2004.

ØTechnology specification for inspection of concrete defects by ultrasonic method CECS 21:2000.

ØTechnical specification for detecting strength of concrete by ultrasonic-rebound combine method CECS.

ØTechnical specification for geotechnical investigation method GB50021—2001.

Features

ØHigh efficient testing.

ØSignal waveform, acoustic wave parameter real-time display, real-time data analysis and output. Internal defects displayed graphically in real-time, test results clearly understandable.

ØFast and precise automatic judge the sound parameters. Real-time wave display to assure test efficiency.

ØHumanized software design. It is easy for user to operate the machine.

ØWith precise signal receiving probe, the machine can receive signal more than 10m in concrete without defects.

ØThe main unit can supply power to probe directly. There is no need to connect the power to probe extrally. And the performance is reliable and stable.

ØStandard USB storage with big capacity.

ØLithium battery can ensure the machine work more than 6 hours.

ØPortable, small, light apparatus (1.75Kg).

ØExtending function for testing thickness of concrete by impacting echo method.

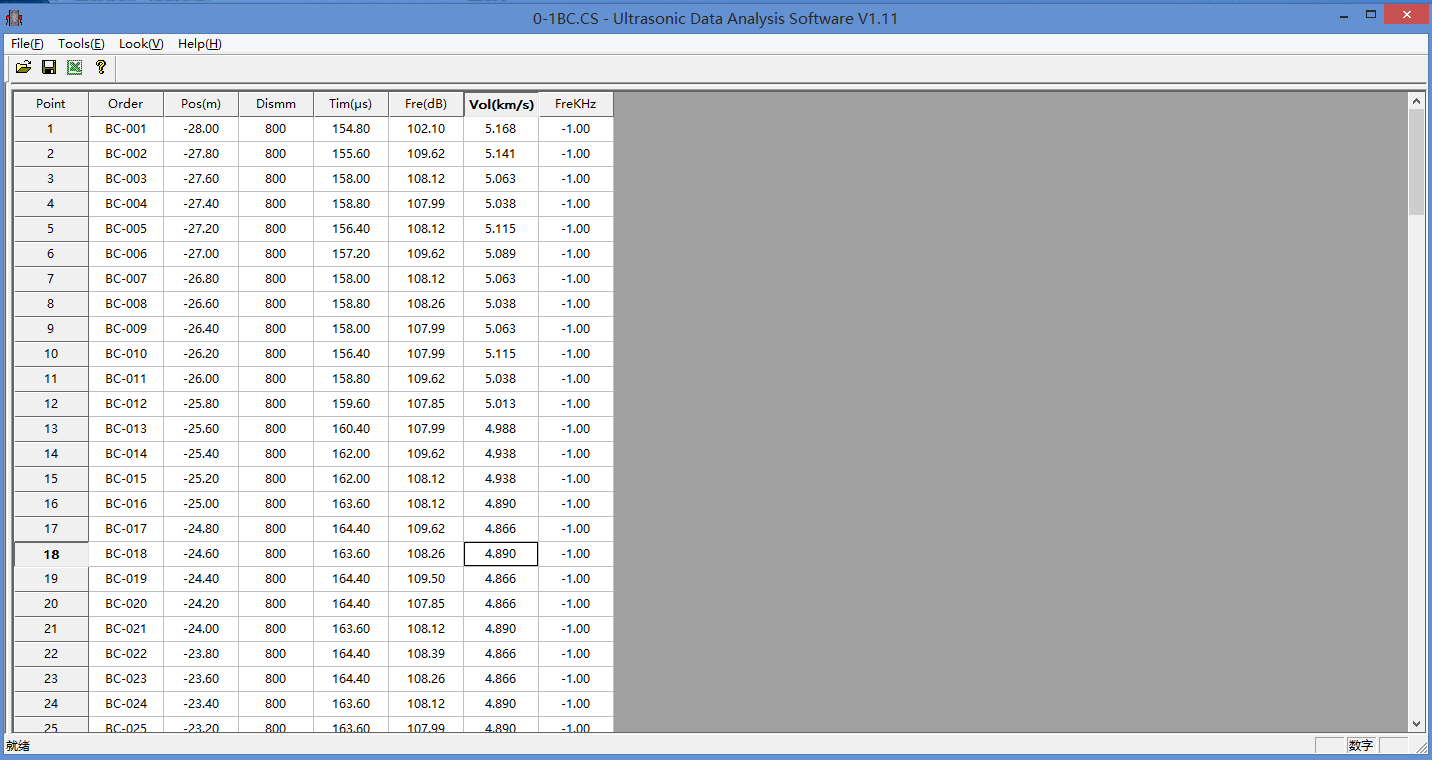

ØProfessional and powerful analysis software on windows system. It can export the data to excel or word for advanced analysis

Technical Specification

Item

Specifications

Item

Specifications

Main Control Unit

High-performance industrial control board

Display

640×480 High brightness TFT Panel

Input

Keyboard

Storage

1G (Internal)2G(U-Disk)

Interface

USB

Receive Channel

One

Max Sample Data Length

64k

Trigger Mode

Continuous Trigger

External Trigger

Trigger VoltageV

65, 125, 250, 500, 1000 selectable

Receive Sensitivity

≤30μv

Amplifier Gain

82dB

Amplifier Bandwidth

5KHz500 kHz

Sample Periods

0.05μs6.4μs8 grades electable

Sound Time Accuracy

0.05μs

Amplifier Resolution

0.39%

Power

Interior lithium battery, work more than 6 hours

Size

260 mm×185 mm×60 mm

External lithium battery, work more than 6 hours (select)

Weight

1.75 kg (include lithium battery)

DC 12V

Temperature

-10—+40

AC 100V~240V50/60Hz

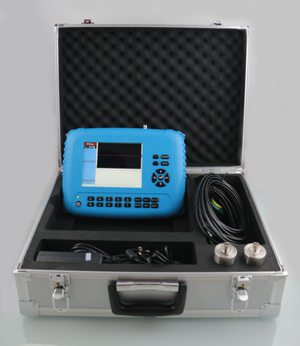

Standard Accessories

No

Item

Qty.

1

AFD1000 Main Unit

1

2

Transducer

2

3

Connecting Cable

2

4

U Disk

1

5

Tape Measure

1

6

Charger

1

7

Carrying Box

1

8

Instruction Manual

1

9

Certificate

1

10

Warranty Card

1

11

Packing List

1

Note: When user make test with AFD1000 Ultrasonic Tester, if the velocity changes, then user can identify whether there is default inside concrete according to experience. If user wants to get the default position, user need to get concrete core sample according to test velocity data.
