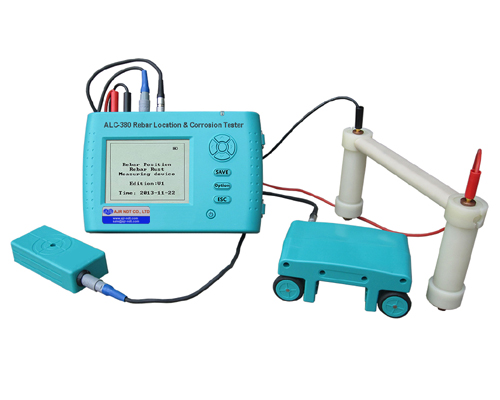

ALC380 Concrete Rebar Location & Corrosion Detector

Product Infomation
ALC380 rebar corrosion detector is a NDT instrument which tests rebar corrosion in the concrete structure. Using electrochemistry method, do the functions for corrosion detection, data analysis, storage and output etc. It is a detection instrument which is handed, measurement accurately and easy to use.
  • Model:ALC380
  • Specifications:Rebar Diameter: Φ6 - 50; Cover Thickness: 6-180mm
  • Color:Yellow, Green
  • Brand:AJR
Details

ALC380 Concrete Rebar Corrosion Detector

Features

Integrate the functions of rebar position test, concrete thickness test, rebar diameter test and rebar corrosion degree test into one product.

Application

Ø Testing concrete cover thickness

Ø Test concrete member internal reinforcement position, rebar spacing, reinforcement position distribution.

Ø Estimation bar diameter

Ø Detection of Cable and Plumbing pipe

Ø Detection of steel corrosion extent

Specification of Rebar Locator

Rebar Range

Rebar diameter range(mm)

Φ6 - 50

Maximum error of rebar diameter

≤±1

Cover thickness  measuring range

The  first measuring range (mm)

6 - 90

The  second measuring range (mm)

7-180

The  maximum error of cover thickness

The  first measuring range (mm)

The  second measuring range(mm)

Error

6 - 59

7 - 79

≤±1

60 - 69

80 - 119

≤±2

70 -90

120 - 180

≤±4

Environmental requirement

Working temperature

-10~40

Relative humudity

<90%

Power source,

6 PCS Alkaline Batteries

Working Time

>30 hours

Specification of Rebar Corrosion System

Measuring Potential

±1999mV

Test accuracy

± 1mV

Measuring Space

1-99 cm (adjustable)

Ambient Temperature

-10~+40

Environment Requirement

Avoid direct exposure to the sun for a long time.

Relative Humidity

<90%RH

Electromagnetic Interference

no strong alternating electromagnetic field

Distance of test point

0-1000mm

Available Capacity

50000 test point

5000 test areas

Standard Accessories

No.

Item

Qty.

1

ALC-380 Main Unit

1

2

Clamp

4

3

Test Probe

1

4

Scan Car

1

5

Lateral Device

1

6

Scan Car Connection Cable

1

7

Probe Connection Cable

1

8

USB Cable

1

9

Data Software

1

10

Carrying Case

1

11

Operation Manual

1

12

Packing List

1

13

Guarantee Card

1

14

Product Certificate

1
