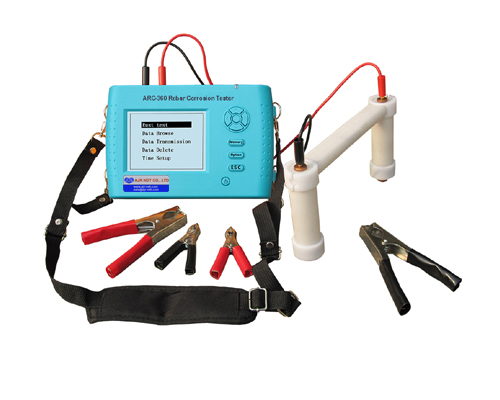

ARC360 Concrete Rebar Corrosion Detector

Product Infomation
ARC360 rebar corrosion detector is a NDT instrument which tests rebar corrosion in the concrete structure. Using electrochemistry method, do the functions for corrosion detection, data analysis, storage and output etc. It is a detection instrument which is handed, measurement accurately and easy to use.
  • Model:ARL360
  • Specifications:Distance of test point: 0 - 1000mm
  • Color:Yellow, Green
  • Brand:AJR
Details

ARC360 Concrete Rebar Corrosion Detector

Introduction

ARC360 rebar corrosion detector is a NDT instrument which tests rebar corrosion in the concrete structure. Using electrochemistry method, do the functions for corrosion detection, data analysis, storage and output etc. It is a detection instrument which is handed, measurement accurately and easy to use.

Features

Ø Easy to operate, fast and accurate read. The result is displayed with numbers or graphics.

Ø Displays rebar corrosion degree with 9-level grey or colorful graphics

Ø Measured data is inputted to PC software from USB interface.

Ø Easy to operate, have concise software interface, have powerful analytical processing, can obtain testing report directly.

Technical Specification

Items

Parameter

Potential electrode

Φ37X127mm

Electrode weight

200g

Power supply

Alkaline  cell X 6

Potential measurement range

±1999mv

Test Accuracy

1mv

Distance of test point

0  - 1000mm

Available capacity

50000 test  points, 5000 test areas

Work temperature range

-10℃ - 40℃

Dimension

220×145×60mm

Standard Accessories

No.

Item

Qty.

1

ARC360 Main Unit

1

2

Clamp

4

3

Signal transmission Cable

1

4

Lateral device

1

5

USB Cable

1

6

Data Software

1

7

Carrying Case

1

8

Operation Manual

1

9

Packing List

1

10

Guarantee Card

1

11

Product Certificate

1
