Item

Specification

Model

AJR NDT: XRF3000

X-ray Detector

High performance high precision high sensitivity Si-PIN detector

Excitation System

45KV/200u, Ag target / Tungsten target, integrated miniature X-ray light tube and high voltage source

Elemental Range

Ca-U (20 to 92 element in Periodic table)

Analysis of main elements in alloy: Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Zr, Nb, Mo, Ag, Cd, Sn, Sb, Ta, W, Pb, Bi. Total 20 elements. (user can add more elements in software)

Detection object

Solid

Analytical method

Intelligent direct reading optimization analysis method + basic parameter method (FP)

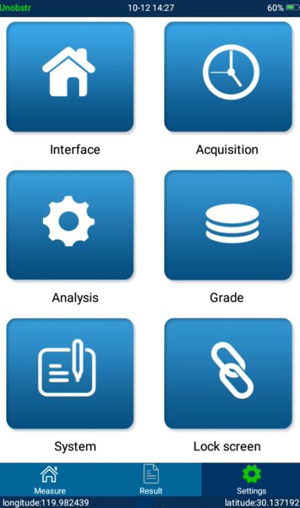

Software

Ø Remote control system, PC terminal based on windows system and mobile terminal based on Android system can operate the instrument through software to realize data synchronization on multiple platforms (instrument, PC terminal, mobile terminal, cloud).

Ø The software has data analysis, spectrum display, Report printing and other functions, the instrument user can send analysis reports by email.

Weight

≤1.75Kg (with battery)

Dimension

254 x 91 x 319mm

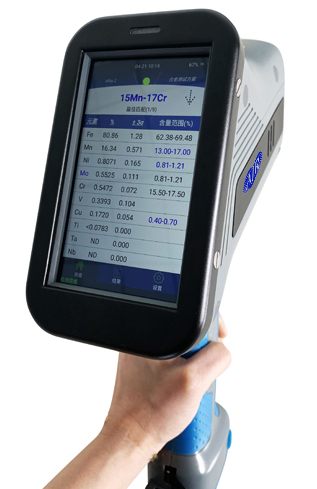

Microcomputer display system

Ø Semi-transparent and semi-reflective industrial-grade touch screen ≥ 5 inches.

Ø Standard Memory: 4G, can be expanded max 32G for mass data storage.

Ø Resolution: 1080 x 720

Power Supply

Ø Rechargeable lithium battery, standard 6800mAh, voltage: 7.2V; can work continuously for 12 hours.

Ø The instrument has the function of hot swap, delay power failure, no need to shut down to replace the battery, and the battery has its own volume display.

Charging mode

Ø There is a charging interface on the side of the fuselage.

Ø The battery can be charged by car charging; (Car charger is optional accessories).

Ø Universal adapter charging power supply.

Collimators, Filters

Ø Special radiation-proof material collimator, inner diameter 3MM.

Ø Without filter, the switching time is saved, and the background interference is deducted by the software.

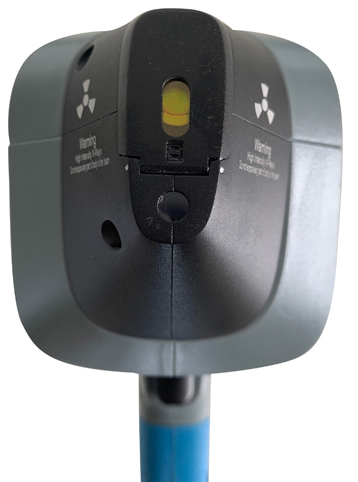

Front Test Window

≤9mm*5mm, "waist" type window

Test report sending mode

Ø E-mail sending,

Ø Bluetooth synchronous transmission

Ø Software synchronous transmission

Data transmission mode

Ø WIFI

Ø Bluetooth

Maintenance mode

Remote software upgrade and diagnosis, on-site maintenance and diagnosis

User Management

Multi-level user management function (multiple accounts can be created, so that the person number corresponds, which is convenient for management and data traceability)

Protective Cover

The instrument is equipped with a protective cover, which has the functions of instrument calibration, radiation protection and damage prevention (not standard)

Material Sensing and Instrument Status Prompt

Ø The fuselage has a material sensing function, which can intelligently identify whether there is a test object in front of it.

Ø The intelligent status indicator shows three working states:

ØRed light flashing indicates that the detection is in progress.

Ø Green light flashing indicates that there is no object to be measured in front of it.

Ø Green light on for a long time indicates that there is an object to be measured in front of it)

Operating Environment Temperature

-20℃ - +60℃

Humidity

≤90%

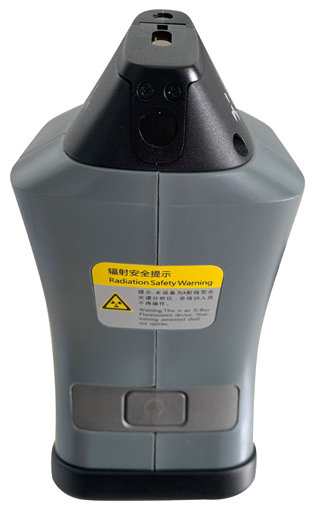

Safety

Ø Measurement value on instrument side: ≤ 0.2 μSV / h (after deducting background).

Ø Multiple safety protection, no test and no radiation.

Ø The radiation level at work is far lower than the international safety standard, and it has the function of no-sample air measurement and automatic shutdown of the X-ray tube.
