AJR XRF3500 Handheld XRF Spectrometer

Product Infomation
The XRF3500 Handheld Alloy Analyzer supplies elemental analysis of myriad materials in widely varying conditions. These energy dispersive X-ray fluorescence devices are recognized for ruggedness and reliability on the job. They offer alloy materials identification in seconds, with innovative technologies and designs that provide repeatable, laboratory-quality results. Simple, user-friendly displays and efficient ergonomics make these instruments extremely easy to use. XRF3500 Handheld Alloy Analyzer is designed for identifying the reliability of metal material and alloy nameplate. It has the characteristics of small volume, light weight, easy to carry, no need for sample preparation, alignment measurement, high precision, rapid detection, great value and excellent performance. It can be widely used in all kinds of metal and alloy samples grades and metals rapid analysis, and etc.
  • Model:AJR NDT XRF3500
  • Specifications:From Mg to U.
  • Color:Blue
  • Brand:AJR NDT
Details

AJR NDT XRF3500 Handheld Alloy Analyzer (XRF)

Features

l        Better, Faster Alloy Analysis

l        Tested material simple description

l        Excellent performance

l        One-touch operation

l        Nondestructive testing (NDT)

l        Scrap metal recycling and sorting

l        Alloy material identification (PMI)

l        Material brand recognition (Grade ID)

l        All important elements from Mg to U

l        Comprehensive safety features and functions

l        Quality control, quality assurance (QC/QA) and error-proofing (PKKA - YOKE)

Introduction

The XRF3500 Handheld Alloy Analyzer supplies elemental analysis of myriad materials in widely varying conditions. These energy dispersive X-ray fluorescence devices are recognized for ruggedness and reliability on the job. They offer alloy materials identification in seconds, with innovative technologies and designs that provide repeatable, laboratory-quality results. Simple, user-friendly displays and efficient ergonomics make these instruments extremely easy to use.

XRF3500 Handheld Alloy Analyzer is designed for identifying the reliability of metal material and alloy nameplate. It has the characteristics of small volume, light weight, easy to carry, no need for sample preparation, alignment measurement, high precision, rapid detection, great value and excellent performance. It can be widely used in all kinds of metal and alloy samples grades and metals rapid analysis, and etc.

Parameter

Excitation source

Integrated mini voltage power and x ray tube, longtime life, max power 4 Watts. (4000-6000 hours working time)

Detector

Si-PIN electric cooling detector, high count rate.

Range of detection

All elements from Mg to U.

Signal processor

America digital amplifier, high count efficiency.

Operation system

PDA Windows Mobile 5.0

Cooling system

Peltier cooling system, long-time life.

Power

DC chargeable lithium battery, each battery can supply 8-hours work consistently.  Or AC: 220V, 50/ 60Hz can be applied.

Screen

240x320 color led; 65,536 color pixel; touch screen.

Test modes

Qualitative analysis, quantitive analysis, and semi-quantitive analysis.

Data communications

USB, wireless and bluetooth.

Data stored

8G flash card.

Employment temperature

-10~50

Relative humidity

≤85%.

Analysis accuracy

≤0.3wt%.

Weight

1.9Kg (with battery). Whole packing will be 7Kg.

Dimensions

290 x 90 x 290 mmL x W x H.

Applications

1. Metal material analysis and alloy grade confirmPMI

Alloy grade analysis: 2-5s rapid analysis, alloy grade display, it includes 250 kinds of alloy grade, it can define 1000 kinds of alloy grade,it can analyze alloy sample of more than 1000 types.

Alloy content analysis: 10-30s accuracy analysis.

It can analysis: stainless steel, alloy steel, copper alloy, zinc alloy, tutania alloy, nickel alloy, titanium alloy, aluminium alloy(weightily element), it can also analyze Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, W, Hf, Ta, Re, Pb, Bi, Zr, Nb, Mo, Ag, Sn, Sb and other elements.

Metal flotsam reclaim and recycle: it can be used to reclaim disthrone metal. It can rapid determinant a great of complex kinds of metal alloy.

Can be applied in metal smelting, pressure vessel, power plant, petrochemical industry, fine chemical, pharmaceutical, aerospace and other industries. XRF3500 Handheld Alloy Analyzer secures the use of the alloy completely in accord with the design requirements for specification parts of the sample, ensures the quality of products and avoids mixing materials or use of unqualified materials, which could result in serious safety accidents. It is the instrument for choice of material quality system confirmation, semi-finished product inspection, and finished product review.

Scrap metal recycling and reuse

XRF3500 portable XRF metal analyzer can be used in scrap metal recycling and reusing industry test site fast analysis. Ensure that sufficient variety of alloy type and material to make rapid and reliable determination.

Example: alloy nameplate for 316L stainless steel samples. Analysis time for 10 seconds.

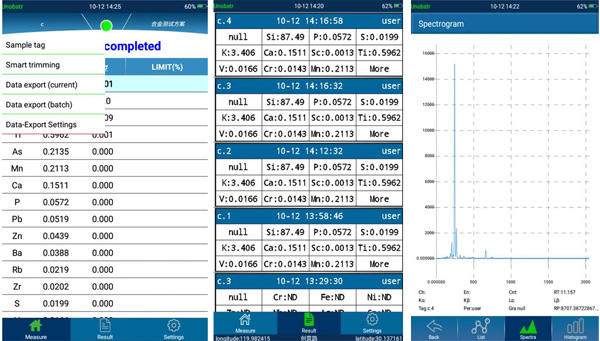

Analysis of spectrum



Curve of Fe

  Examples of stainless steel samples

Sample

Method

Fe%

Ni%

Cr%

Cu%

1#

Chemical

44.6

24.28

28.24

0.69

XRF

44.2

24.24

28.48

0.71

Error

-0.4

-0.04

0.24

0.02

2#

Chemical

69.7

4.16

24.10

0.060

XRF

69.5

4.13

24.15

0.048

Error

-0.2

-0.03

0.05

-0.012

3#

Chemical

64.6

19.90

11.59

3.12

XRF

64.7

19.67

11.61

3.14

Error

0.1

-0.23

0.02

0.02

 2. All kinds of metal ore composition analysis

Rapid detection of all kinds of ores from titanium (Ti) to uranium (U), such as copper, iron, lead, tungsten, vanadium ore, tin, molybdenum, takes 5-30 seconds to generate results.

A.   work curve of manganese ore

 Examples of results of Mn element

Sample

Method

Mn%

1#

Chemical

9.58

XRF

9.54

Error

-0.04

2#

Chemical

21.72

XRF

21.69

Error

-0.03

3#

Chemical

34.56

XRF

34.43

Error

-0.13

 B. work curve of copper

Examples of Cu element

Sample

Method

Cu%

1#

Chemical

1.47

XRF

1.42

Error

-0.05

2#

Chemical

8.28

XRF

8.36

Error

0.08

3#

Chemical

14.17

XRF

14.05

Error

-0.12

C. Tungsten ore dressing analysis

The tungsten content in tungsten ore dressing process can be quickly determined by XRF3500 Handheld Alloy Analyzer.

The test results are as follows:

Sample

Method

WO3%

24

Chemical

42.92

XRF

42.68

Error

-0.24

212

Chemical

47.88

XRF

48.03

Error

0.15

118

Chemical

42.68

XRF

43.01

Error

0.33

981

Chemical

31.66

XRF

32.10

Error

0.44

78

Chemical

47.00

XRF

47.01

Error

0.01

126

Chemical

55.40

XRF

55.71

Error

0.31

62

Chemical

43.42

XRF

43.90

Error

0.48

211

Chemical

12.56

XRF

12.82

Error

0.26

23

Chemical

14.46

XRF

14.57

Error

0.11

15

Chemical

12.72

XRF

12.80

Error

0.08

149

Chemical

15.30

XRF

15.53

Error

0.23

959

Chemical

9.38

XRF

9.41

Error

0.03

210

Chemical

22.18

XRF

21.97

Error

-0.21

739

Chemical

23.38

XRF

23.20

Error

-0.18
