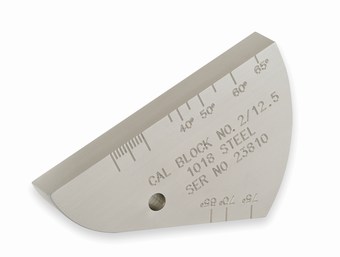

K2 Calibration Block

EN 27963, DIN 54-120, and ISO 7963 Standard

Feature

Small angle beam calibration block, 25 and 50 mm radii

Calibrate range with an angle beam transducer

Measure beam index point and refracted angle

Specification

12.5mm thick small calibration block for on-site checking of miniature shear wave probe index, time base, beam angle and gain.

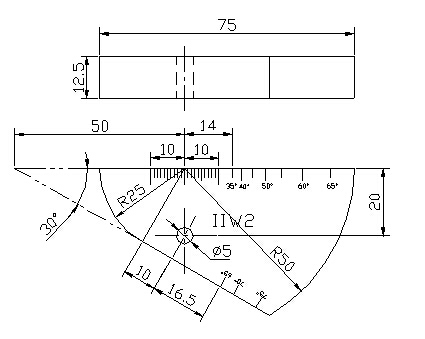

Includes a 25mm and 50 mm radius, 5.0mm hole, engraved reference mark scales from 35 to 75 degrees. In accordance with

EN 27963, DIN 54-120, and ISO 7963.

Dimensions: 75mm x 43mm x 12.5mm

Made from 1018 Steel, Nickel-plated.

Also available in 20mm, 25mm thickness for calibration of non-miniature probes.
