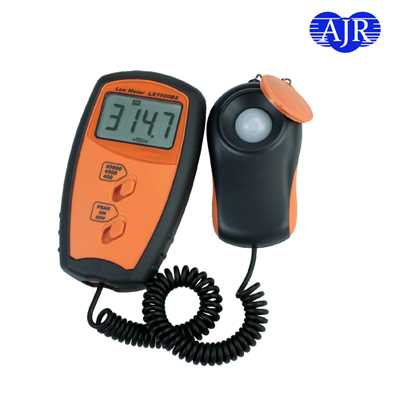

AJR LX-1020BS DIGITAL LUX METER
Features
Ø Precise and easy read out.
Ø High accuracy in measure.
Ø LSI-circuit use provides high reliability and durability.
Ø Support a wide range of light measurements.
Ø Low battery indicator.
Ø Adjust zero automatically and excellent operation.
Ø LCD display provides low power consumption and clear readout even in high ambient light.
Ø Separate LIGHT SENSOR allows user take measurements at on optimum position.
Specification
Display |
3 3/4 digits LCD, maximum reading value display 3999. |
Range |
0.1~40,000 Lux(3 Ranges) |
400 Lux range: reading |
|
4000 Lux range: reading |
|
40000 Lux range: reading x 10 |
|
Accuracy |
≤4,000Lux, ±(4%rdg+10digits) |
≥4,000Lux, ±(5%rdg+10digit) (Calibrated to standard incandescent lamp at color temperature 2856K) |
|
Resolution |
0.1Lux |
Repeatability |
± 2% |
Temperature Characteristic |
± 0.1%/℃ |
Sampling Time |
0.5 second |
Photo Detector |
one silicon photo diode with fliter |
Operation Temperature-humidity |
0 ℃ to 40 ℃ (32 F – 104F) 0 ~ 70% Rh |
Storage Temperature-humidity |
-10 ℃ to 50 ℃ (14 F – 122F) 0 ~ 80% Rh |
Over-input |
Indication of “OL” |
Dimensions |
130L x 72W x 30H(mm) Meter Body |
106L x 57W x 26H(mm) Photo detector |
|
Weight |
190g |
Power Supply |
One 9 V battery, Consumption current approx 2mA |

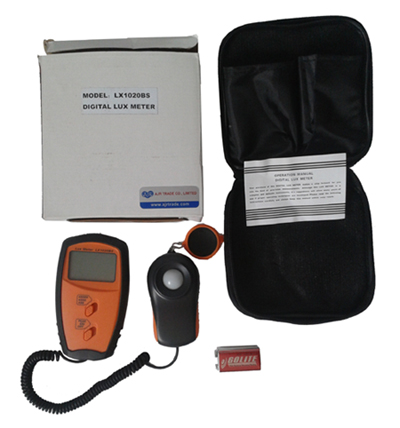

Accessories |
Instruction-manual, battery, carry bag. |
