AJR NDT Stationary Flood LED UV-A Lamp

Product Infomation
 Power energy - energy saving type.  The average service life of the light source – 30000h!  Good light uniformity.  Center UV-A light >3000uW/cm².  White light <20Lux.  Continuous working outside surface temperature<8K(18℃)  No UV-B/UV-C light.
  • Model:AJR UV-LED3000H
  • Specifications:UV intensity: 3000μw/cm2 at 15 inch (at 380mm)
  • Color:Black
  • Brand:AJR
Details

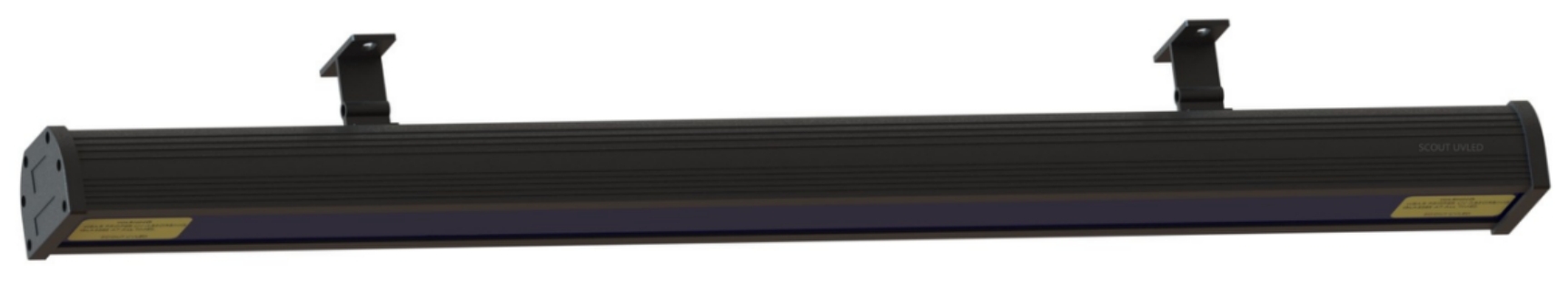

AJR UV-LED 3000H Hang Type Stationary Flood LED UV-A  LAMP

Characteristics

Power energy - energy saving type.

The average service life of the light source – 30000h!

Good light uniformity.

Center UV-A light >3000uW/cm².

White light <20Lux.

Continuous working outside surface temperature<8K(18℃)

No UV-B/UV-C light.

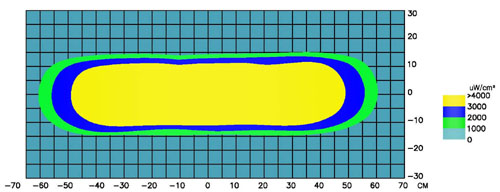

UV irradiation distribution map380mm

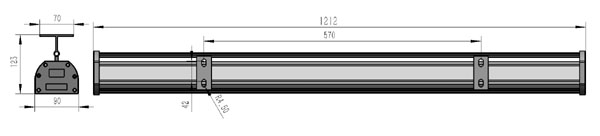

Outline Dimension Drawing(Unit: mm)


Parameters

Project

Parameters

Form

Hang type

UV(Light)-FLUX

Room temperature 25 380mm calibration

UV-LED3000H: 3000uW/cm²

The effective coverage area

380mm calibration

280*1200mm

Wavelength

Room temperature 25, 365nm±3nmUVA

UV-B / UV-C

No

FLUX Error

0-40  ±10

The light distribution characteristic

The light distribution center

Power source

AC220-240V, 50/60Hz

Power

UV LED-54VA

Overall dimensions

1212mm (W) x 90mm (D) x 123mm (H)

Weight

2.6kg

The above parameters is typical value. Parameters are subject to change without prior notice
