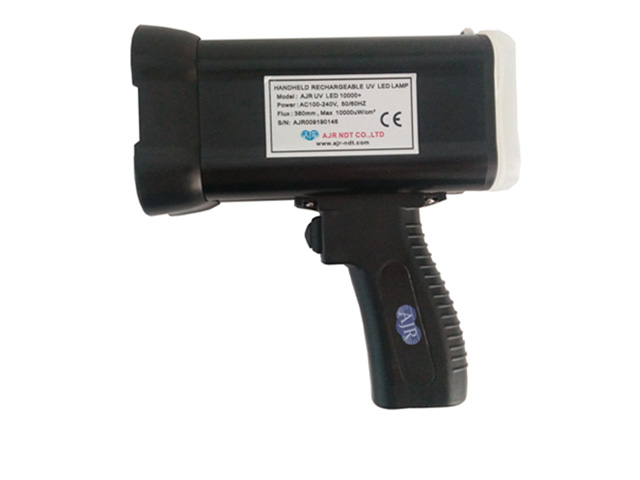

AJR UV-LED 4000+/6000+/8000+/10000+Handheld Rechargeable NDT UV LED Lamp

Product Infomation
Power energy - energy saving of only 9VA; The average service life of the light source – 30000h; The content of UV-B is 0; 5-6 hours of battery life; External without wiring; Quartz and optical glass module, non PMMA material, excellent weather resistance; Continuous working outside surface temperature<5K(5℃).
  • Model:AJR UV-LED4000+ / 6000+ / 8000+ / 10000+
  • Specifications:UV intensity: 4000 / 6000 / 8000 / 10000μw/cm2 at 15 inch (at 380mm)
  • Color:Black
  • Brand:AJR
Details

AJR UV-LED 4000+ / 6000+ / 8000+ / 10000+

Hand Held Rechargeable UV LED Lamp

 Characteristics

Power energy - energy saving of only 12VA

The average service life of the light source 30000h!

The content of UV-B is 0.

3-4 hours of battery life.

Quick replacement battery.

Including the weight of the battery less than 500 g.

External without wiring.

Continuous working outside surface temperature<5K(5℃)



Outline dimension drawing





Unit: mm

Parameters

Project

Parameter / way

Form

Handheld type

UV(Light)-FLUX

Room temperature 25 380mm calibration

UV-LED4000+:4000uW/cm²

UV-LED6000+:6000uW/cm² ; White Light: MAX1500LUX

UV-LED8000+:>8000uW/cm² White Light: MAX1500LUX

UV-LED10000+:10000uW/cm²White Light: MAX1500LUX

The effective coverage area

380mm calibration

Diameter of about 300mm

Wavelength

Room temperature 25    365nm±3nmUVA

FLUX Error

0-40  ±10

The light distribution characteristic

The light distribution center

Power source

AC100-240V   50/60Hz

Power

UV LED-12VA

Overall dimensions

137mmW*72mmD*176mmH

Weight

498g

The charging time

2-3H

Battery capacity

2200mA/H 12.6V

Battery life (total time)

UV LED  2-3H

The above parameters is typical value. Parameters are subject to change without prior notice
